UPPER PART - (710.602.000)
×
![]()
Part Of the Series: Upper part-Vinyl-232
Type no.: 710.602.000
EAN no.: 5705499108408
NRF no.: 3396301
LVI no.: 3303817
Size: Ø232

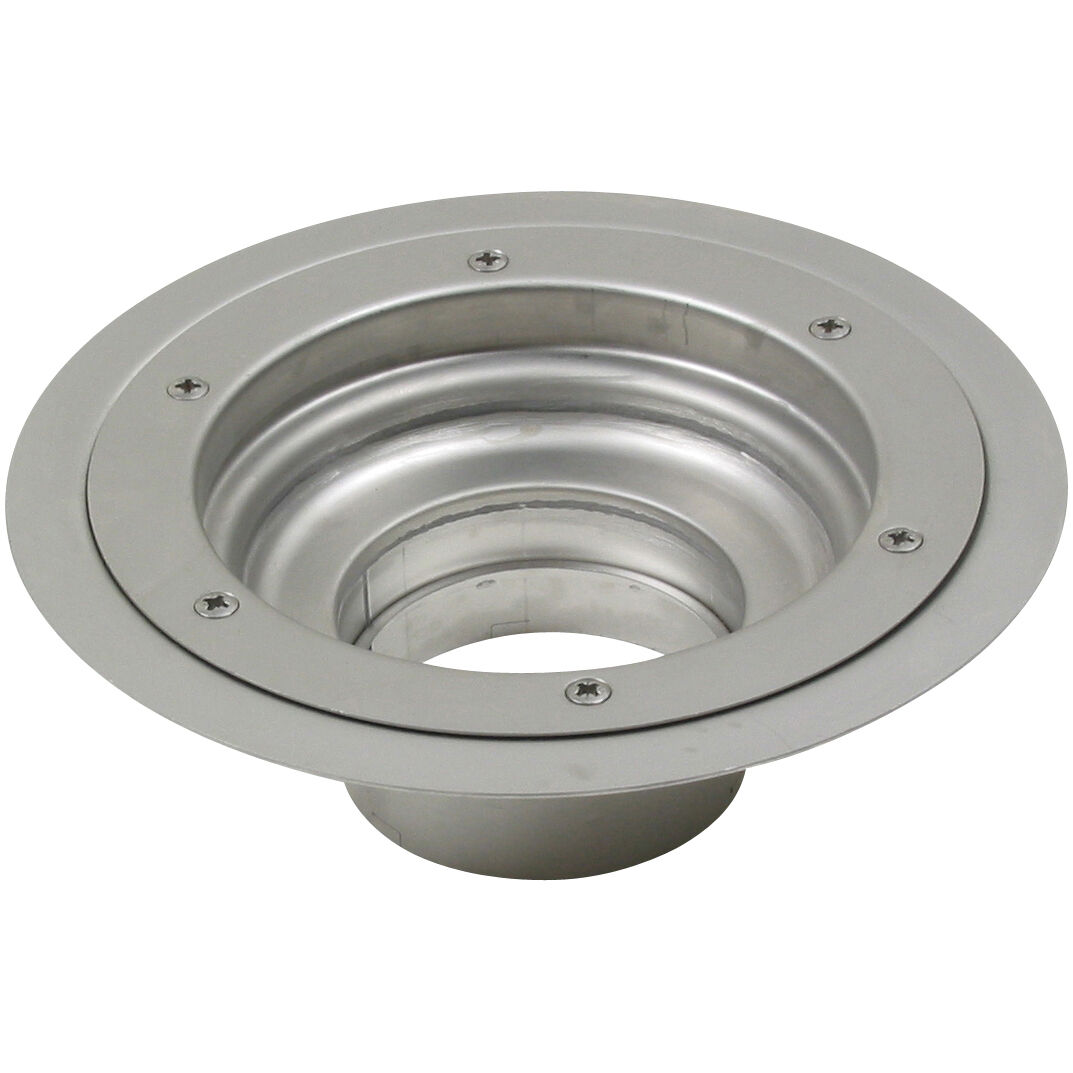

UPPER PART
-With supporting ring for water trap
-Floor: vinyl
-Frame: Ø232mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Vinyl |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 95 |
| Number of Screw Holes | 0 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Shape | Round |
| Size (Inch) | Ø9⅛ |
| Size (mm) | Ø232 |
| Weight (kg) | 1,39 |
| Weight (lbs) | 3,06 |
-
