MEMBRANE CLAMPING FLANGE - (325.302.000)
×
![]()
Part Of the Series: Intermediate section
Type no.: 325.302.000
EAN no.: 5705499107920
LVI no.: 3303861

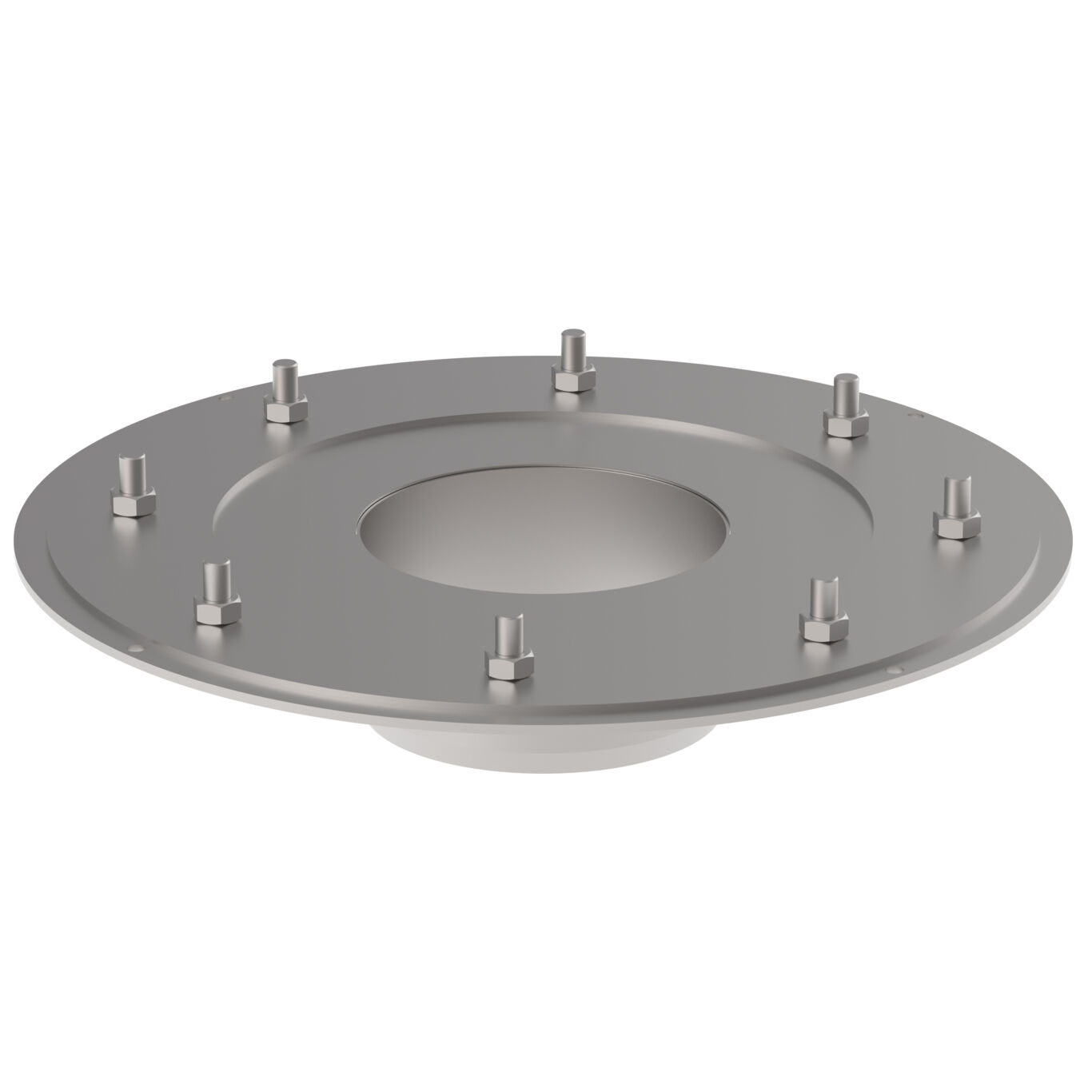

MEMBRANE CLAMPING FLANGE
-For lower part
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic|Industrial |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |

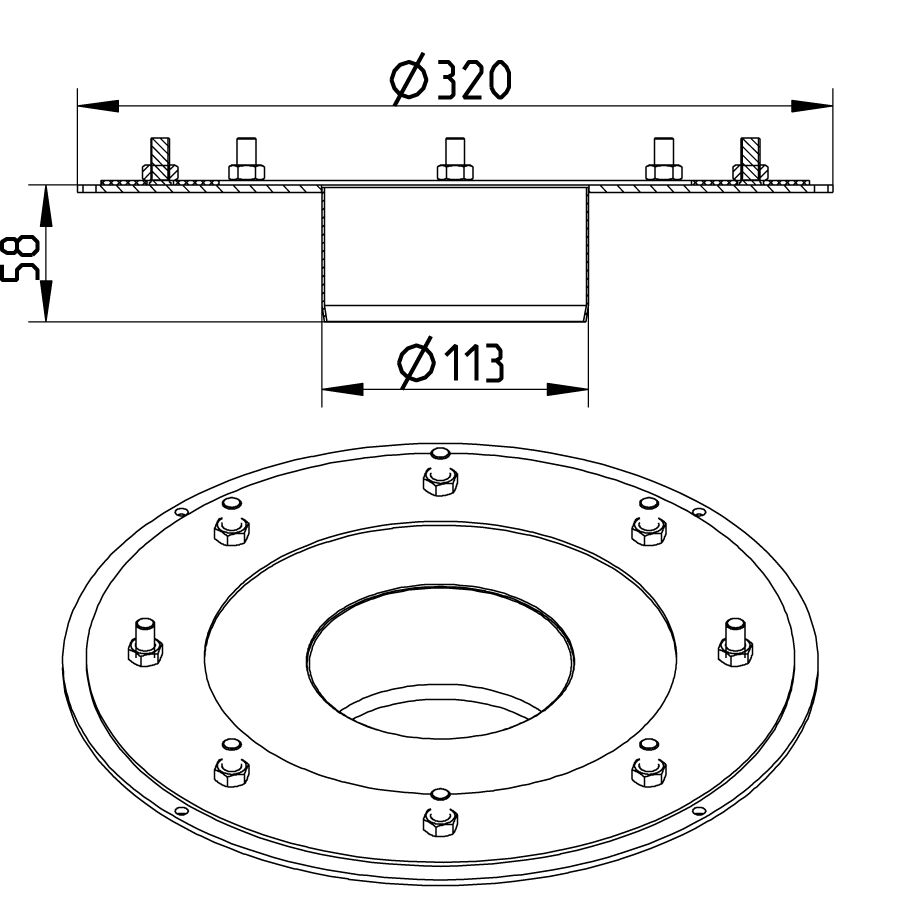

| Minimum Height (mm) | 58 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 113 |
| Weight (kg) | 0,50 |
| Weight (lbs) | 1,1 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
