INDUSTRIAL DRAIN - (760.502.110 S)
×
![]()
Part Of the Series: Drain-No membrane-205
Type no.: 760.502.110 S
EAN no.: 5705499109535
VVS no.: 153001116
LVI no.: 3303524
Size: Ø205

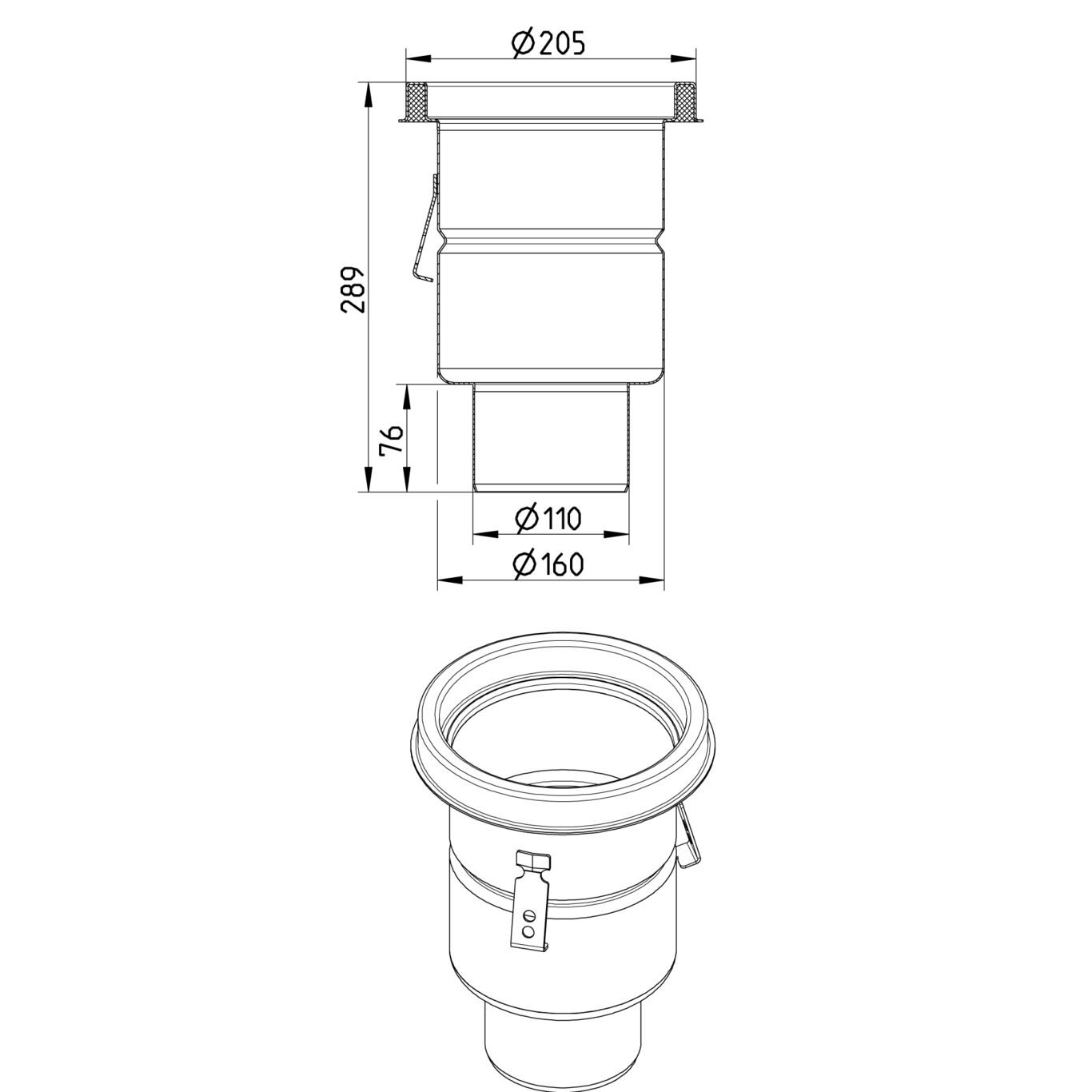

INDUSTRIAL DRAIN
-Floor: resin
-Frame: Ø205mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Adjustable | No |
| Field of Application | Industrial |
| Floor | Resin |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 289 |
| Number of Inlets | 0 |
| Number of inlets (Inch) | 0 |
| Number of Screw Holes | 0 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Shape | Round |
| Size (Inch) | Ø8⅛ |
| Size (mm) | Ø205 |
| Weight (kg) | 2,46 |
| Weight (lbs) | 5,42 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
