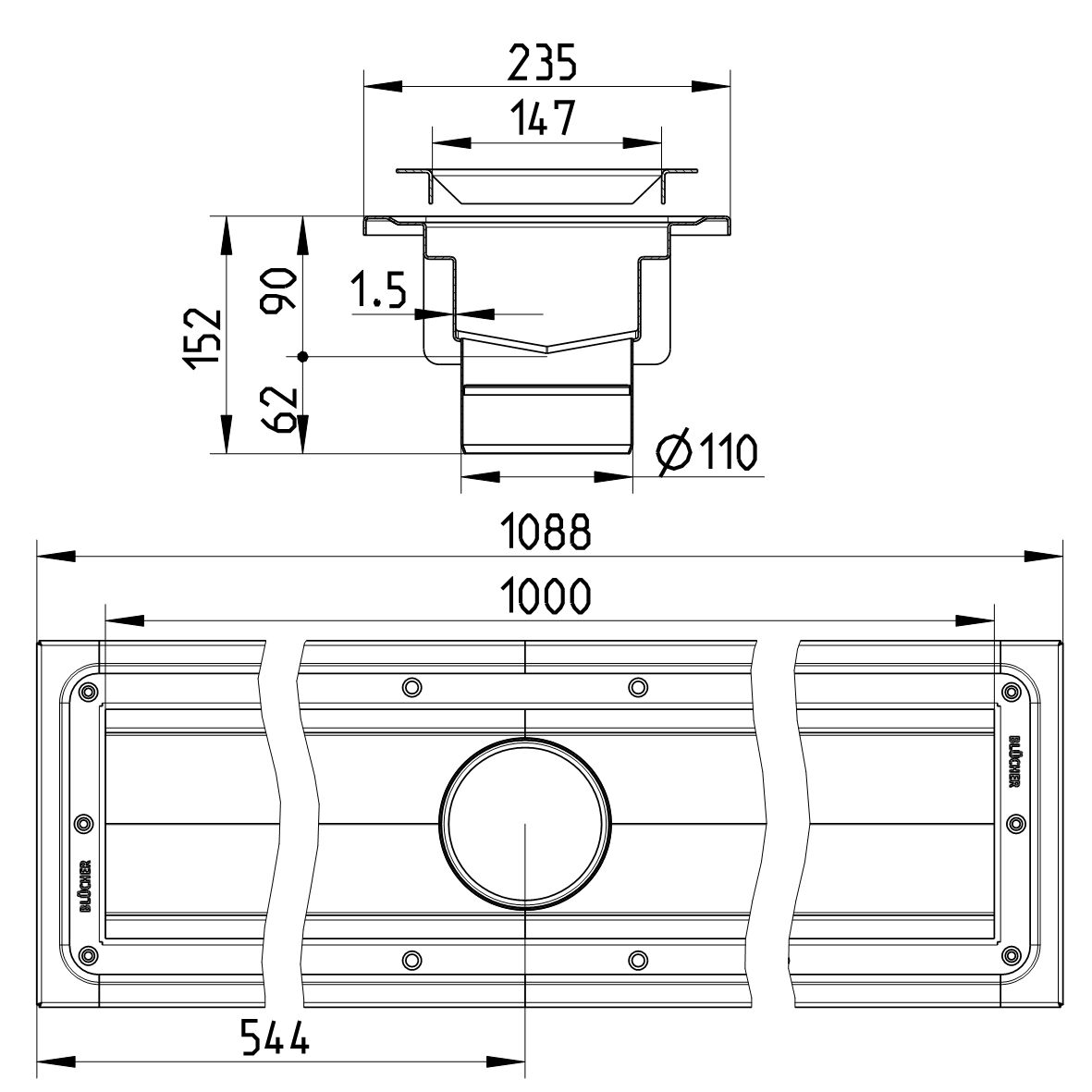

CHANNEL 150x1000 CENTER OUTLET - (672CH010-05BA)
×
![]()
Part Of the Series: Channel-Vinyl
Type no.: 672CH010-05BA
EAN no.: 5705499130140
NRF no.: 3397087
Size: 150x1000
CHANNEL 150x1000 CENTER OUTLET
-Floor: vinyl
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Vinyl |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 152 |
| Outlet Box | No |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Outlet Placement | Center |
| Shape | Rectangular |
| Size (Inch) | 5⅞x39⅜ |
| Size (mm) | 150x1000 |
| Weight (kg) | 6,93 |
| Weight (lbs) | 15,28 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Europe
US - NSF
AUS - WMKT00204 - 24
NO - PS3079-21 Lloyds Register LR22419510TA_02 PL - Hygienic Certificate - All Products US - NSF/ANSI/3-A 14159-1-Meat and Poultry ABS - 23-2329630-PDA DNV - TAP0000023-rev5, Sanitary discharge pipes
