HYGIENICPRO GRATING CHANNEL - (697.250.150.50)
×
![]()
Part Of the Series: Grating-Channel-150
Type no.: 697.250.150.50
EAN no.: 5705499117868
VVS no.: 155086050
RSK no.: 7122094
NRF no.: 3397182
LVI no.: 3304965
Size: 150x500
HYGIENICPRO GRATING CHANNEL

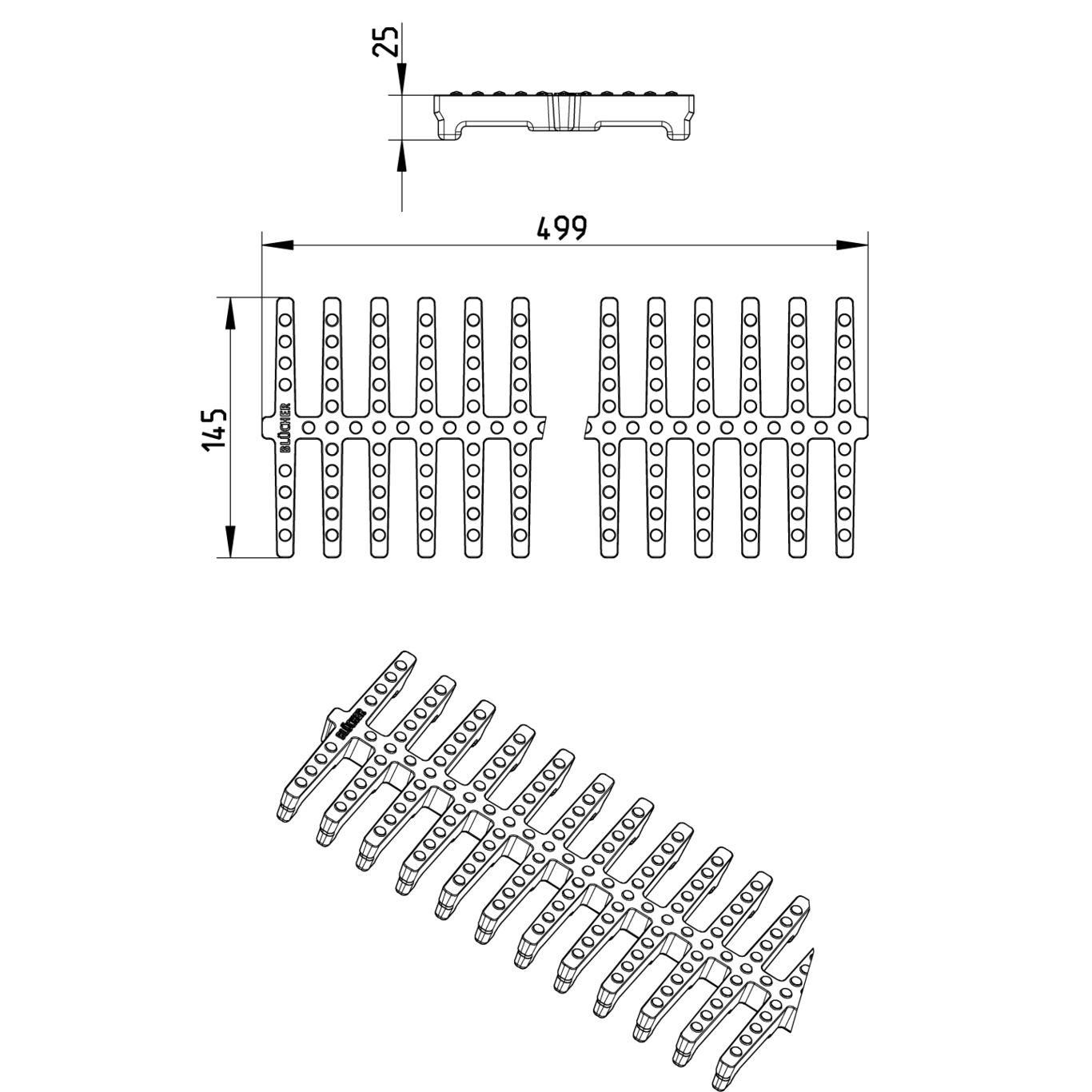

-Grating: 145x499mm
-Stainless steel: AISI304C/EN1.4308
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | M125 |
| Load Class EN1253 (kg) | M125 (10000) |
| Load class EN1253(lbs) | M125 (22046) |
| Load Class EN1433 | C250 |
| Load Class EN1433 (kg) | C250 (16.666) |
| Load class EN1433(lbs) | C250 (36742) |
| Material | AISI 304C |
| Material (EN) | EN 1.4308 |
| Minimum Height (mm) | 25 |
| Non-slip | R10 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (Inch) | 5⅞x19⅝ |
| Size (mm) | 150x500 |
| Weight (kg) | 4,68 |
| Weight (lbs) | 10,32 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
