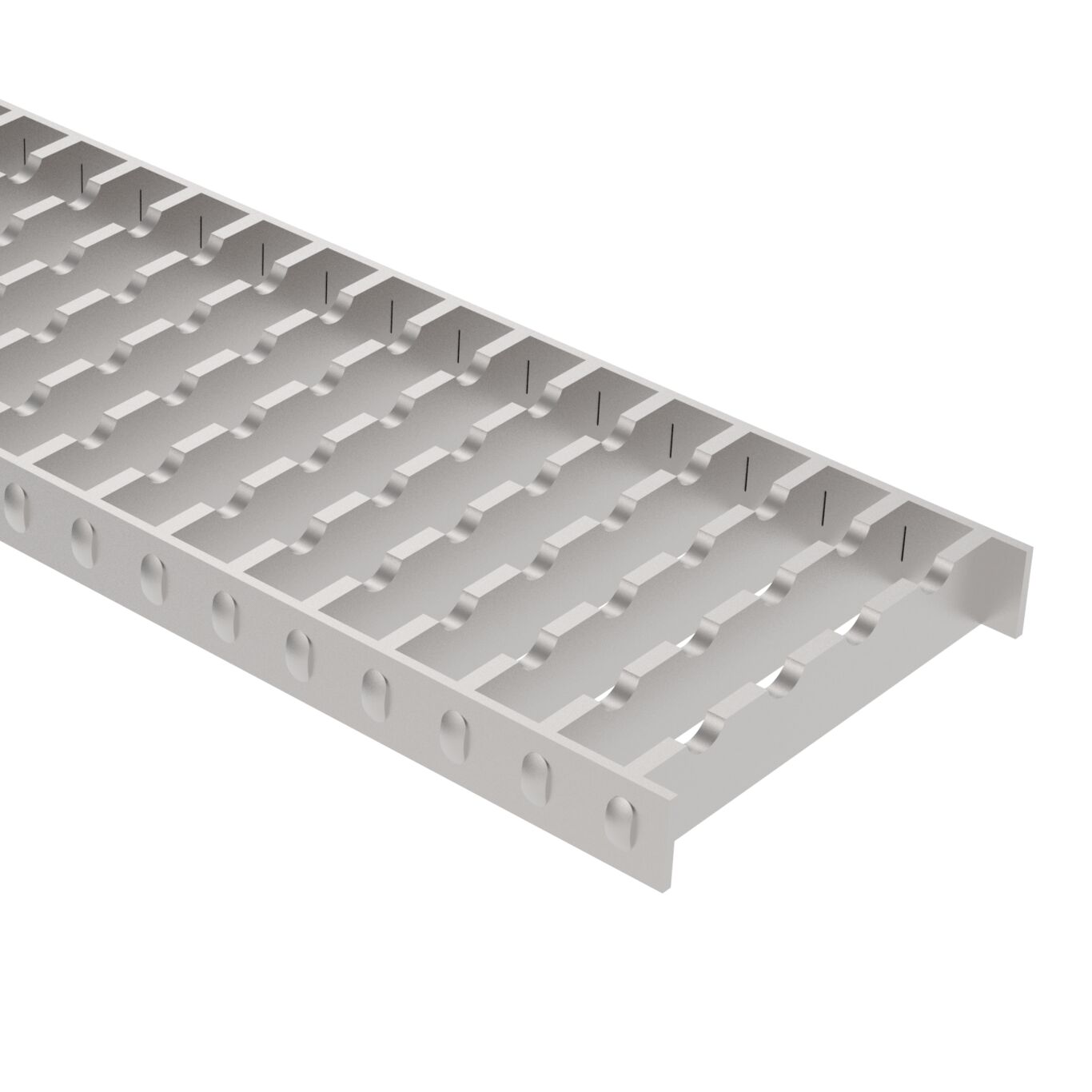

LADDER GRATING CHANNEL - (697.125.150.50)
×
![]()
Part Of the Series: Grating-Channel-150
Type no.: 697.125.150.50
EAN no.: 5705499103465
VVS no.: 154255015
NRF no.: 3397162
Size: 150x500

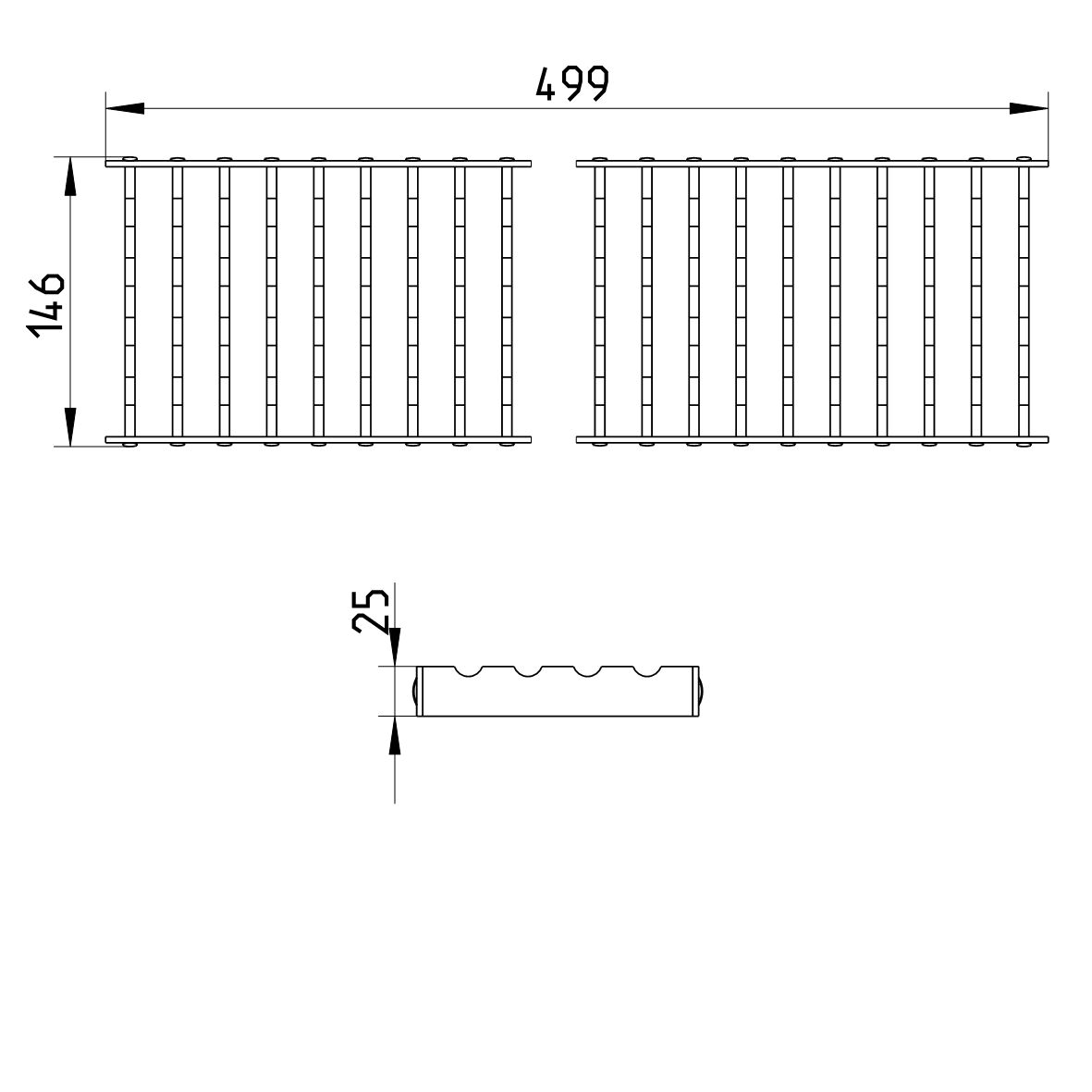

LADDER GRATING CHANNEL
-25mm height
-Grating: 145x499mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load class ASME A112.6.3 (lbs) | Special Duty (10,500) |
| Load Class EN1253 | M125 |
| Load Class EN1253 (kg) | M125 (10000) |
| Load class EN1253(lbs) | M125 (22046) |
| Load Class EN1433 | C250 |
| Load Class EN1433 (kg) | C250 (20.000) |
| Load class EN1433(lbs) | C250 (44092) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non-slip | R11 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (Inch) | 5⅞x19⅝ |
| Size (mm) | 150x500 |
| Weight (kg) | 3,30 |
| Weight (lbs) | 7,28 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
