SLOT GRATING CHANNEL - (697.200.150.99)
×
![]()
Part Of the Series: Grating-Channel-150
Type no.: 697.200.150.99
EAN no.: 5705499115499
NRF no.: 3397172
Size: 150x1000

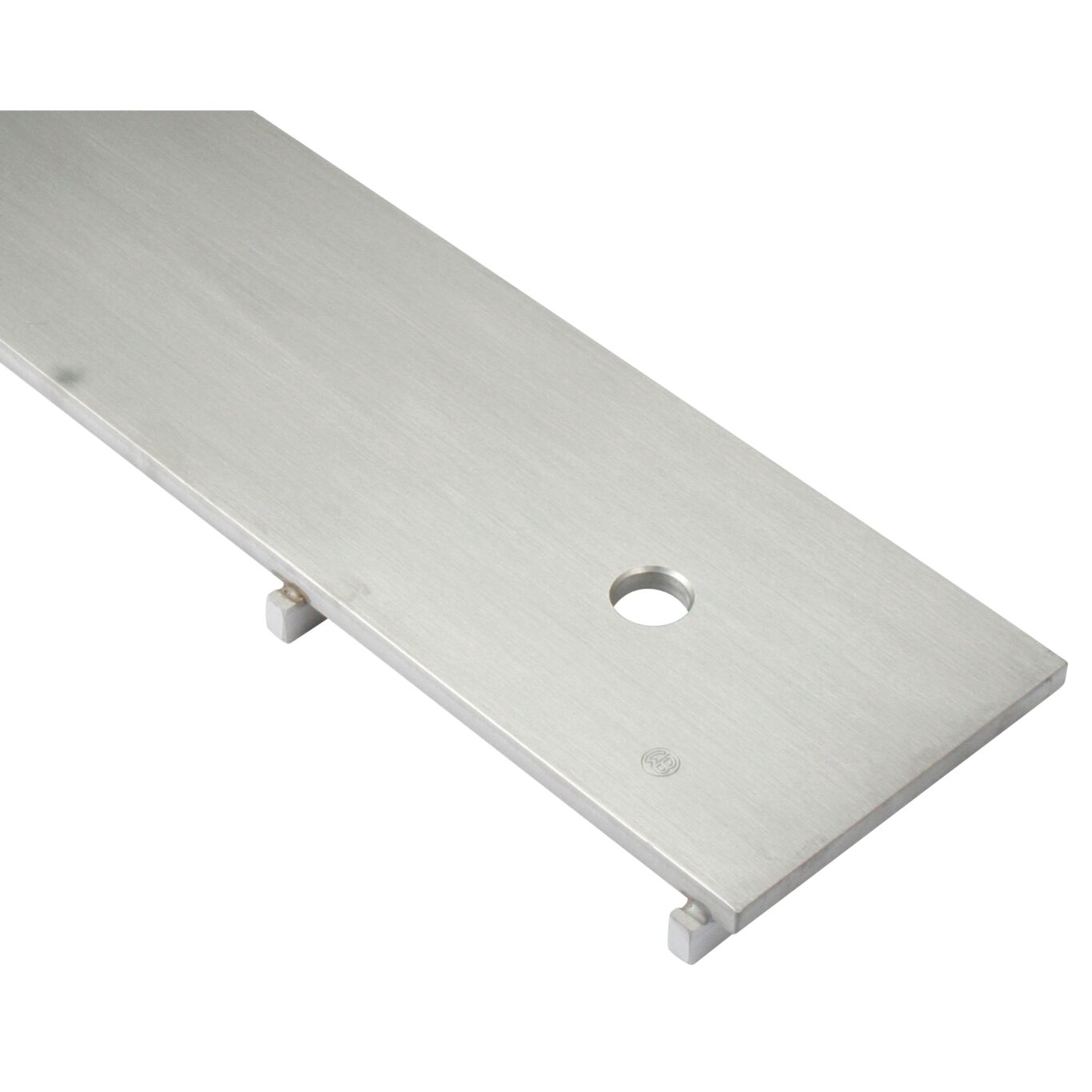

SLOT GRATING CHANNEL

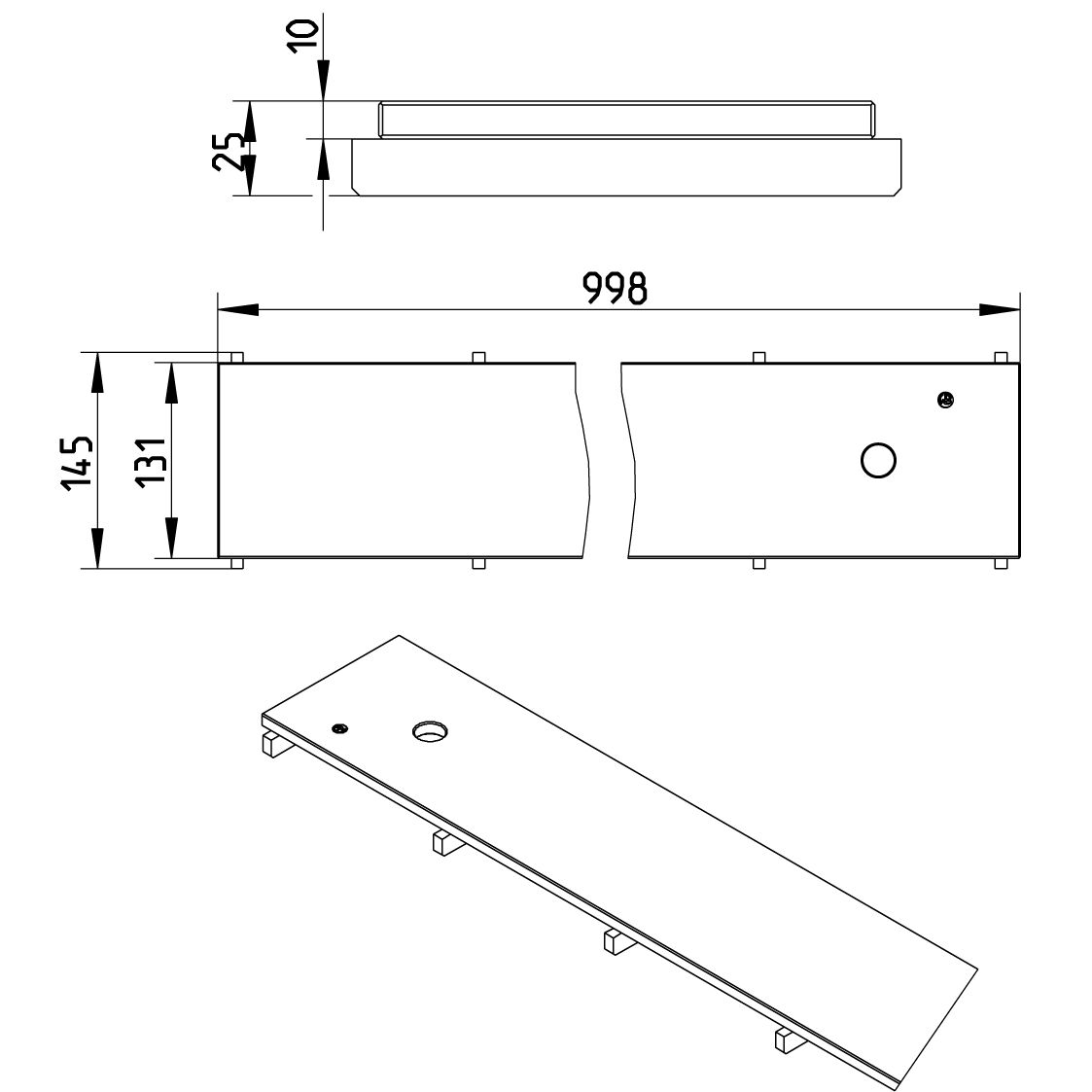

-Grating: 145x998mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load class ASME A112.6.3 (lbs) | Extra Heavy Duty (8,608) |
| Load Class EN1253 | M125 |
| Load Class EN1253 (kg) | M125 (14000) |
| Load class EN1253(lbs) | M125 (30865) |
| Load Class EN1433 | C250 |
| Load Class EN1433 (kg) | C250 (20.000) |
| Load class EN1433(lbs) | C250 (44092) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non-slip | R10 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (Inch) | 5⅞x39⅜ |
| Size (mm) | 150x1000 |
| Weight (kg) | 11,24 |
| Weight (lbs) | 24,78 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
