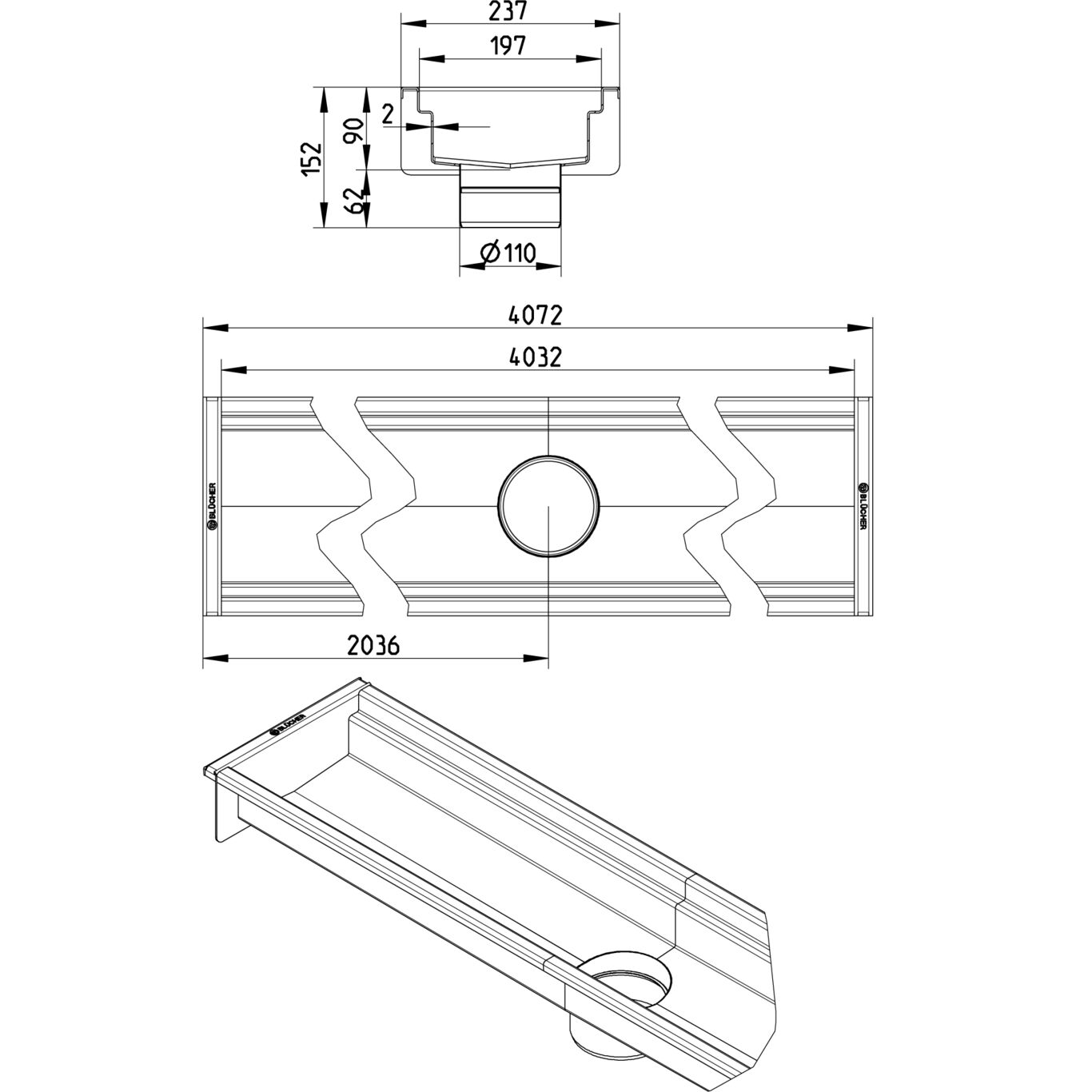

CHANNEL 200x4000 CENTER OUTLET - (670DH040-20BA)

Part Of the Series: Channel-No membrane

Type no.: 670DH040-20BA

EAN no.: 5705499129618

Size: 200x4000

Product Specification
Field of Application Industrial
Floor Concrete / Tiled / Resin
Material AISI 304
Material (EN) EN 1.4301
Membrane Type No Membrane
Minimum Height (mm) 152
Outlet Box No
Outlet dia. (Inch) 4
Outlet Diameter (mm) 110
Outlet Direction Vertical
Outlet Placement Center
Shape Rectangular
Size (Inch) 7⅞x157½
Size (mm) 200x4000
Weight (kg) 26,68
Weight (lbs) 58,82
