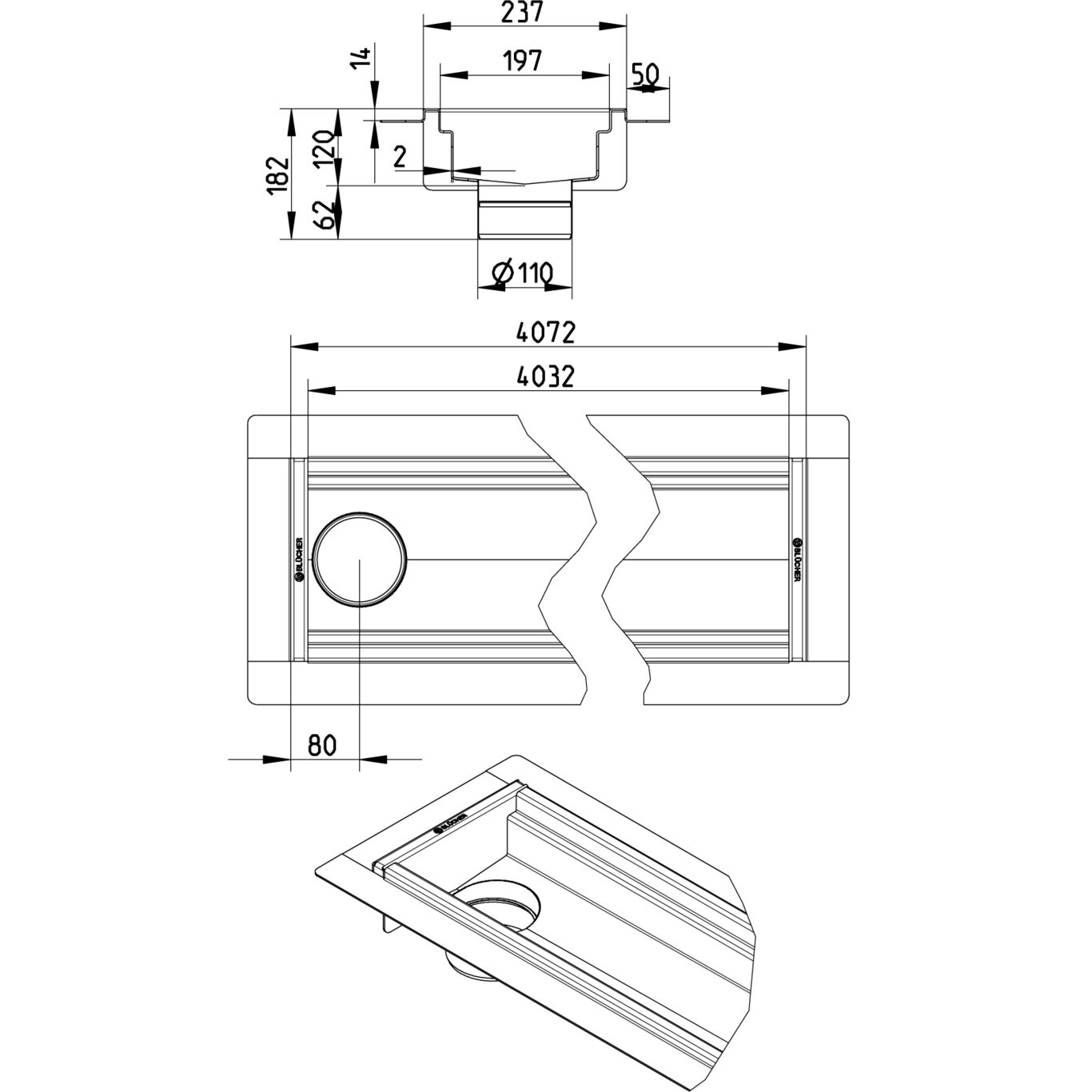

CHANNEL 200x4000 END OUTLET - (674DH040-00BA)
×
![]()
Part Of the Series: Channel-Liquid membrane
Type no.: 674DH040-00BA
EAN no.: 5705499131017
Size: 200x4000
CHANNEL 200x4000 END OUTLET
-Floor: concrete, tiled and resin
-Liquid membrane
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Liquid Membrane |
| Minimum Height (mm) | 182 |
| Outlet Box | No |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Outlet Placement | End |
| Shape | Rectangular |
| Size (Inch) | 7⅞x157½ |
| Size (mm) | 200x4000 |
| Weight (kg) | 38,00 |
| Weight (lbs) | 83,78 |
-
