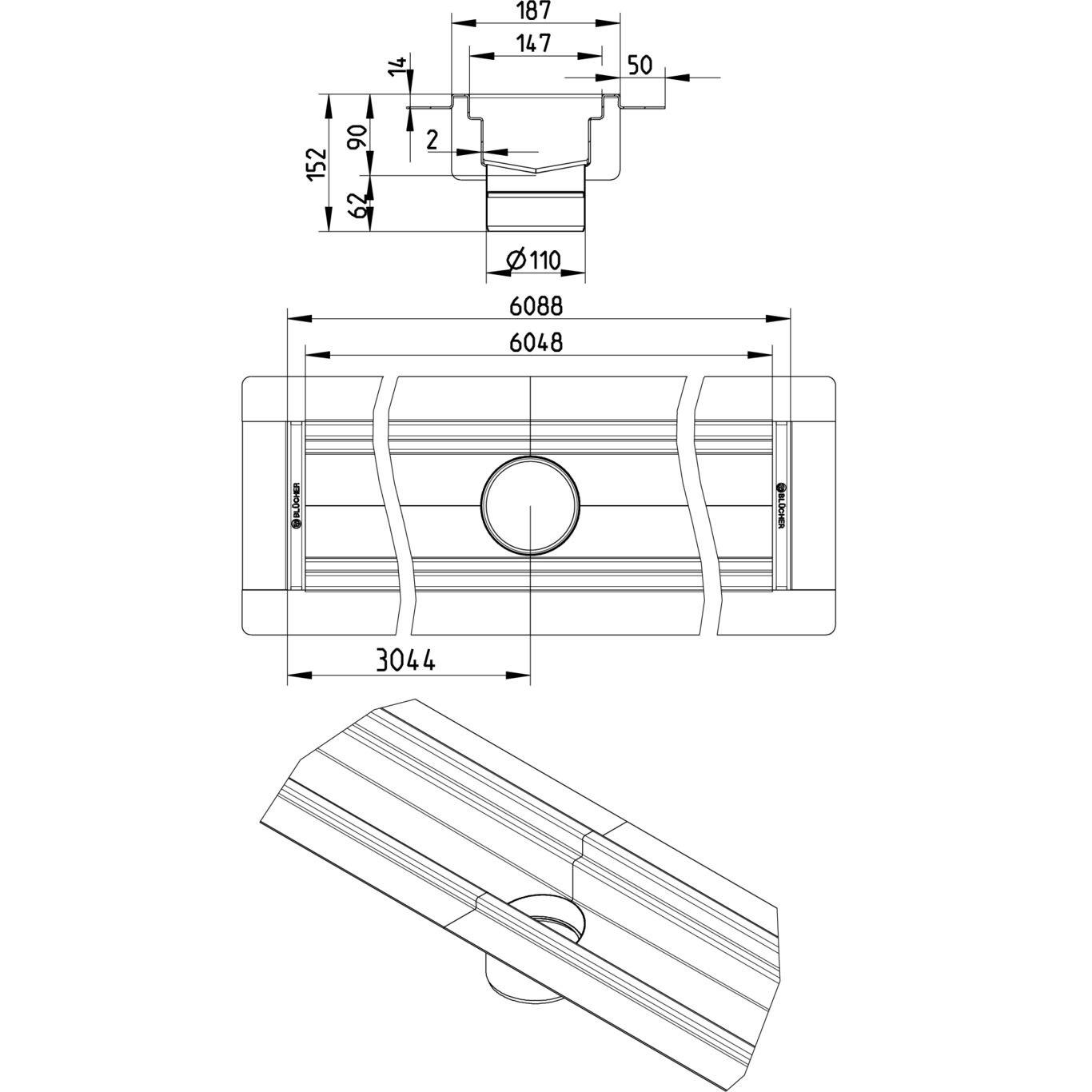

CHANNEL 150x6000 CENTER OUTLET - (674CH060-30BA)

Part Of the Series: Channel-Liquid membrane

Type no.: 674CH060-30BA

EAN no.: 5705499130928

NRF no.: 3397129

Size: 150x6000

Product Specification
Field of Application Industrial
Floor Concrete / Tiled / Resin
Material AISI 304
Material (EN) EN 1.4301
Membrane Type Liquid Membrane
Minimum Height (mm) 152
Outlet Box No
Outlet dia. (Inch) 4
Outlet Diameter (mm) 110
Outlet Direction Vertical
Outlet Placement Center
Shape Rectangular
Size (Inch) 5⅞x236¼
Size (mm) 150x6000
Weight (kg) 43,24
Weight (lbs) 95,33
