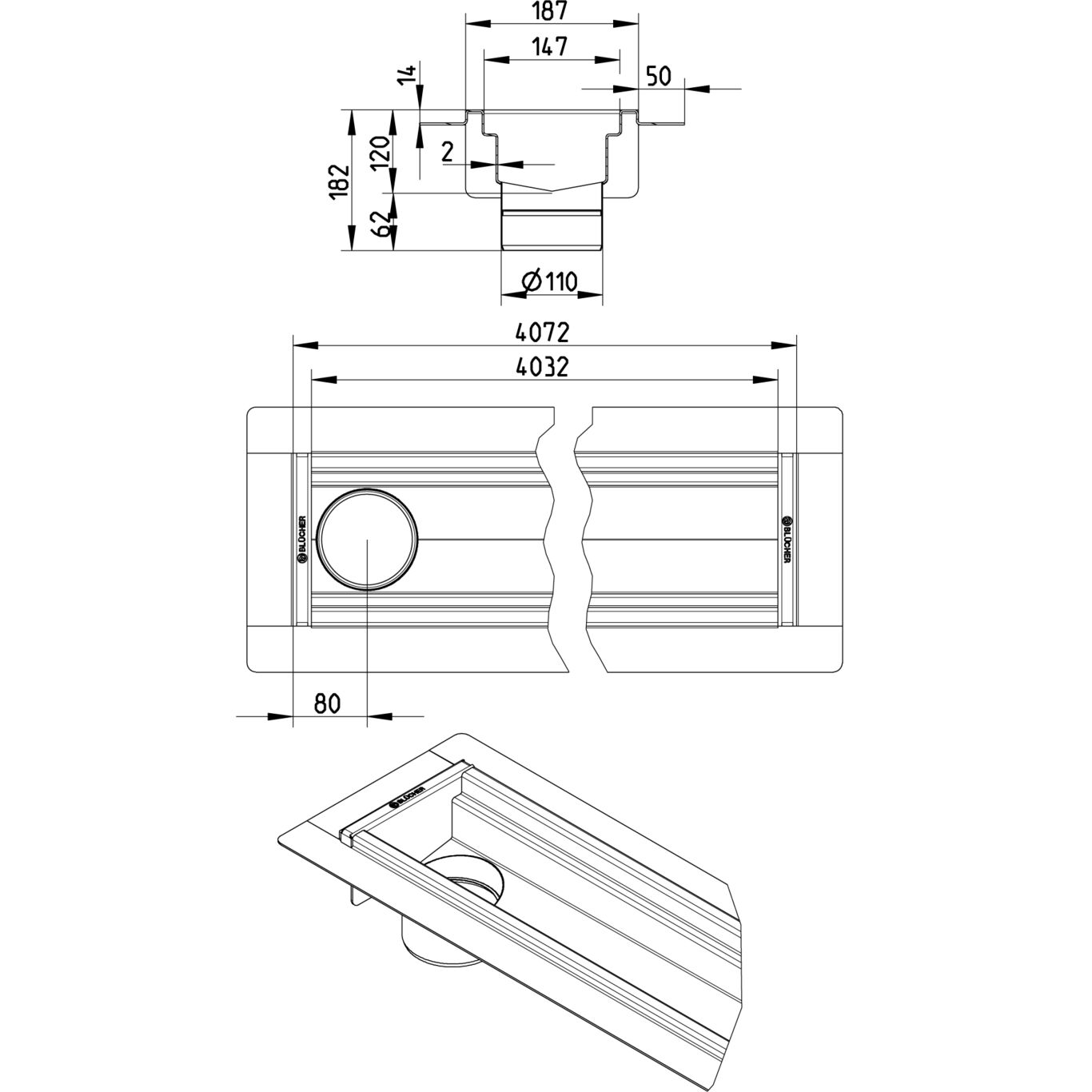

CHANNEL 150x4000 END OUTLET - (674CH040-00BA)
×
![]()
Part Of the Series: Channel-Liquid membrane
Type no.: 674CH040-00BA
EAN no.: 5705499130874
NRF no.: 3397124
Size: 150x4000
CHANNEL 150x4000 END OUTLET
-Floor: concrete, tiled and resin
-Liquid membrane
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Liquid Membrane |
| Minimum Height (mm) | 182 |
| Outlet Box | No |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Outlet Placement | End |
| Shape | Rectangular |
| Size (Inch) | 5⅞x157½ |
| Size (mm) | 150x4000 |
| Weight (kg) | 31,10 |
| Weight (lbs) | 68,56 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
