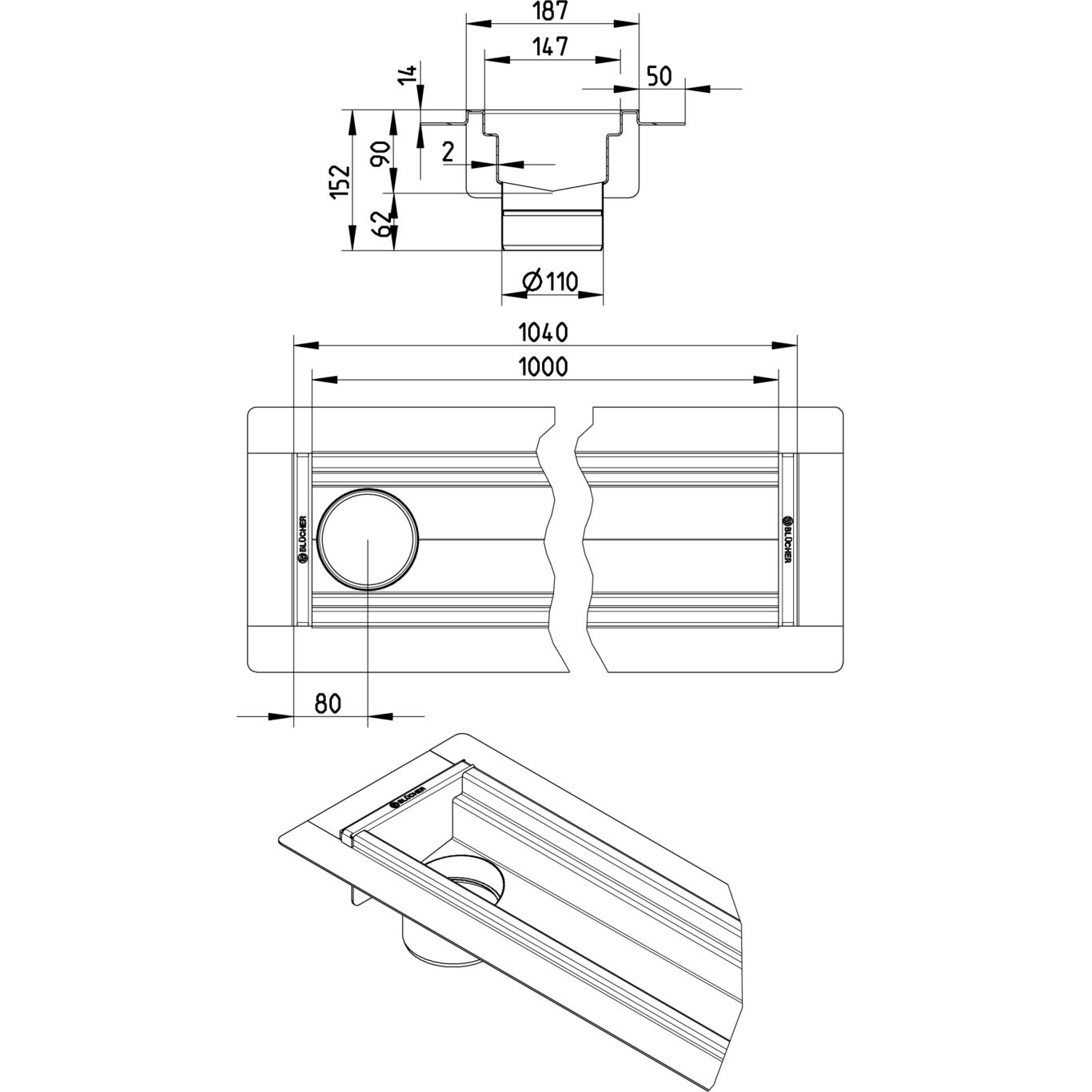

CHANNEL 150x1000 END OUTLET - (674CH010-00BA)
×
![]()
Part Of the Series: Channel-Liquid membrane
Type no.: 674CH010-00BA
EAN no.: 5705499131758
RSK no.: 7121792
NRF no.: 3397112
LVI no.: 3304939
Size: 150x1000
CHANNEL 150x1000 END OUTLET
-Floor: concrete, tiled and resin
-Liquid membrane
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Liquid Membrane |
| Minimum Height (mm) | 152 |
| Outlet Box | No |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Outlet Placement | End |
| Shape | Rectangular |
| Size (Inch) | 5⅞x39⅜ |
| Size (mm) | 150x1000 |
| Weight (kg) | 8,43 |
| Weight (lbs) | 18,58 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
