LOWER PART FOR ROOF DRAIN - (401.004.050)
×
![]()
Part Of the Series: Lower part-bitumen
Type no.: 401.004.050
EAN no.: 5705499132922
VVS no.: 164120050
RSK no.: 5173710
LVI no.: 3384515

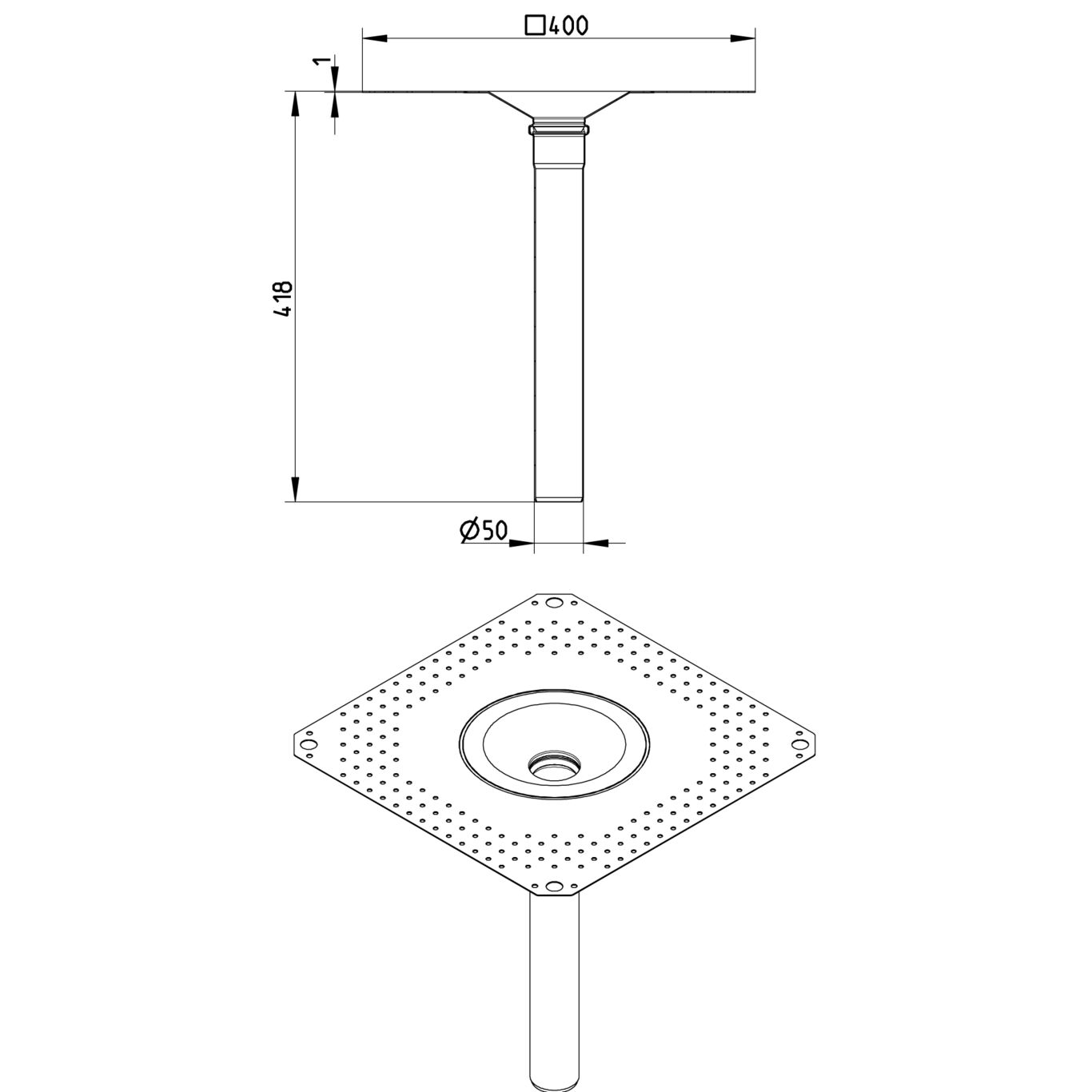

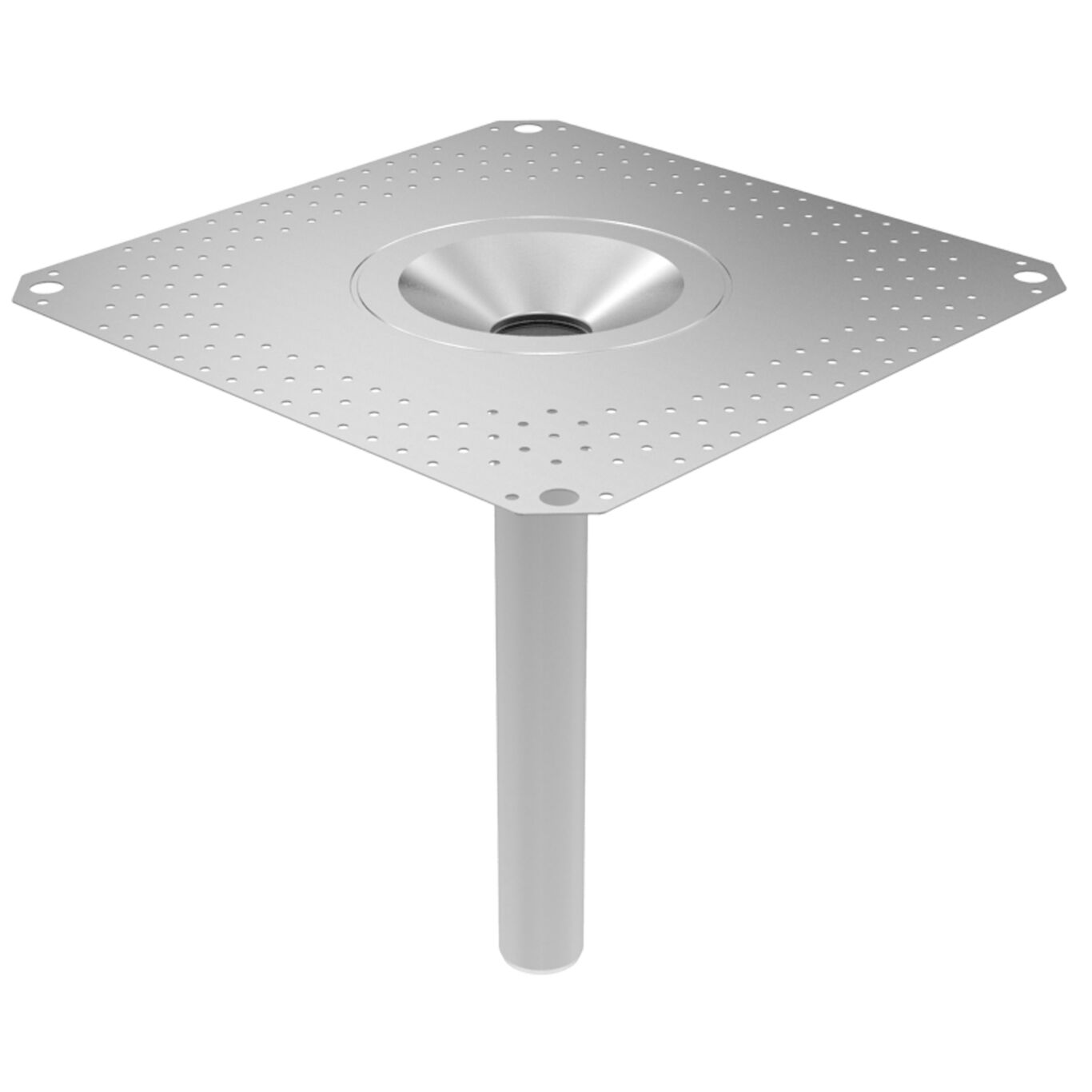

LOWER PART FOR ROOF DRAIN
-Roof: bitumen
-Flange: 400x400mm
-Outlet: Ø50mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 418 |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Vertical |
| Roof | Bitumen |
| Weight (kg) | 1,34 |
| Weight (lbs) | 2,95 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
