LOWER PART FOR ROOF DRAIN - (403.004.050)
×
![]()
Part Of the Series: Lower part-bitumen
Type no.: 403.004.050
EAN no.: 5705499141443
VVS no.: 164122050

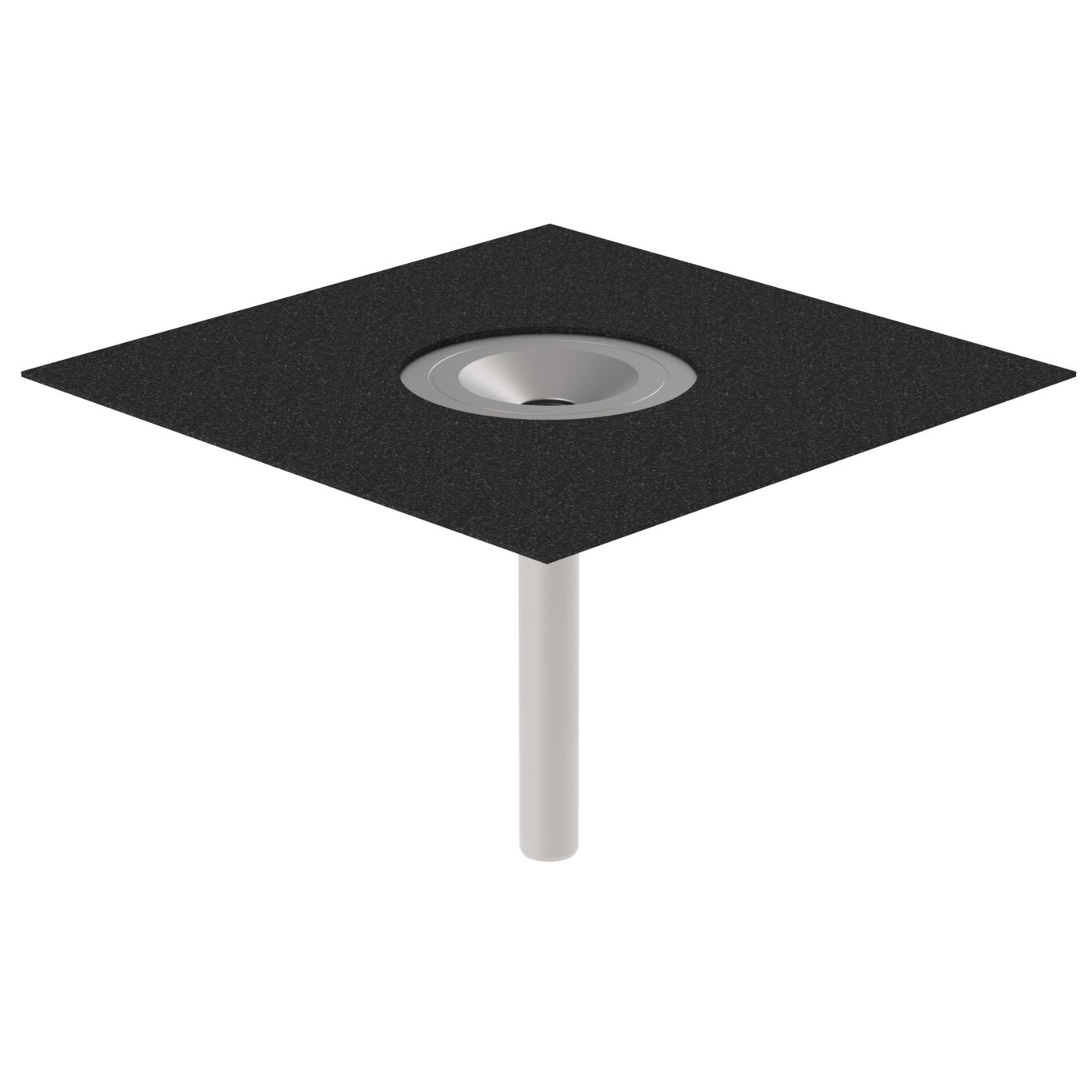

LOWER PART FOR ROOF DRAIN
-With pre-mounted bitumen collar
-Roof: Bitumen

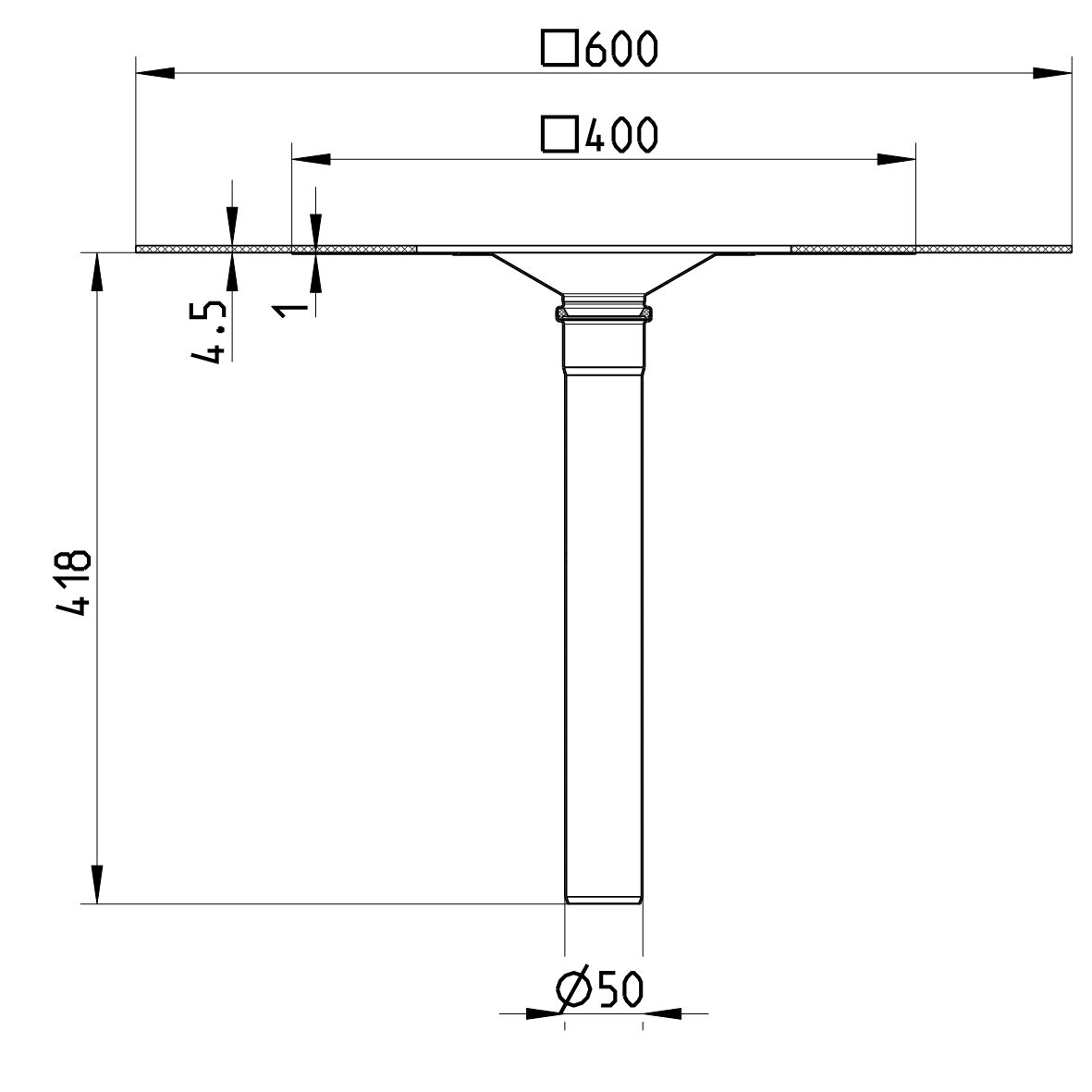

-Flange: 400x400mm
-Outlet: Ø50mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 418 |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Vertical |
| Roof | Bitumen |
| Weight (kg) | 3,32 |
| Weight (lbs) | 7,32 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
