ROOF DRAIN FOR SIPHONIC - (402.200.040)
×
![]()
Part Of the Series: Drain for siphonic-single ply membrane
Type no.: 402.200.040
EAN no.: 5705499141313
VVS no.: 164111540

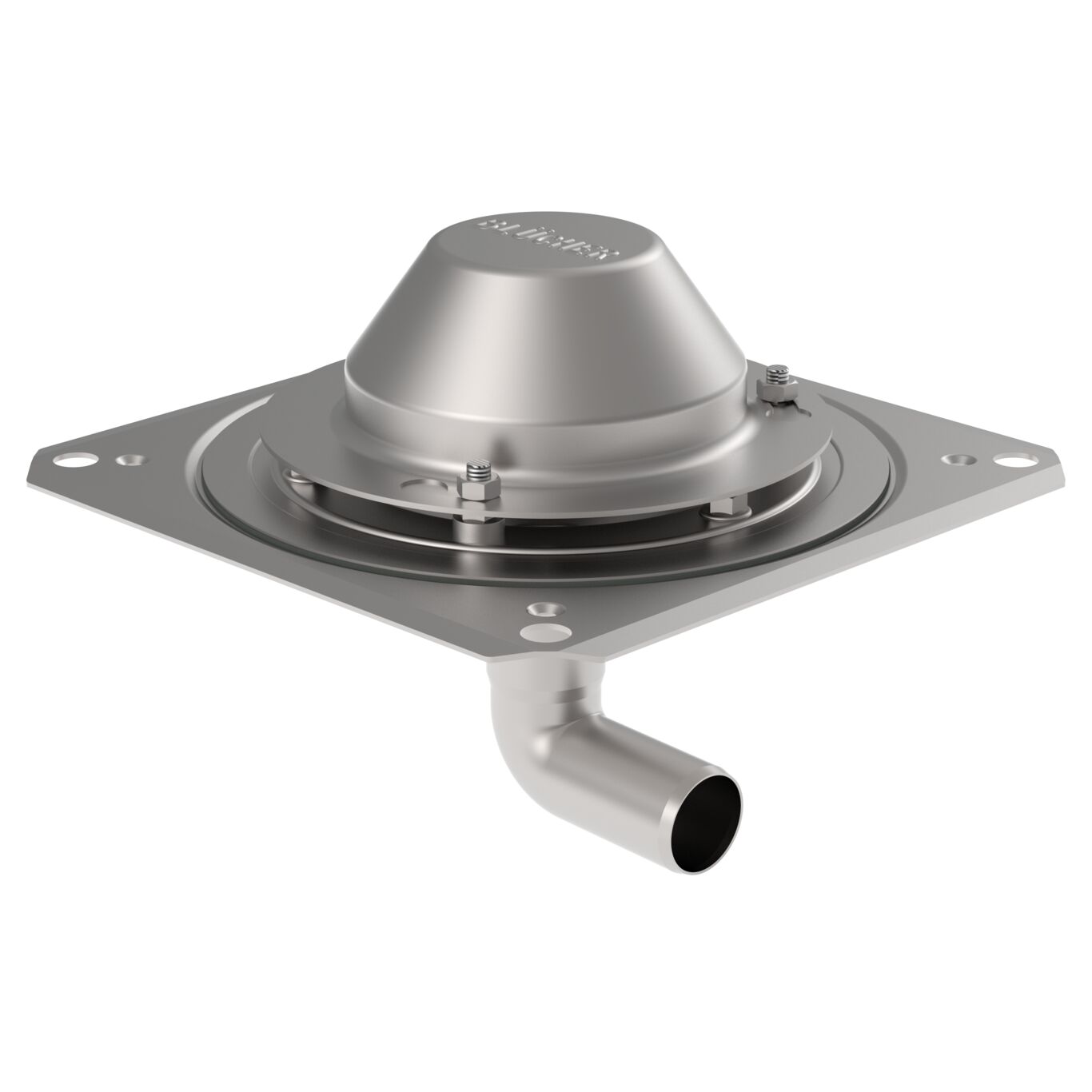

ROOF DRAIN FOR SIPHONIC
-Roof: single ply membrane

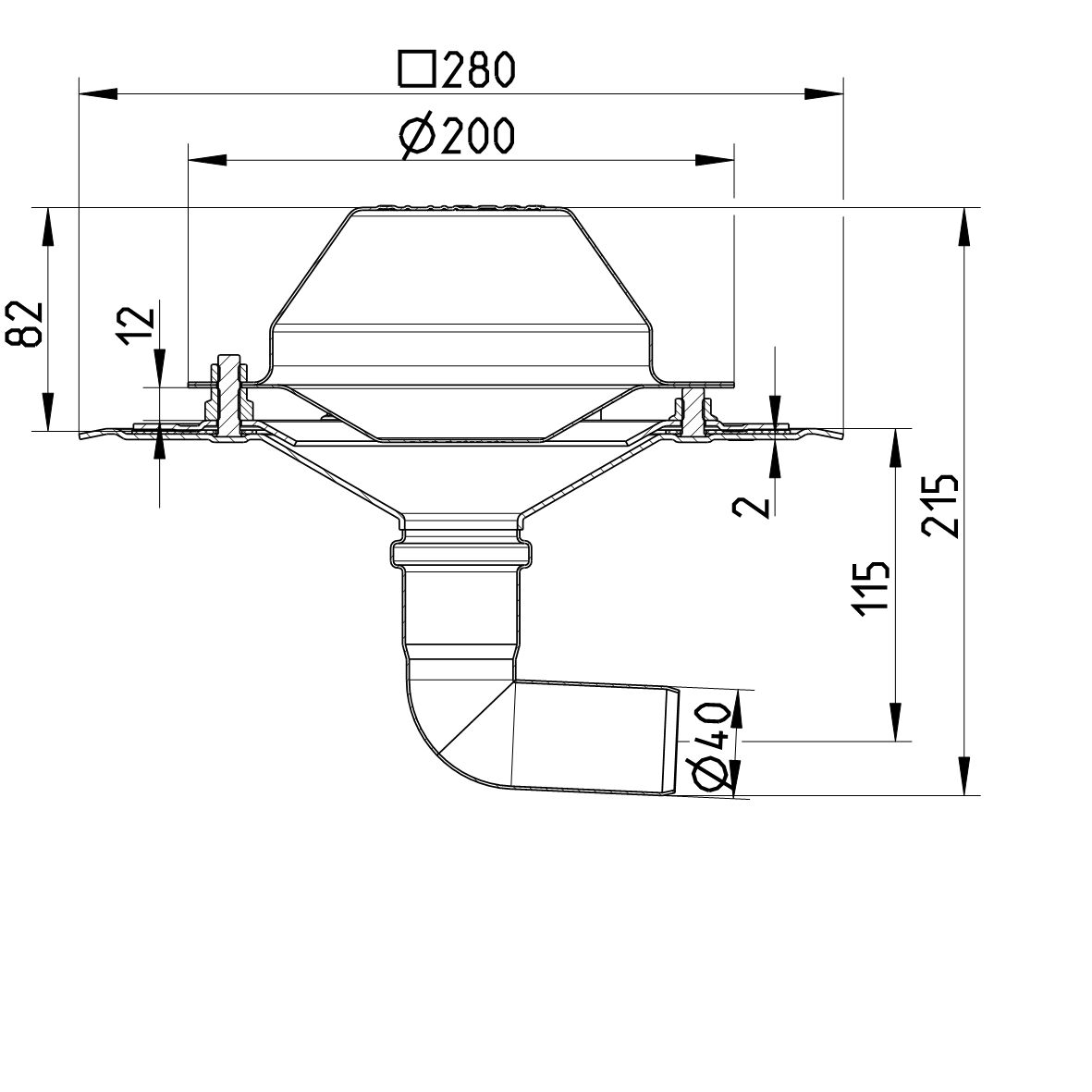

-Flange: 280x280mm
-Outlet: Ø40mm, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 4.1 |
| Minimum Height (mm) | 214 |
| Outlet dia. (Inch) | 1½ |
| Outlet Diameter (mm) | 40 |
| Outlet Direction | Horizontal |
| Roof | Single ply membrane |
| System | Siphonic |
| Weight (kg) | 2,72 |
| Weight (lbs) | 6,00 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
