ROOF DRAIN FOR SIPHONIC - (404.202.110)
×
![]()
Part Of the Series: Drain for siphonic-channels
Type no.: 404.202.110
EAN no.: 5705499001174

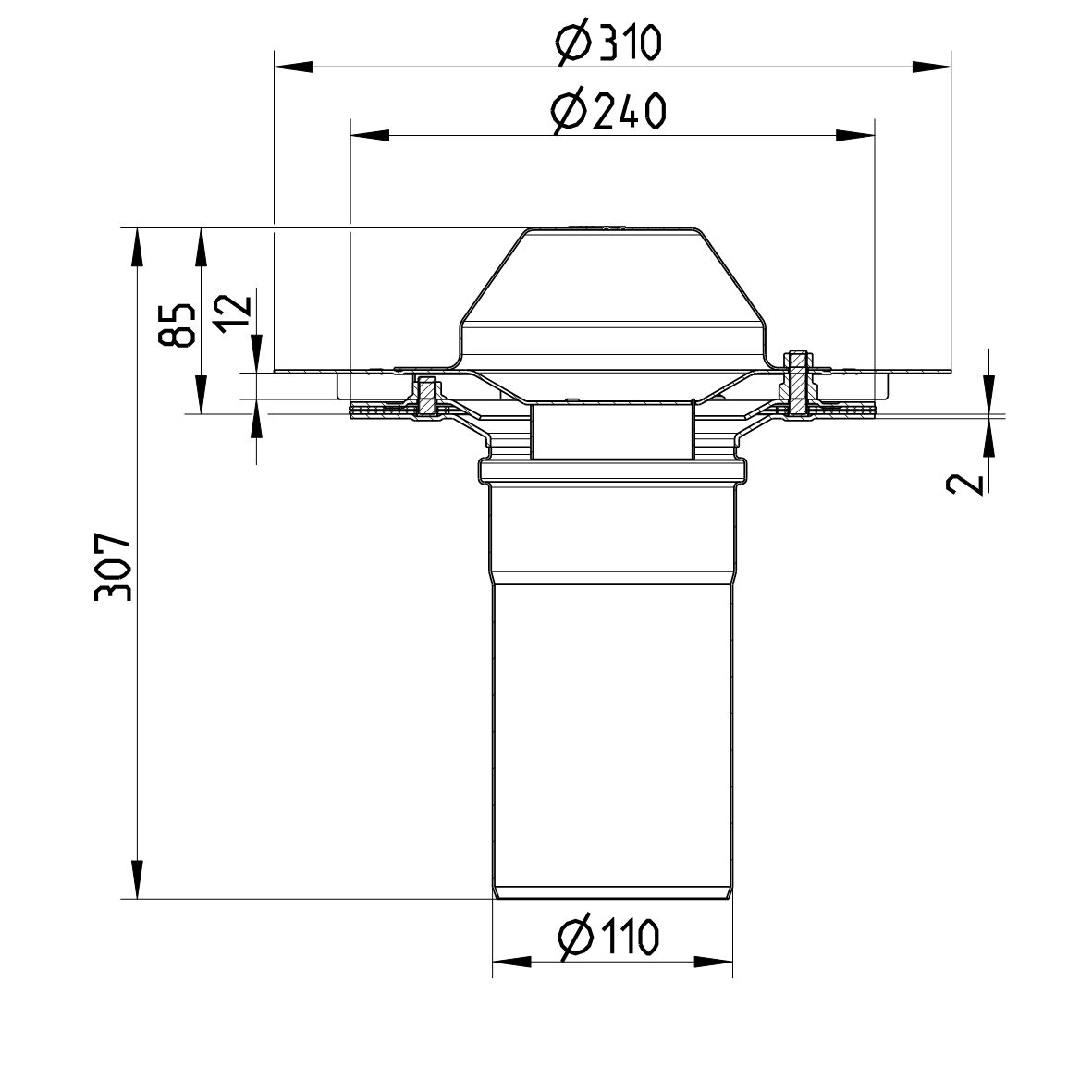

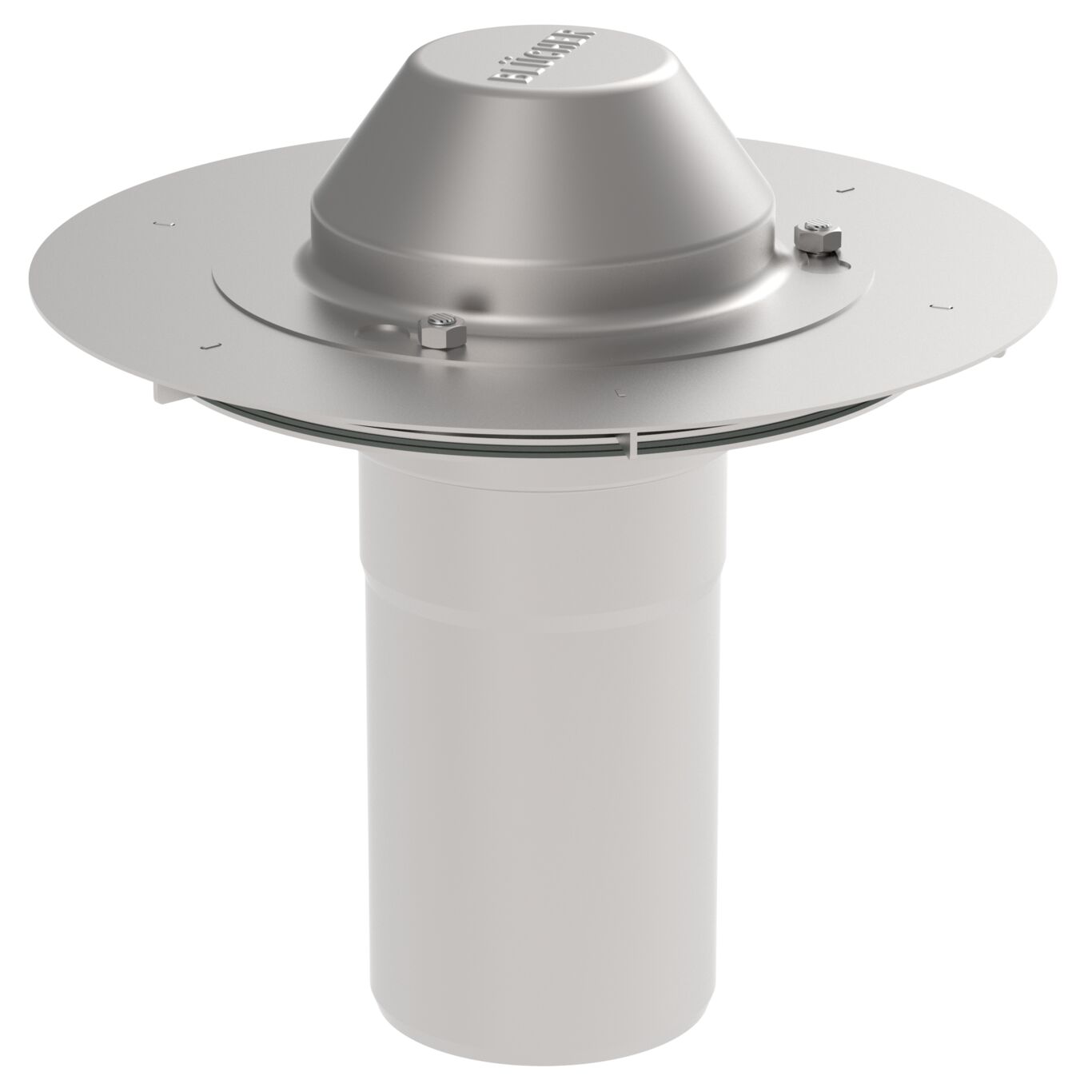

ROOF DRAIN FOR SIPHONIC
-For installation in metal gutters and channels
-Flange: Ø240mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 35.0 |
| Minimum Height (mm) | 307 |
| Outlet Diameter (mm) | 110 |
| Weight (kg) | 3,49 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
