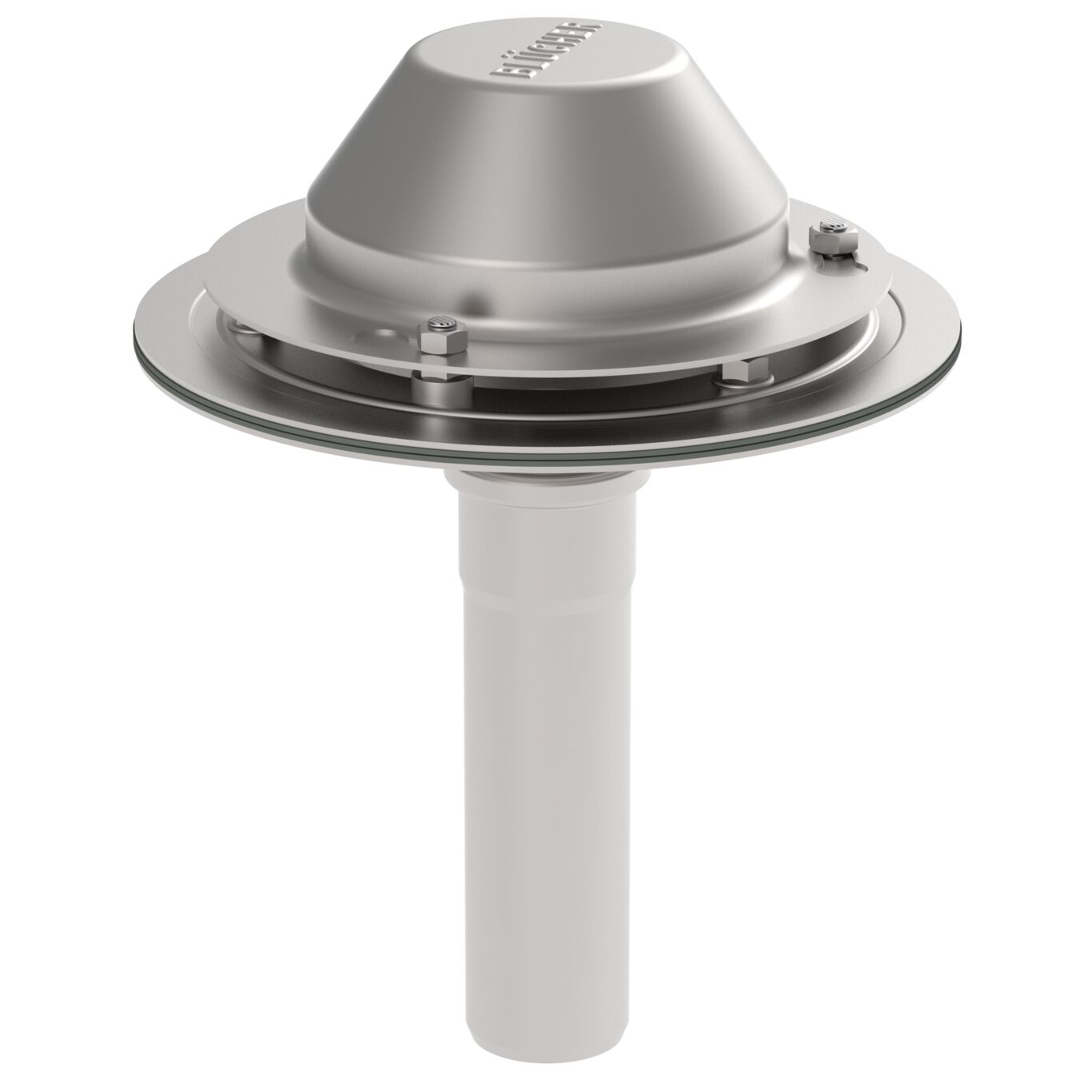

ROOF DRAIN FOR SIPHONIC - (404.202.050)
×
![]()
Part Of the Series: Drain for siphonic-channels
Type no.: 404.202.050
EAN no.: 5705499001150
ROOF DRAIN FOR SIPHONIC
-For installation in metal gutters and channels

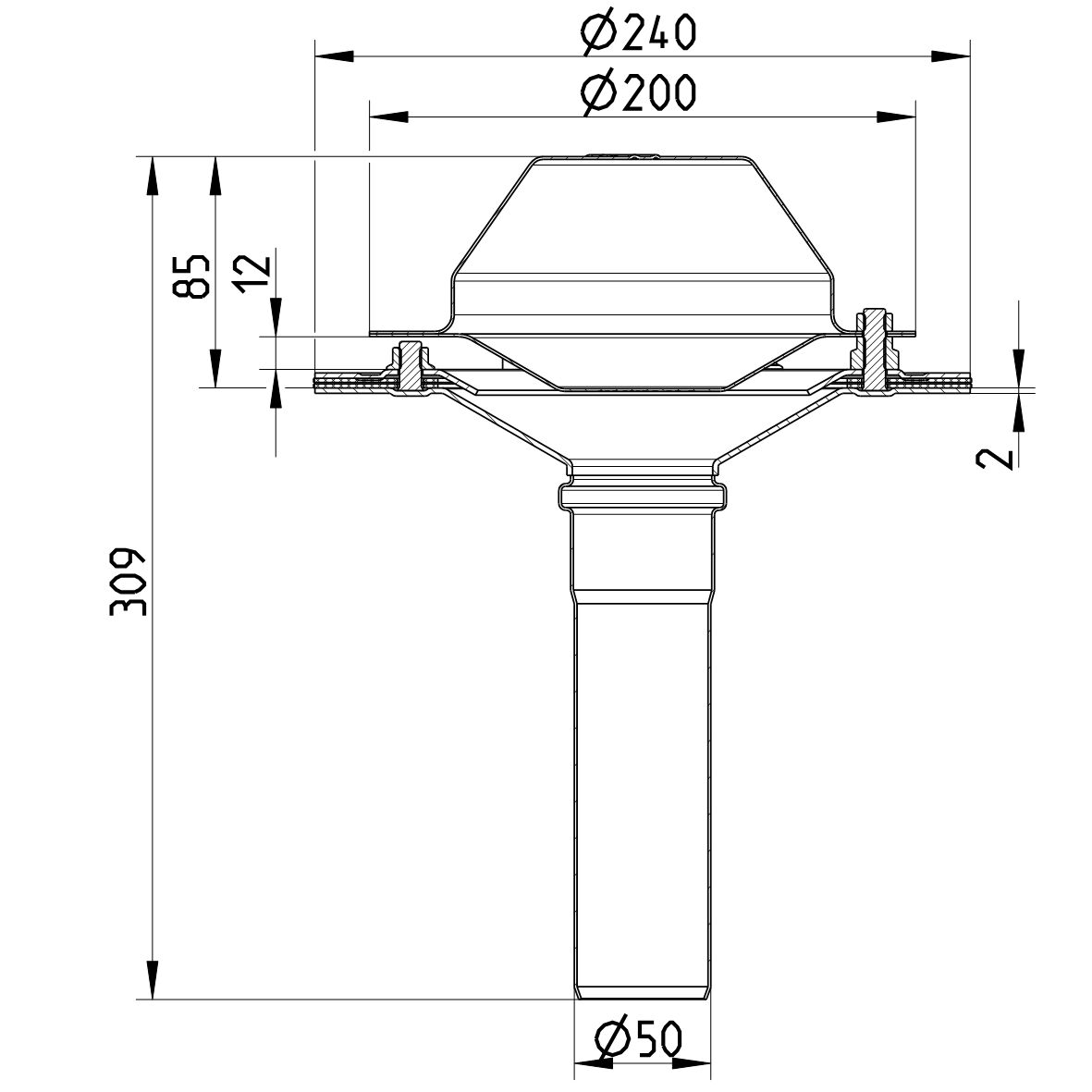

-Flange: Ø240mm
-Outlet: Ø50mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 7.6 |
| Minimum Height (mm) | 309 |
| Outlet Diameter (mm) | 50 |
| Weight (kg) | 2,45 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
