ROOF DRAIN FOR SIPHONIC - (404.202.040)
×
![]()
Part Of the Series: Drain for siphonic-channels
Type no.: 404.202.040
EAN no.: 5705499001143

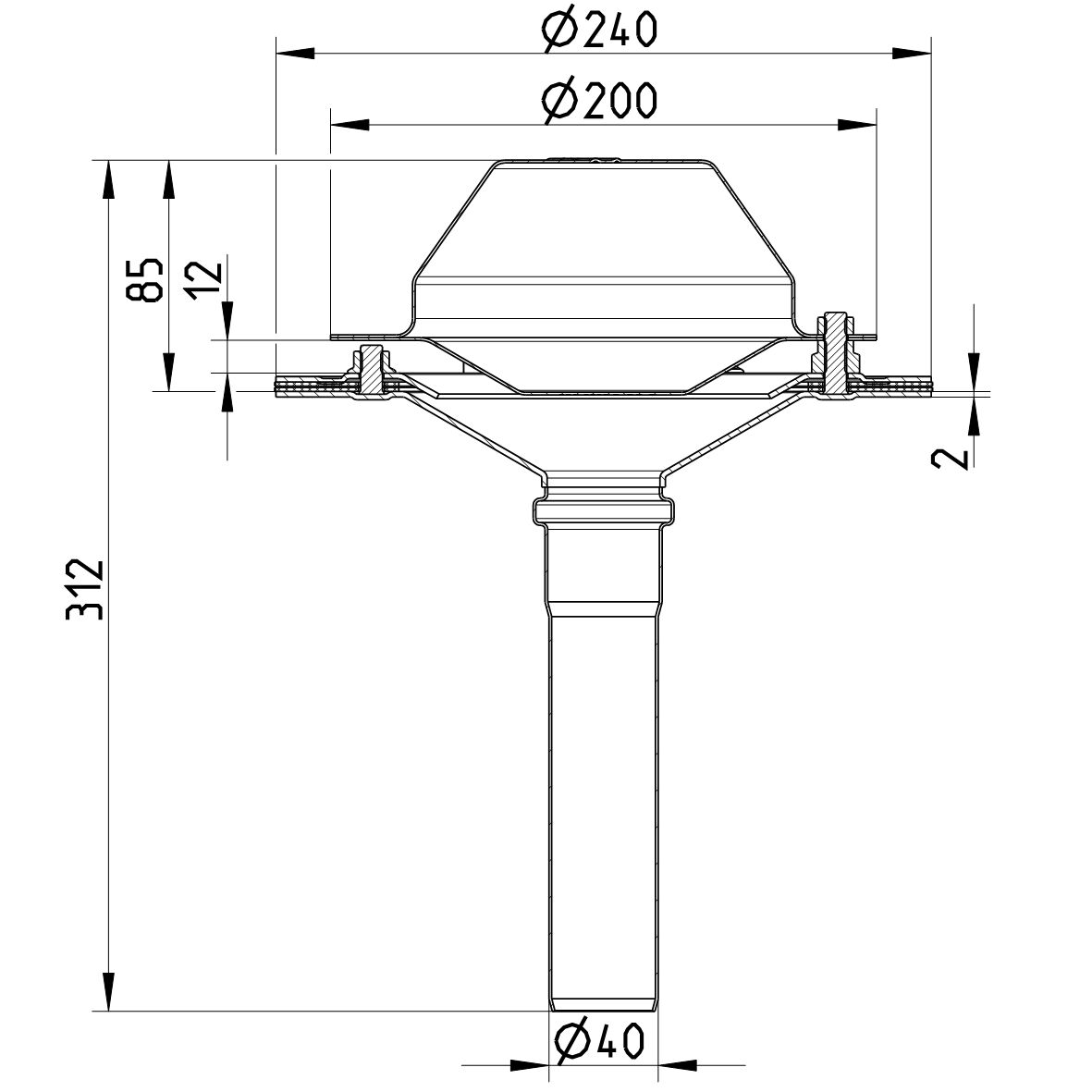

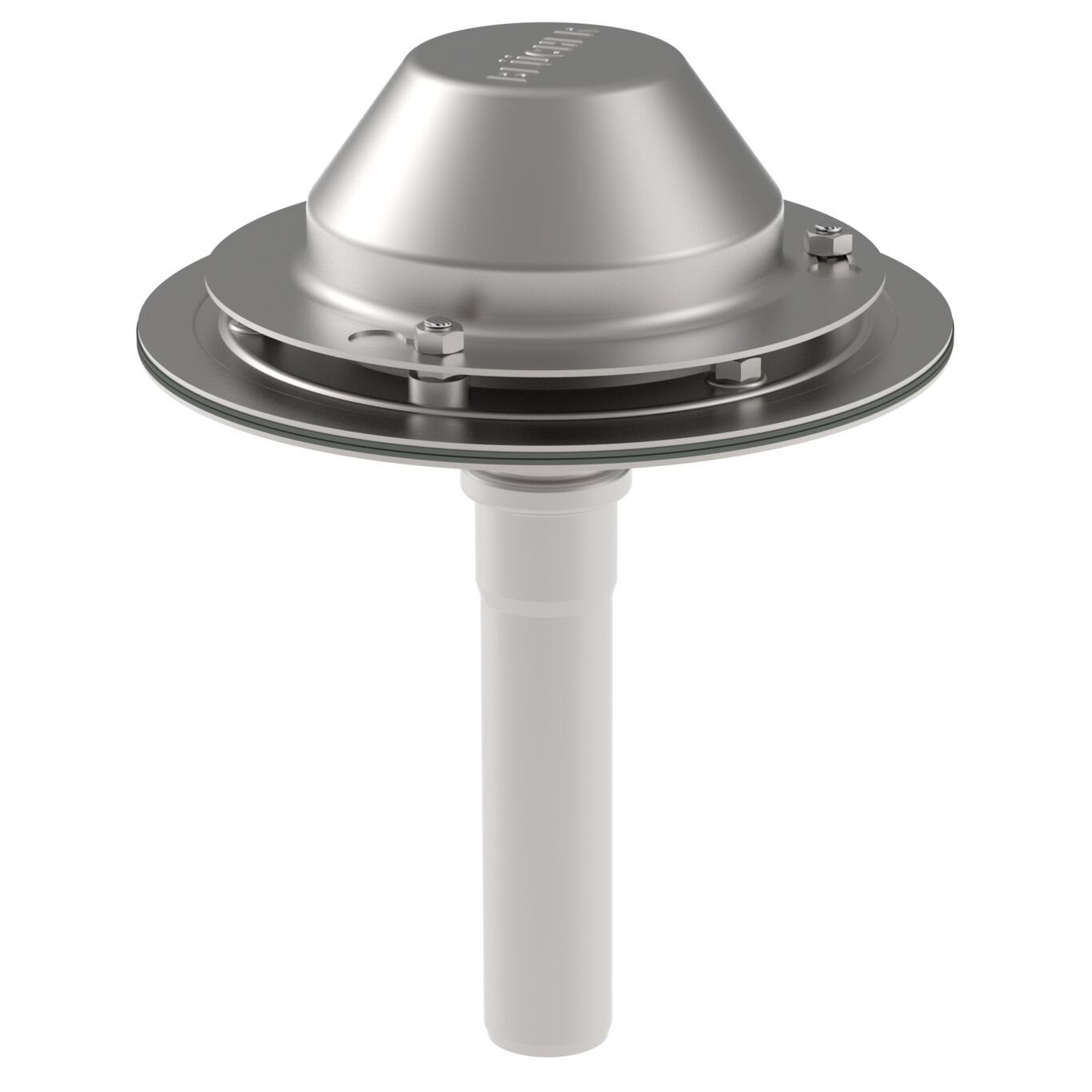

ROOF DRAIN FOR SIPHONIC
-For installation in metal gutters and channels
-Flange: Ø240mm
-Outlet: Ø40mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 4.1 |
| Minimum Height (mm) | 312 |
| Outlet Diameter (mm) | 40 |
| Weight (kg) | 2,40 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
