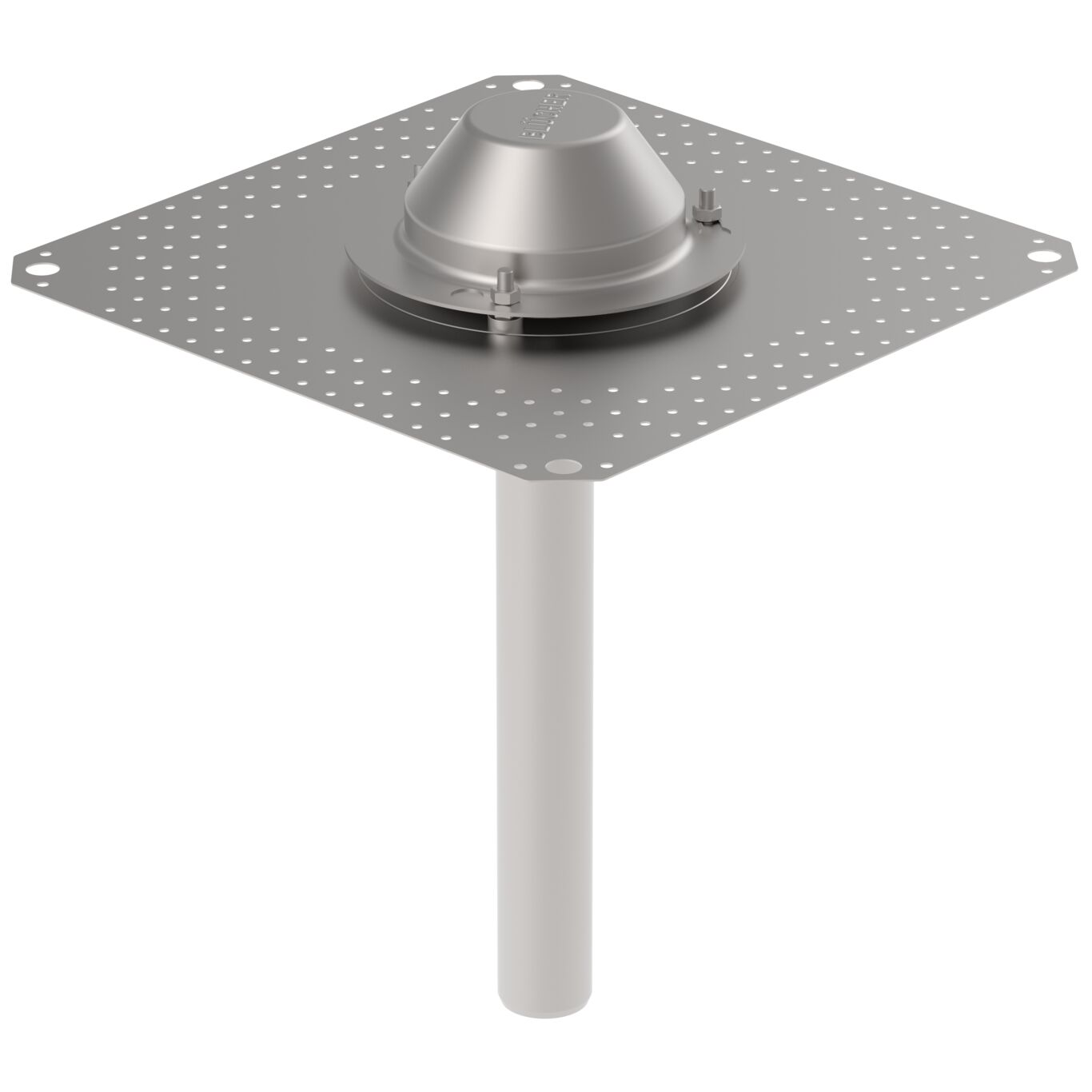

ROOF DRAIN FOR SIPHONIC - (401.204.050)
×
![]()
Part Of the Series: Drain for siphonic-bitumen
Type no.: 401.204.050
EAN no.: 5705499132830
VVS no.: 164110050
RSK no.: 5173701
LVI no.: 3384522

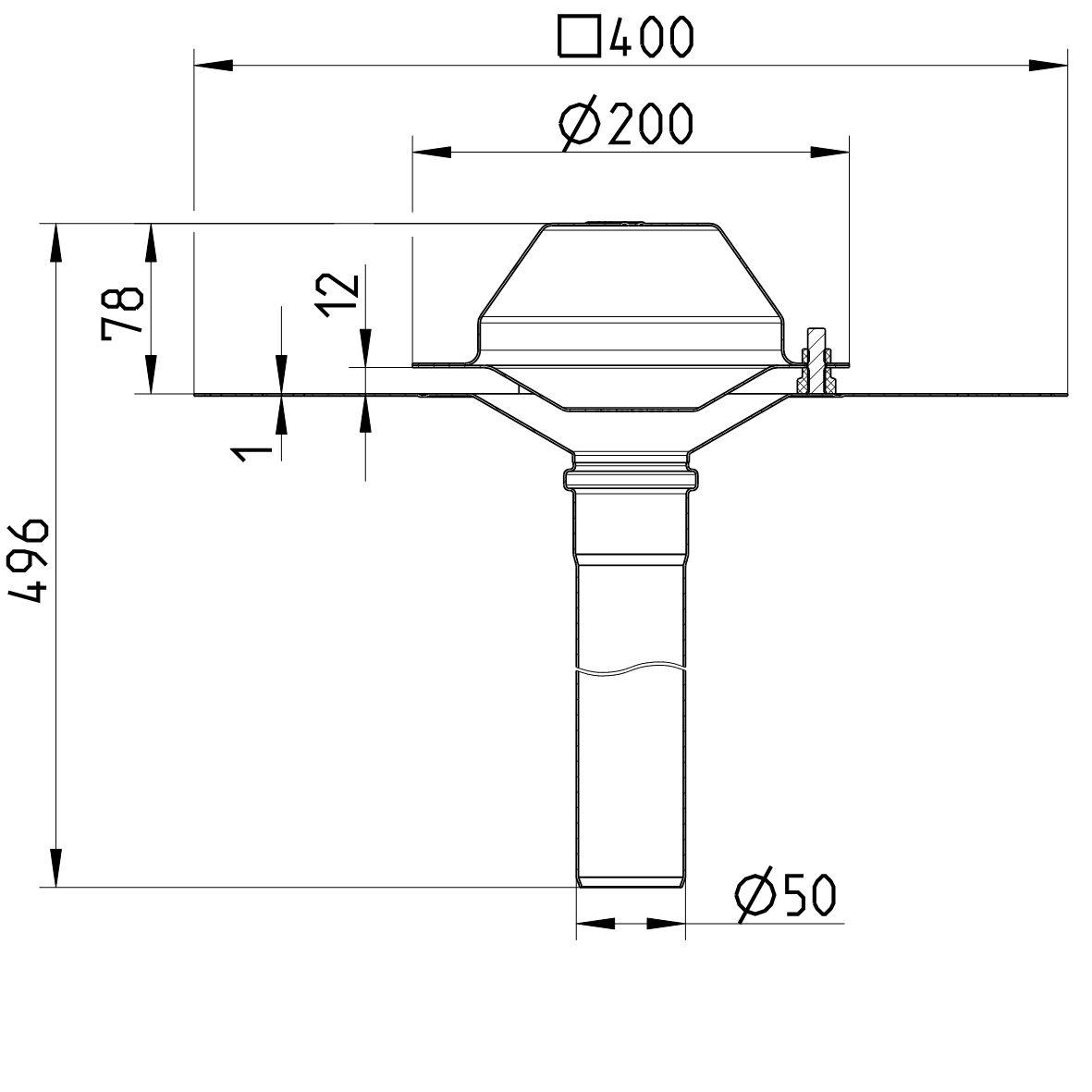

ROOF DRAIN FOR SIPHONIC
-Roof: bitumen
-Flange: 400x400mm
-Outlet: Ø50mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 7.6 |
| Minimum Height (mm) | 496 |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Vertical |
| Roof | Bitumen |
| System | Siphonic |
| Weight (kg) | 1,97 |
| Weight (lbs) | 4,34 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
