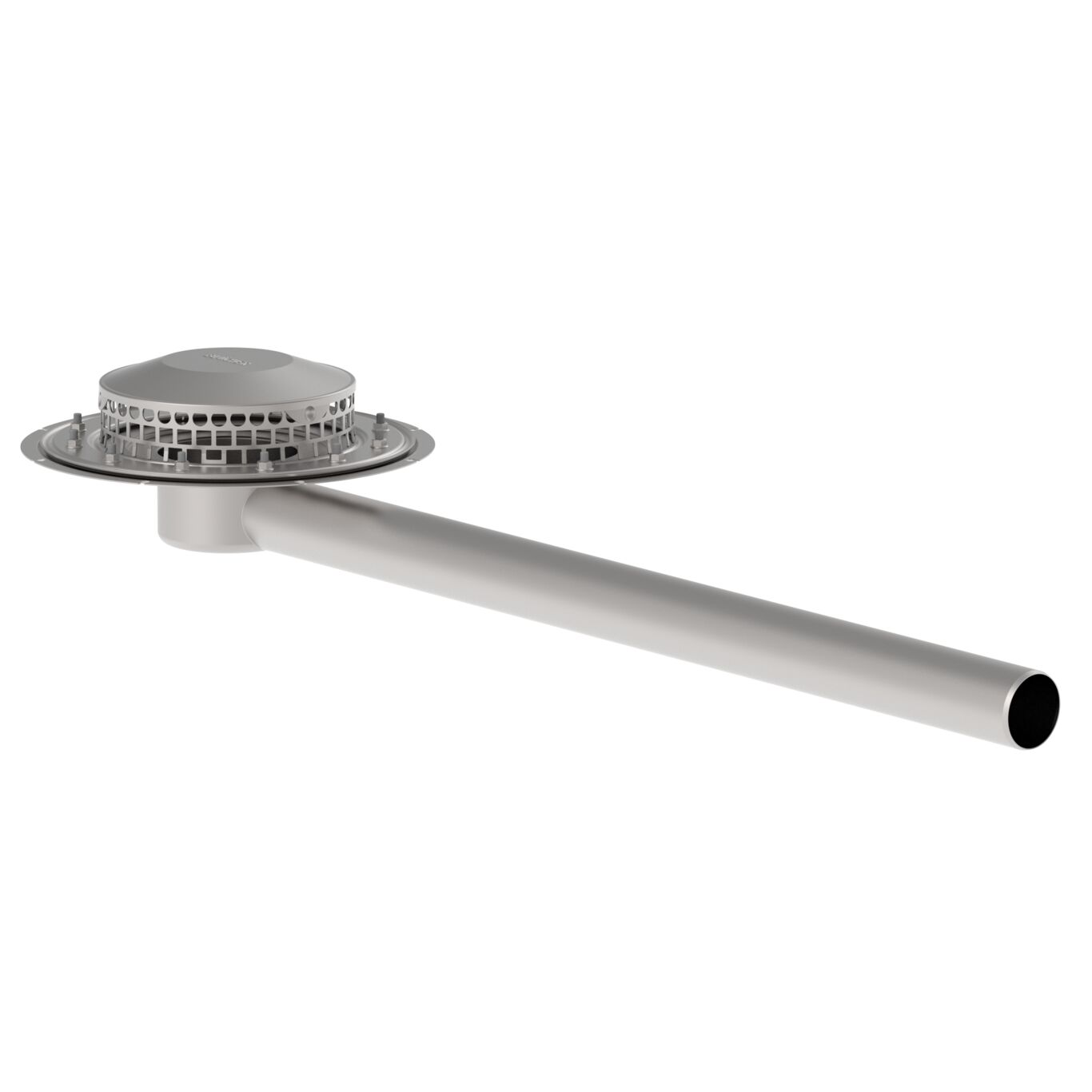

PARAPET DRAIN FOR GRAVITY - (405.101.075)
×
![]()
Part Of the Series: Drain-Parapet
Type no.: 405.101.075
EAN no.: 5705499141351
PARAPET DRAIN FOR GRAVITY
-Clamping flange : Bitumen and single ply membrane
-Outlet: Ø75mm, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 3.6 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Horizontal |
| Roof | Bitumen|Single ply membrane |
| System | Gravity |
| Weight (kg) | 5,68 |
| Weight (lbs) | 12,52 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
