ROOF DRAIN FOR GRAVITY - (402.104.075)
×
![]()
Part Of the Series: Drain for gravity-single ply membrane
Type no.: 402.104.075
EAN no.: 5705499132779
VVS no.: 164101075
RSK no.: 5173696
LVI no.: 3384529

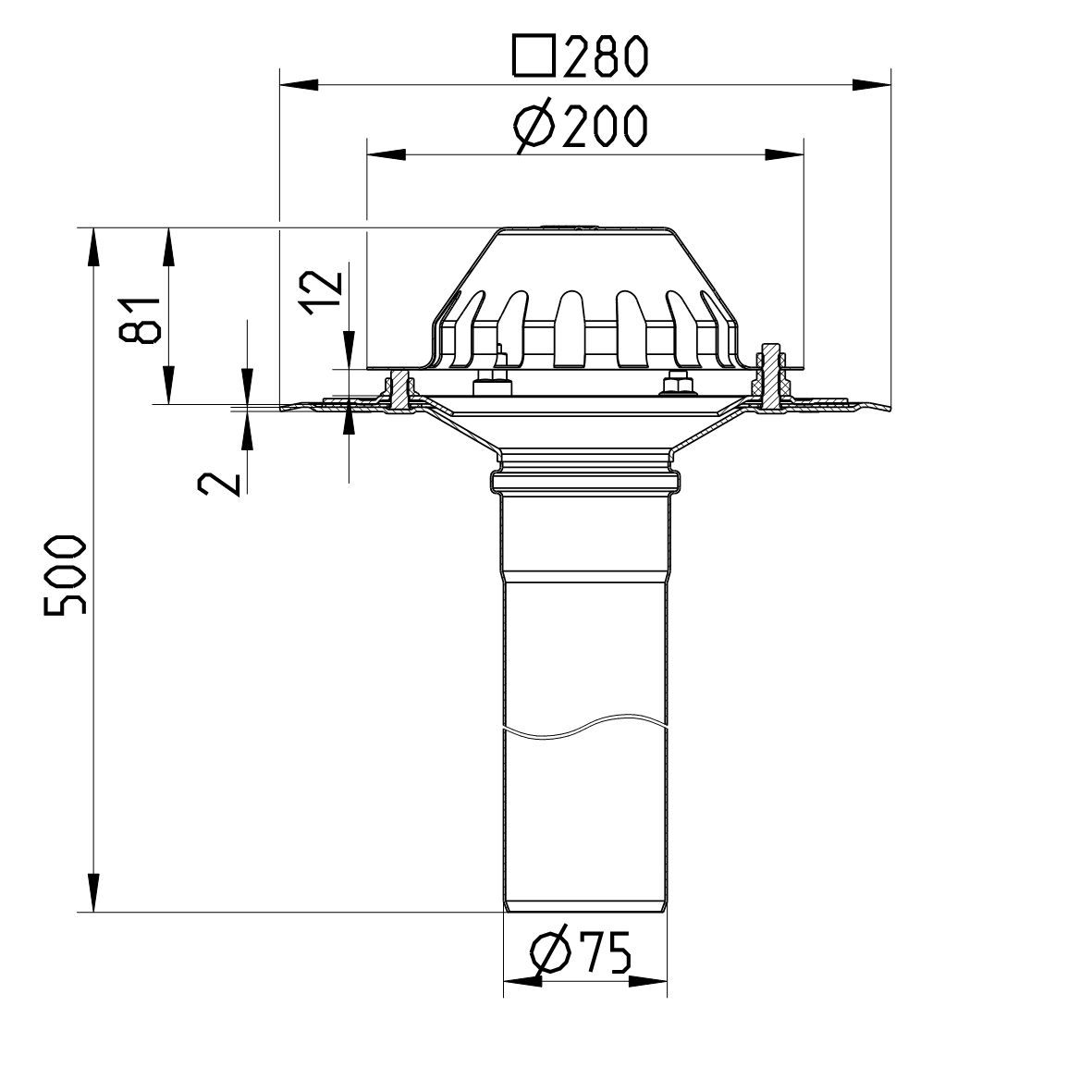

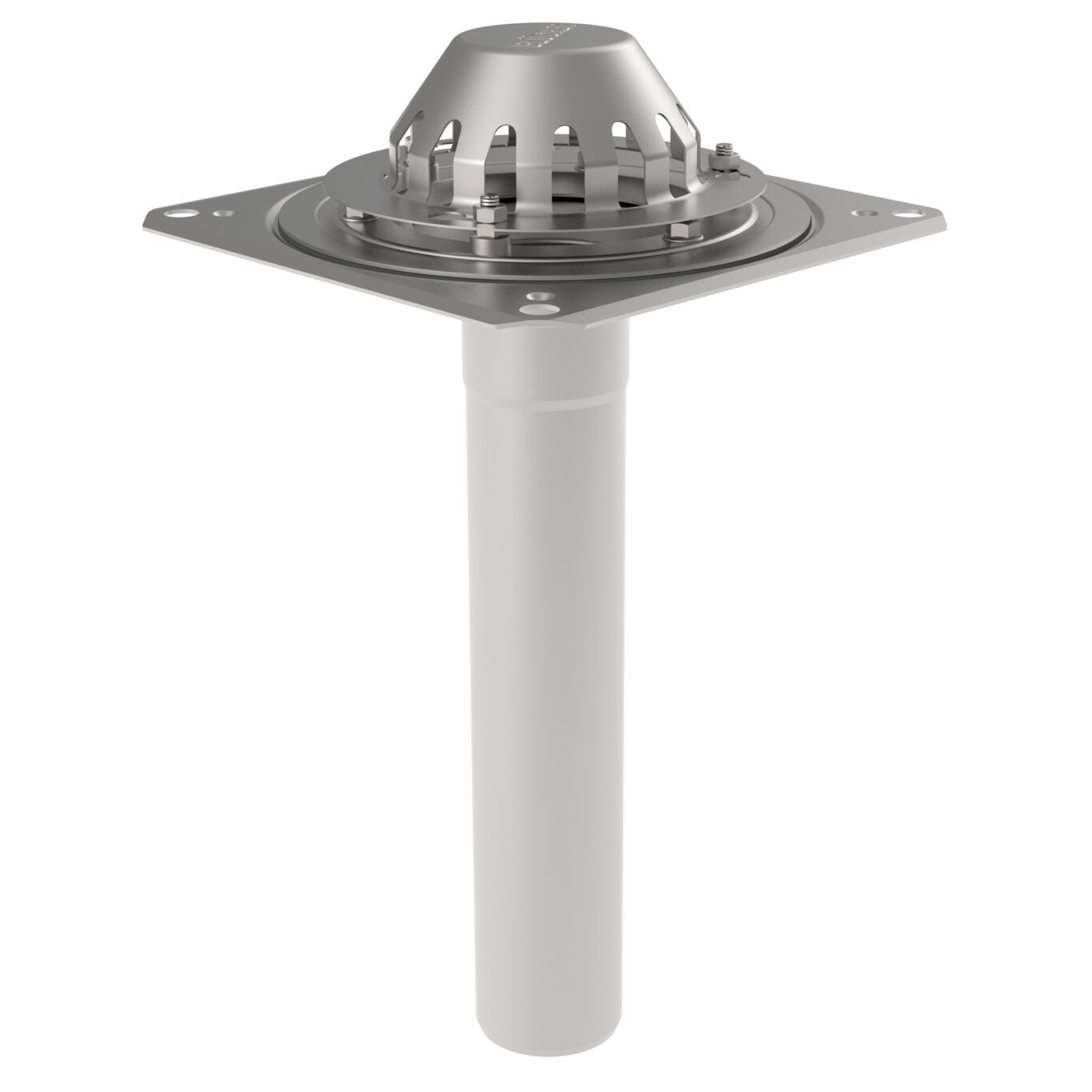

ROOF DRAIN FOR GRAVITY
-Roof: single ply membrane
-Flange: 280x280mm
-Outlet: Ø75mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 5.0 |
| Minimum Height (mm) | 500 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Vertical |
| Roof | Single ply membrane |
| System | Gravity |
| Weight (kg) | 2,95 |
| Weight (lbs) | 6,5 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
