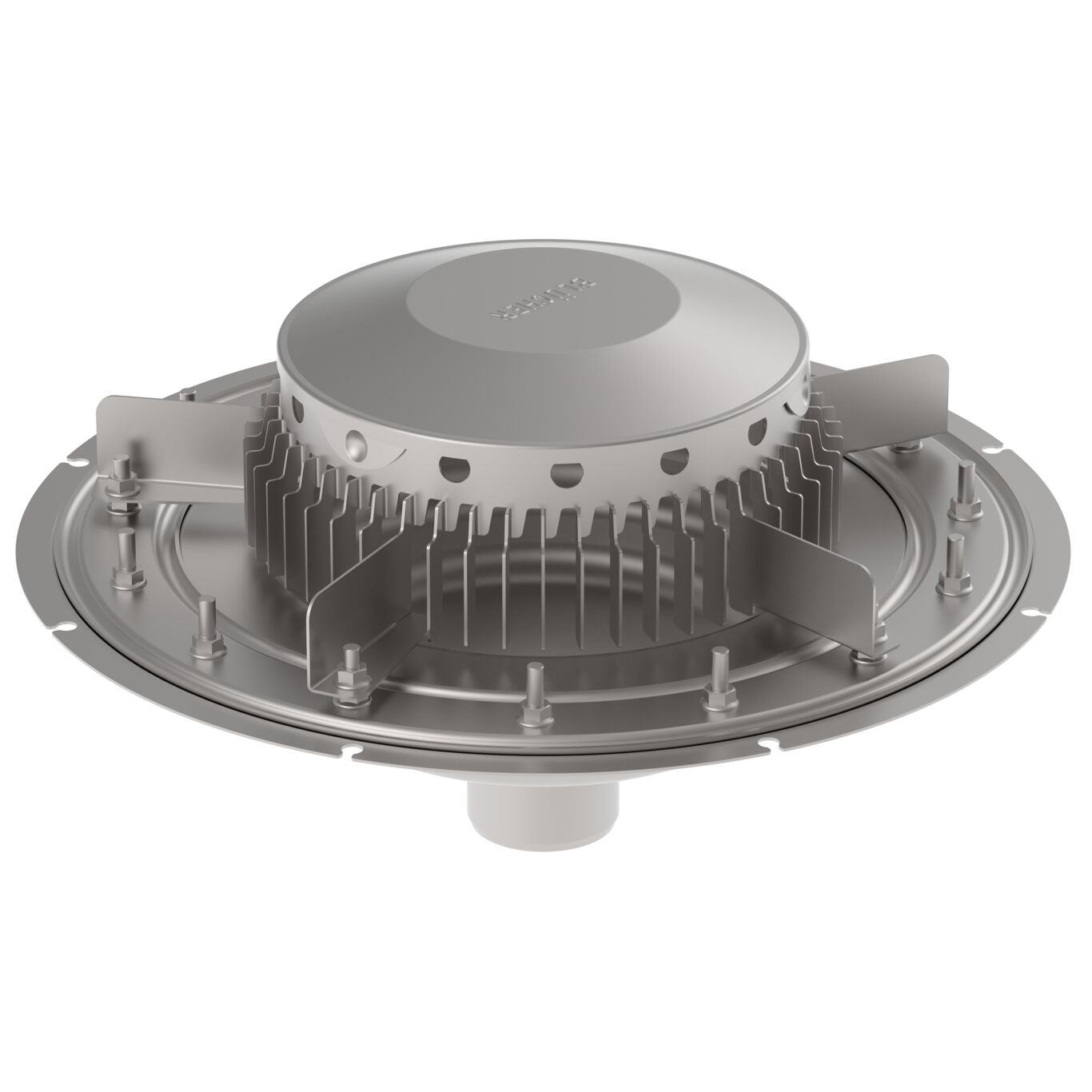

ROOF DRAIN FOR GRAVITY - (408.101.075)
×
![]()
Part Of the Series: Drain for gravity-bitum or single ply membrane
Type no.: 408.101.075
EAN no.: 5705499139983
VVS no.: 164113075

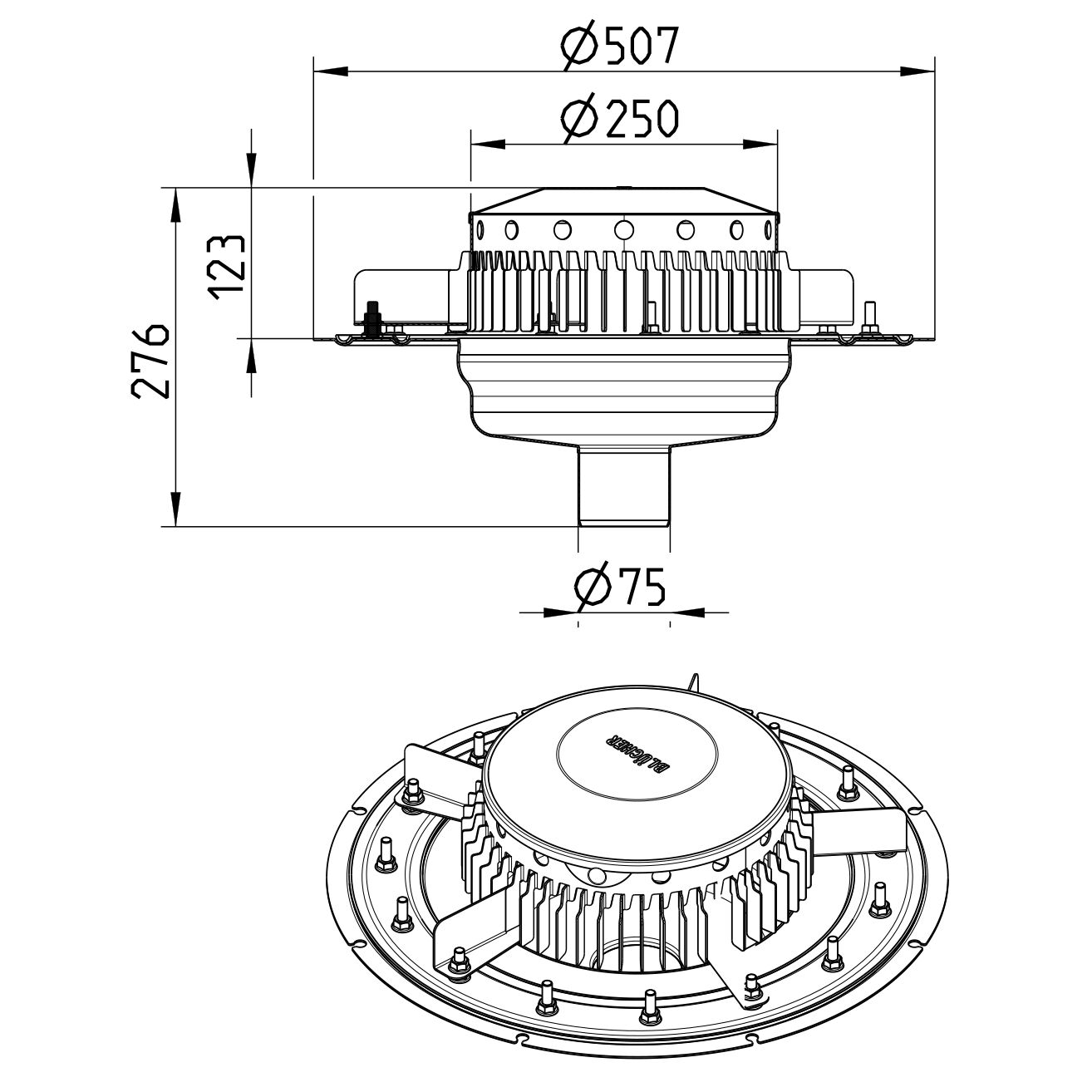

ROOF DRAIN FOR GRAVITY
-Roof: Bitumen and single ply membrane
-Flange: Ø507mm
-Outlet: Ø75mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 10.8 |
| Minimum Height (mm) | 276 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Vertical |
| Roof | Bitumen|Single ply membrane |
| System | Gravity |
| Weight (kg) | 6,56 |
| Weight (lbs) | 14,46 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
