LOWER PART MARINE - (475.900.075 S)
×
![]()
Part Of the Series: Marine-lower part-no welding
Type no.: 475.900.075 S
EAN no.: 5705499133356
NRF no.: 3397045

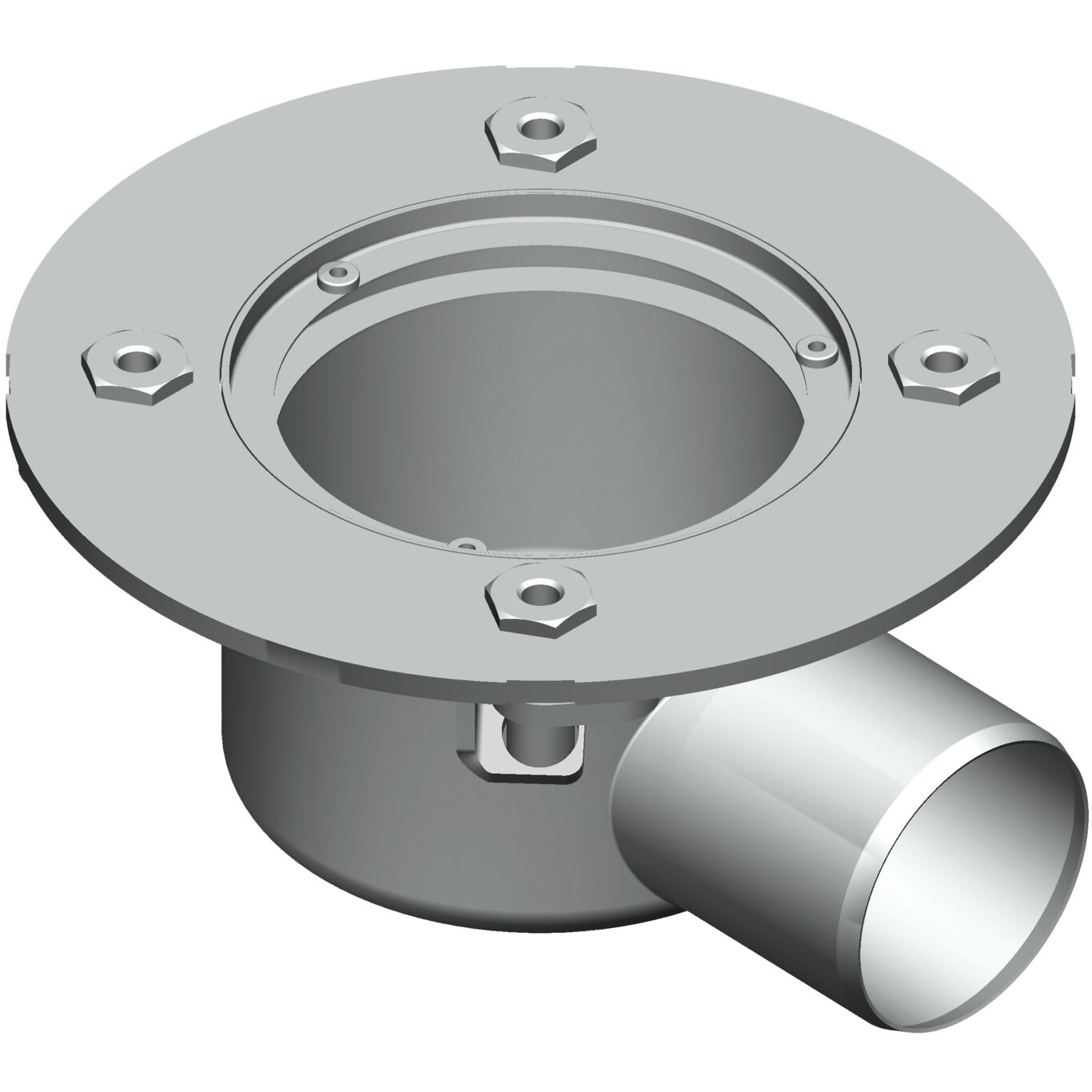

LOWER PART MARINE
-Non-welded
-Deck: aluminium and steel

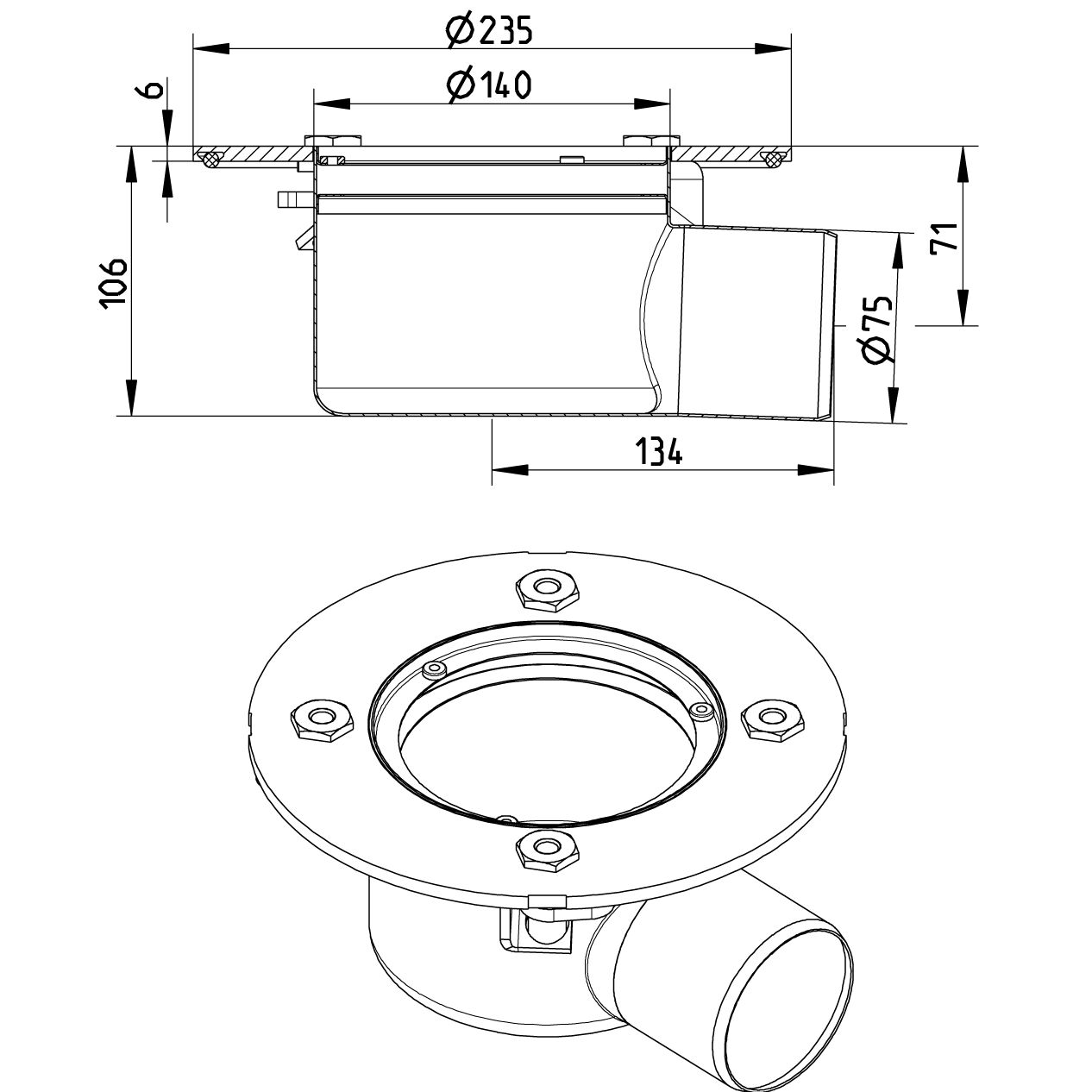

-Flange: Ø235mm
-Outlet: Ø75mm, horizontal
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Aluminium|Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 106 |
| Number of Inlets | 0 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Horizontal |
| Weight (kg) | 2,47 |
| Weight (lbs) | 5,45 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
