LOWER PART - (775.003.160)
Part Of the Series: Lower part-250
Type no.: 775.003.160
EAN no.: 5705499112634
LVI no.: 3303803

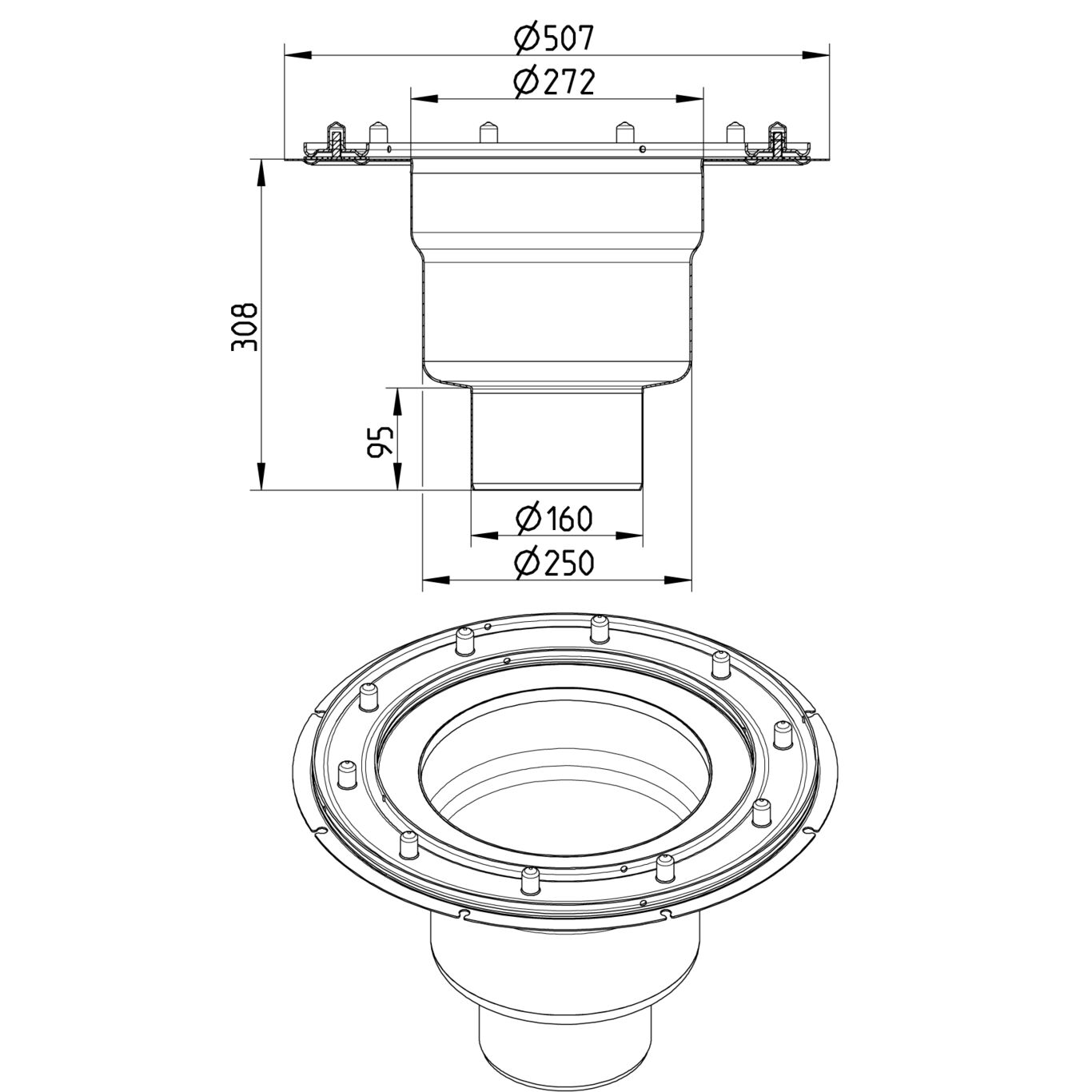

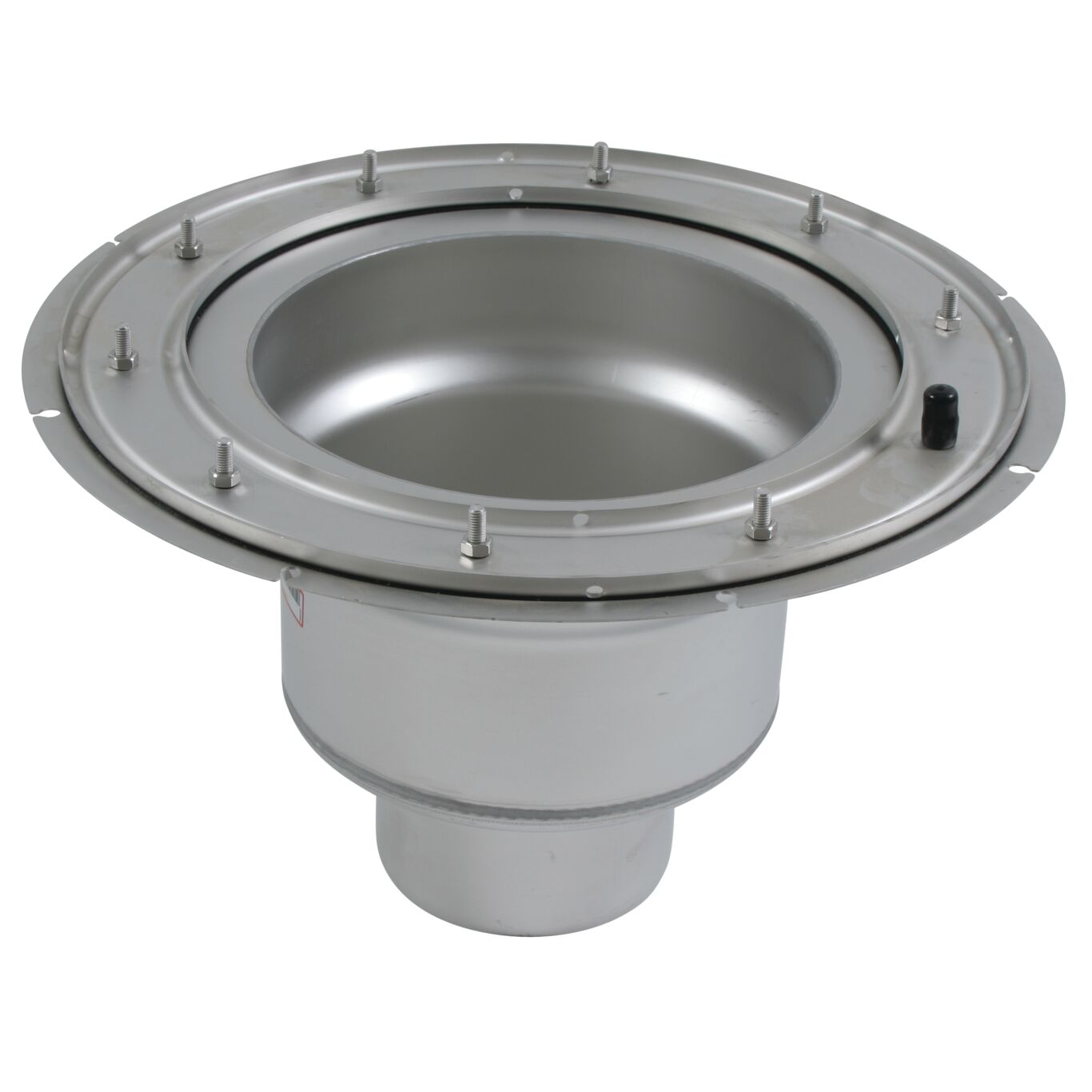

LOWER PART
-Sheet membrane flange
-Outlet: Ø160mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Field of Application | Industrial |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Membrane Type | Sheet Membrane |
Minimum Height (mm) | 308 |
Outlet dia. (Inch) | 6 |
Outlet Diameter (mm) | 160 |
Outlet Direction | Vertical |
Weight (kg) | 7,82 |
Weight (lbs) | 17,24 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
