UPPER PART - (710.402.000.01)
×
![]()
Part Of the Series: Upper part-No membrane-200
Type no.: 710.402.000.01
EAN no.: 5705499108149
LVI no.: 3303807
Size: 200x200

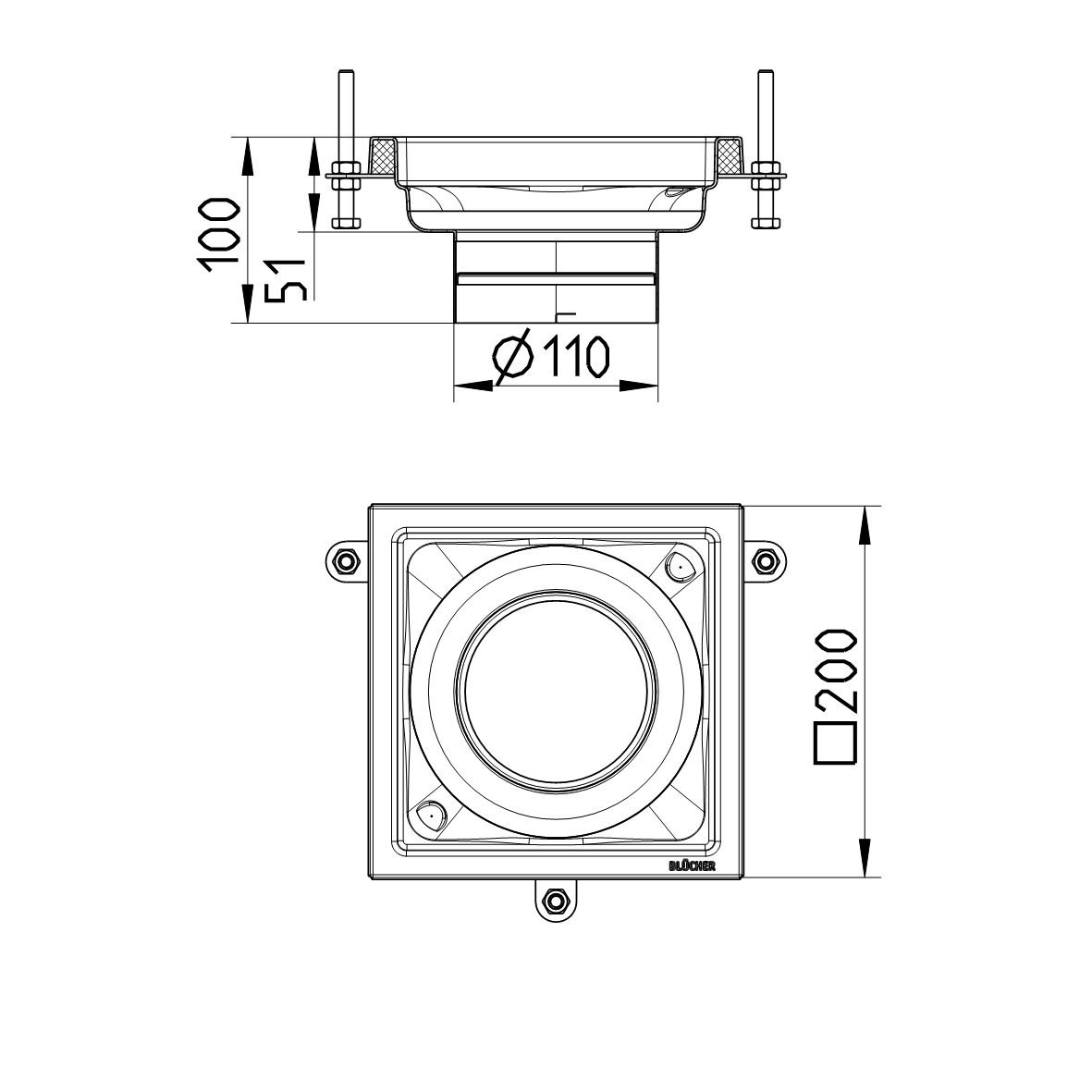

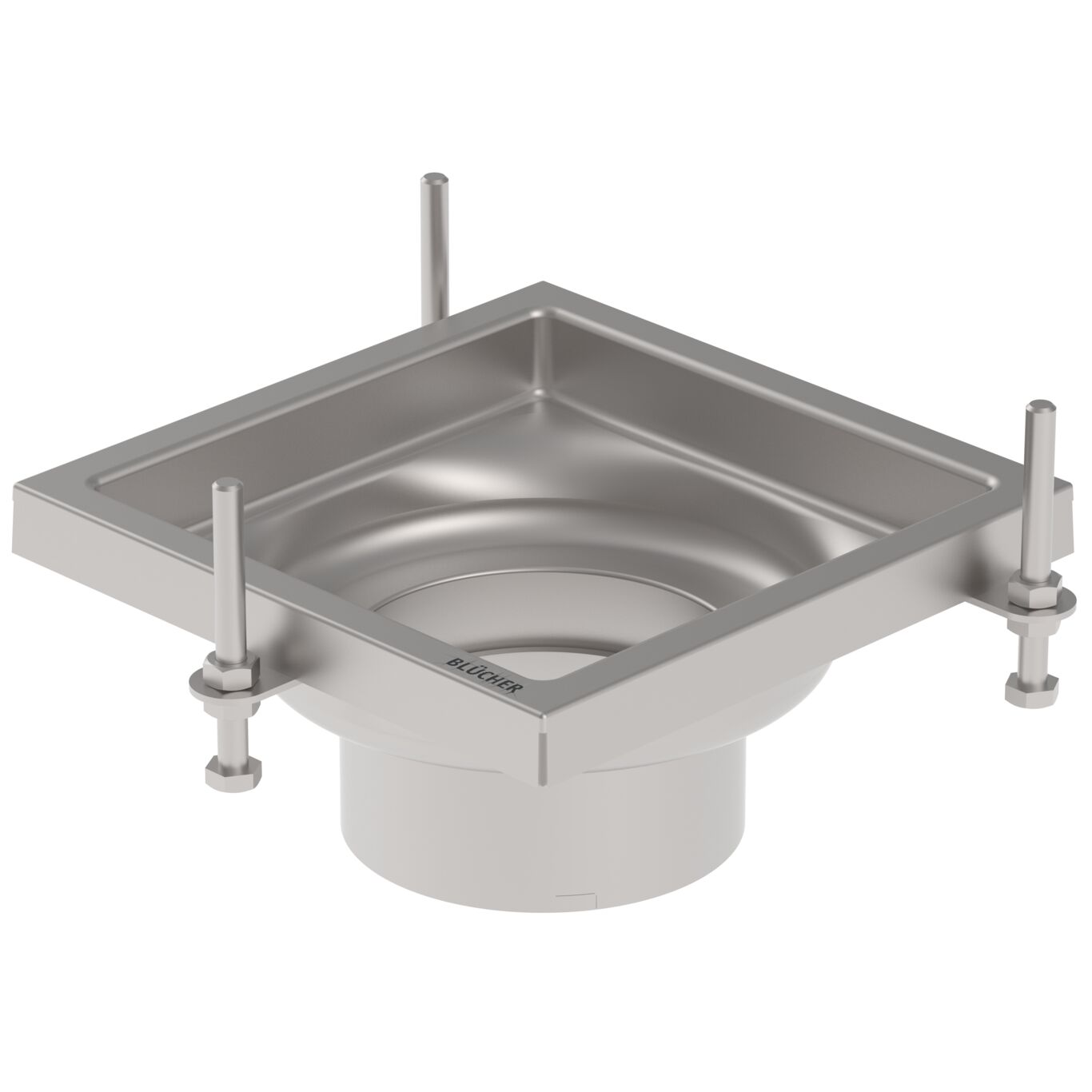

UPPER PART
-With screw lock and supporting ring for water trap
-Floor: concrete and tiled
-Frame: 200x200mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Number of Screw Holes | 1 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Shape | Square |
| Size (Inch) | 7⅞x7⅞ |
| Size (mm) | 200x200 |
| Weight (kg) | 1,19 |
| Weight (lbs) | 2,62 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
