3MM GRATING SQUARE - (790.168.001.03)
×
![]()
Part Of the Series: Grating-Drain-200
Type no.: 790.168.001.03
EAN no.: 5705499113501
LVI no.: 3304076
Size: 200x200

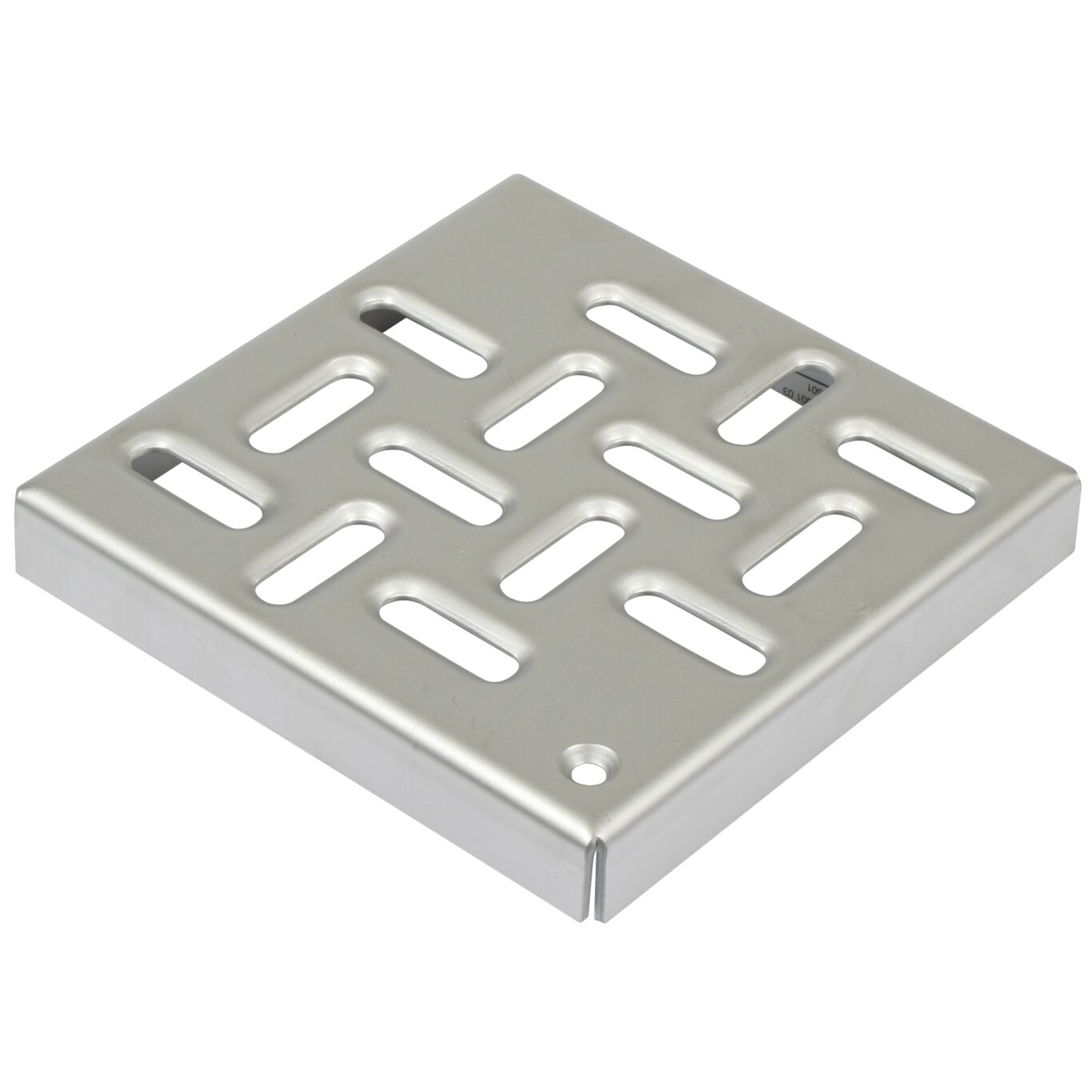

3MM GRATING SQUARE
-With screw lock

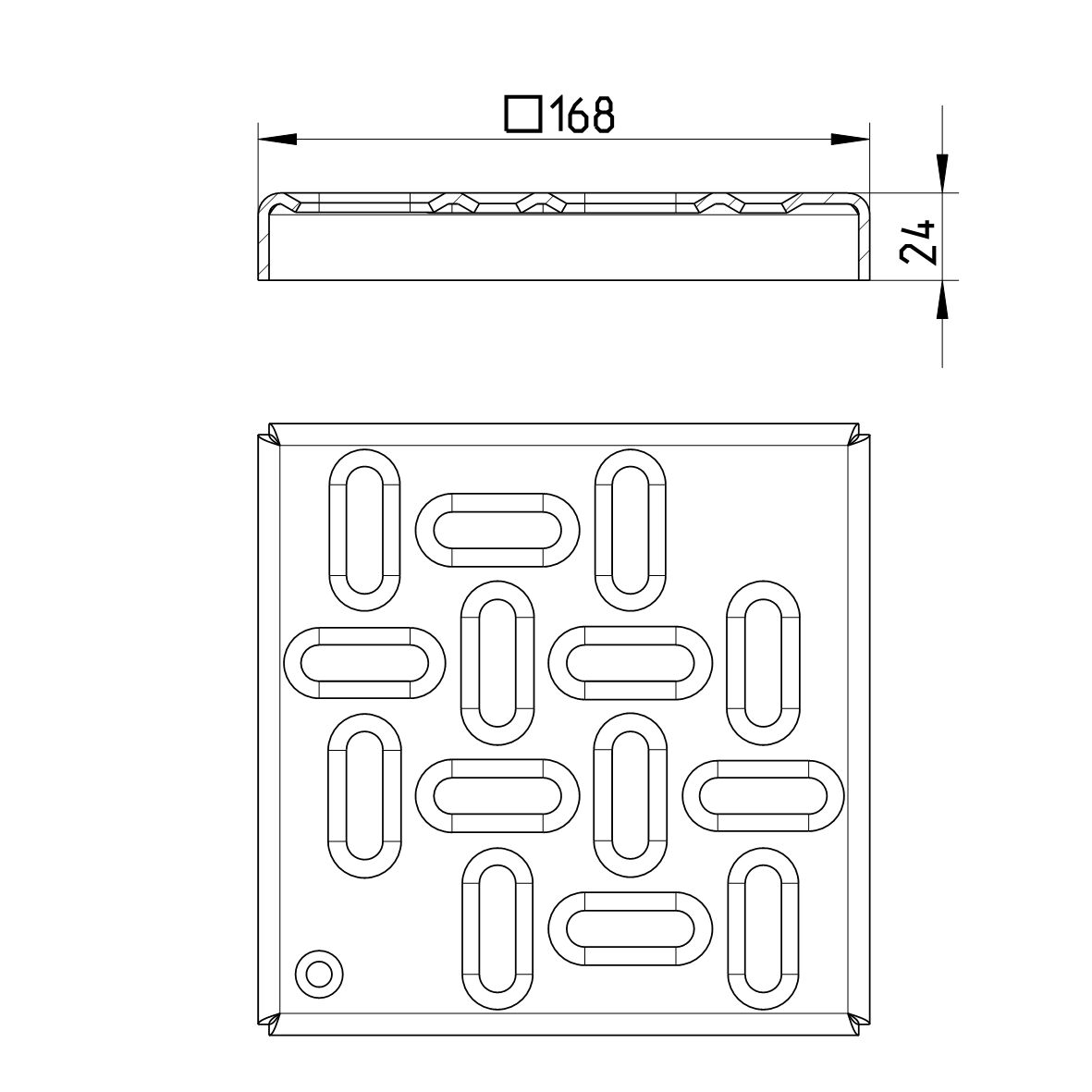

-Grating: 168x168mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | L15 |
| Load Class EN1253 (kg) | L15 (1750) |
| Load class EN1253(lbs) | L15 (3858) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 24 |
| Non-slip | R10 |
| Number of Screws | 1 |
| Shape | Square |
| Size (Inch) | 7⅞x7⅞ |
| Size (mm) | 200x200 |
| Weight (kg) | 1,20 |
| Weight (lbs) | 2,65 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
