SHOWER DRAIN SQUARE - (160.300.050 S)
×
![]()
Part Of the Series: Drain-No membrane-145
Type no.: 160.300.050 S
EAN no.: 5705499124293
LVI no.: 3305766
Size: 145x145

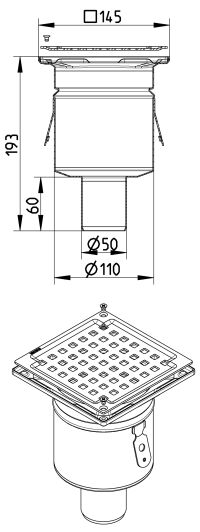

SHOWER DRAIN SQUARE
-Floor: concrete and tiled
-No membrane, frame: 145x145mm
-Outlet: Ø50mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 |
| Load class EN1253(lbs) | K3 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Membrane Type | No Membrane |
| Number of Inlets | 0 |
| Number of inlets (Inch) | 0 |
| Number of Screw Holes | 2 |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (Inch) | 5¾x5¾ |
| Size (mm) | 145x145 |
| Weight (kg) | 0,55 |
| Weight (lbs) | 1,21 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
