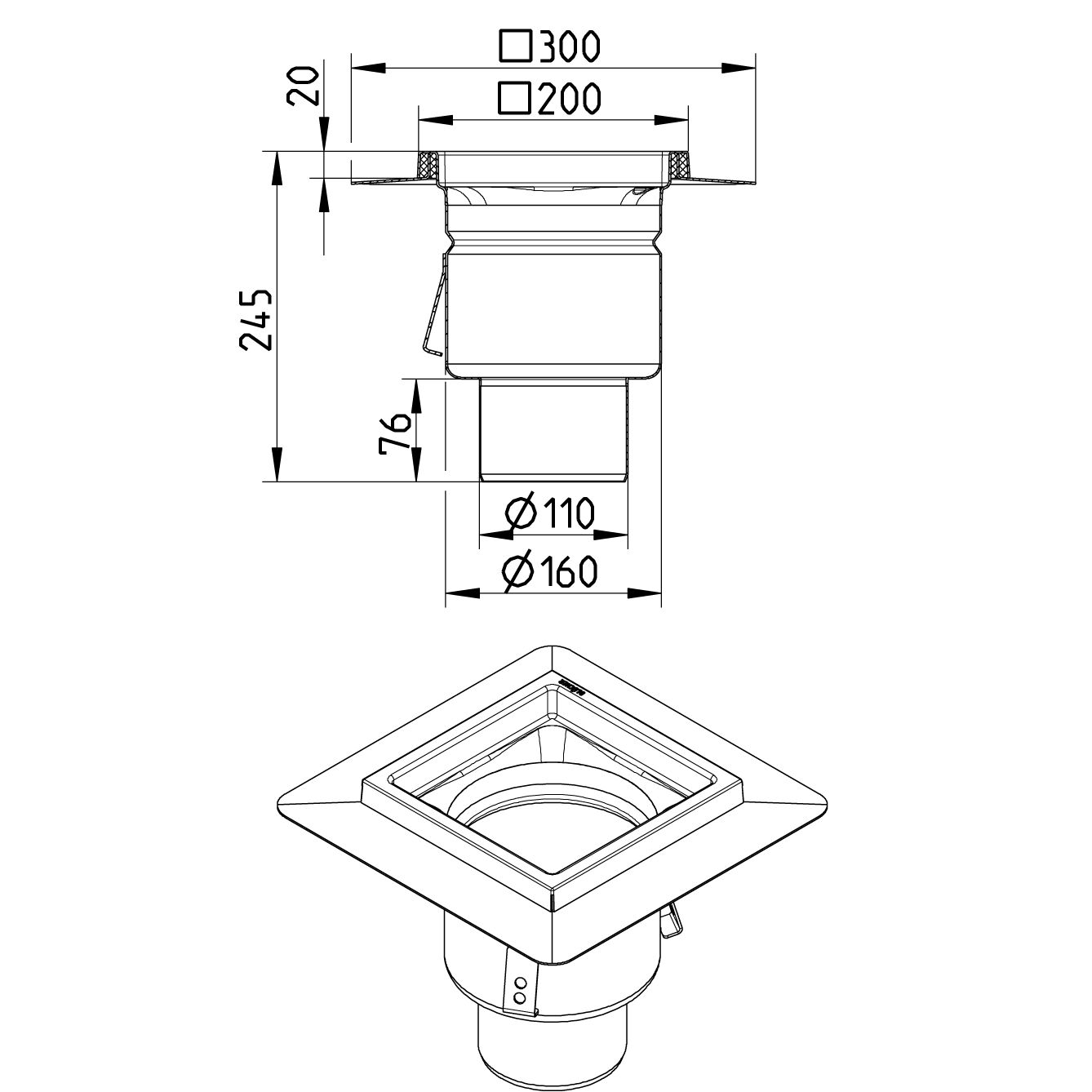

INDUSTRIAL DRAIN, LOW - (767.402.110)
×
![]()
Part Of the Series: Drain-Liquid membrane-200
Type no.: 767.402.110
EAN no.: 5705499110685
VVS no.: 153045116
NRF no.: 3396379
LVI no.: 3303706
Size: 200x200
INDUSTRIAL DRAIN, LOW
-Floor: concrete and tiled
-Liquid membrane, frame: 200x200mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Adjustable | No |
| Field of Application | Industrial |
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Liquid Membrane |
| Number of Inlets | 0 |
| Number of inlets (Inch) | 0 |
| Number of Screw Holes | 0 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (Inch) | 7⅞x7⅞ |
| Size (mm) | 200x200 |
| Weight (kg) | 5,09 |
| Weight (lbs) | 11,22 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
