SHOWER GRATING SQUARE - (790.168.000.04)
×
![]()
Part Of the Series: Grating-Drain-200
Type no.: 790.168.000.04
EAN no.: 5705499128420
RSK no.: 7123452
Size: 200x200

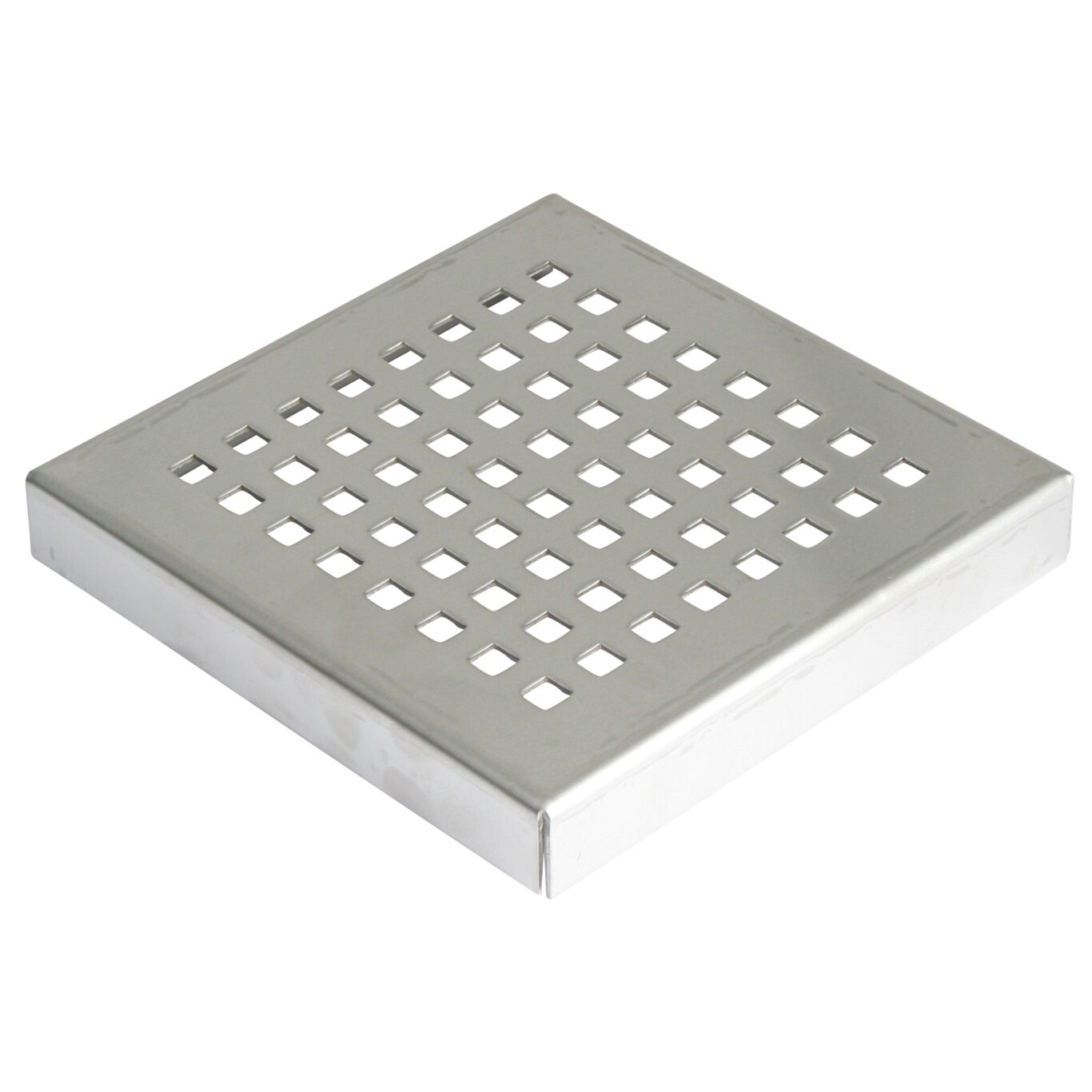

SHOWER GRATING SQUARE
-Grating: 168x168mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 (800) |
| Load class EN1253(lbs) | K3 (1764) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non-slip | R10 |
| Number of Screws | 0 |
| Shape | Square |
| Size (Inch) | 7⅞x7⅞ |
| Size (mm) | 200x200 |
| Weight (kg) | 0,61 |
| Weight (lbs) | 1,34 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
