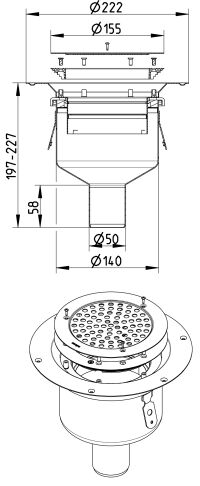

ADJUSTABLE SHOWER DRAIN CIRCLE - (250.300.050 S)
×
![]()
Part Of the Series: Drain-Vinyl-155
Type no.: 250.300.050 S
EAN no.: 5705499124323
Size: Ø155
ADJUSTABLE SHOWER DRAIN CIRCLE
-Floor: vinyl
-Grating: Ø155mm
-Outlet: Ø50mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Vinyl |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 |
| Load class EN1253(lbs) | K3 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Maximum Height (mm) | 227 |
| Minimum Height (mm) | 197 |
| Number of Inlets | 0 |
| Number of inlets (Inch) | 0 |
| Number of Screw Holes | 3 |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Vertical |
| Shape | Round |
| Size (Inch) | Ø6⅛ |
| Size (mm) | Ø155 |
| Weight (kg) | 1,33 |
| Weight (lbs) | 2,93 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Europe
SE - RISE 0193-98
FI - Tyyppihyväksyntäpäätös EUF129-23001919-TH1
DK - VA 2.42/19050 Type210, 211, 250, 251 DE - TÜV Rheinland - R 60178467 0001 PL - Hygienic Certificate - All Products US - NSF/ANSI/3-A 14159-1-Meat and Poultry
