SHOWER CHANNEL WATERLINE 900 - (178.090.056.20)
×
![]()
Part Of the Series: Shower channel-No membrane
Type no.: 178.090.056.20
EAN no.: 5705499138122
VVS no.: 155061009
NRF no.: 3394809
Size: 50x900

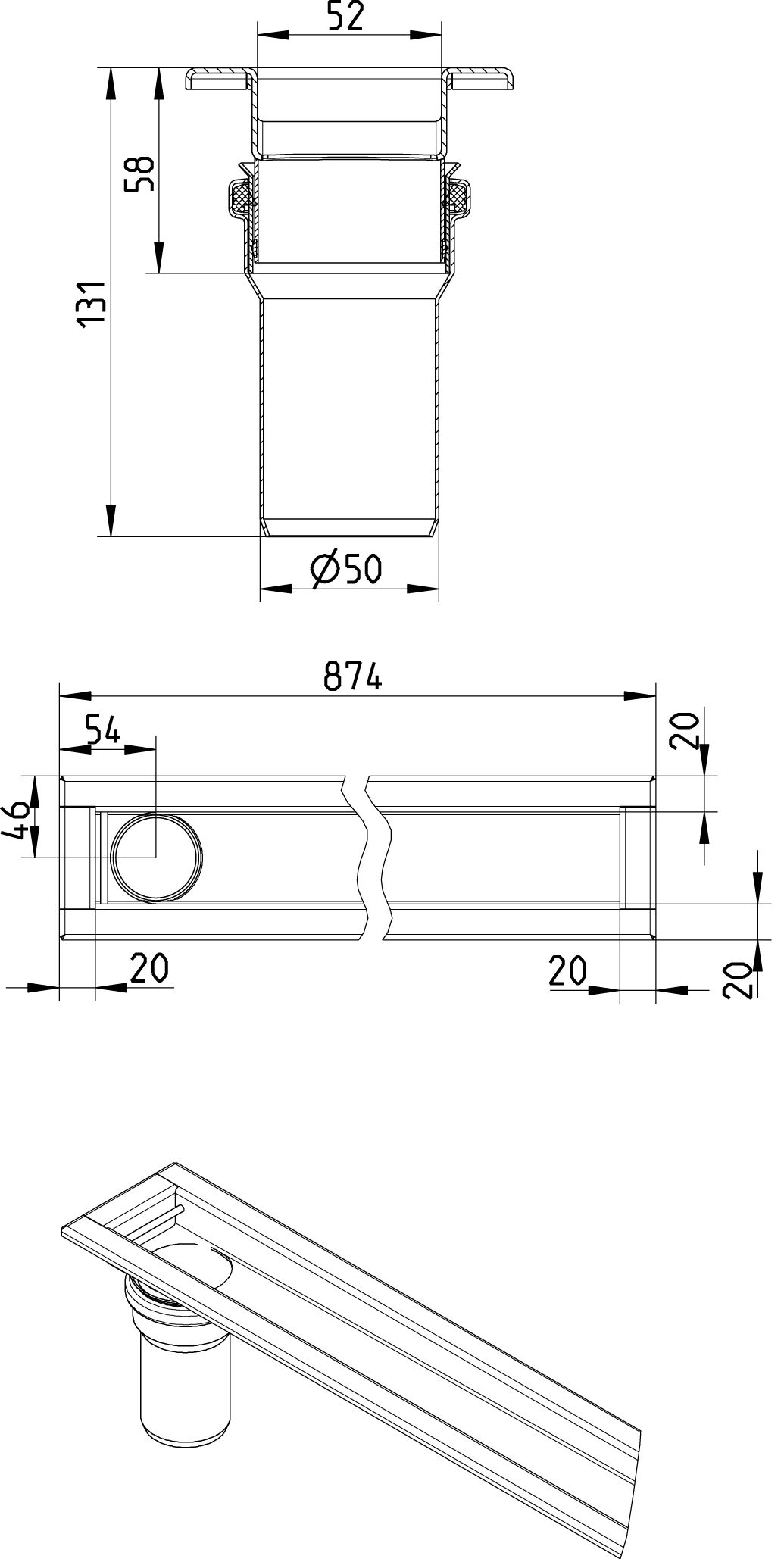

SHOWER CHANNEL WATERLINE 900
-Floor: concrete and tiled
-No membrane, frame: rectangular
-Outlet: Ø50mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Outlet Box | No |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Vertical |
| Outlet Placement | End |
| Shape | Rectangular |
| Size (Inch) | 2x35⅜ |
| Size (mm) | 50x900 |
| Weight (kg) | 1,62 |
| Weight (lbs) | 3,57 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
