GRATING LINE COPENHAGEN 900 - (697.004.090)
×
![]()
Part Of the Series: Grating-Shower channel
Type no.: 697.004.090
EAN no.: 5705499119282
VVS no.: 155071109
RSK no.: 7121730
NRF no.: 3394768
LVI no.: 3304431
Size: 50x900
GRATING LINE COPENHAGEN 900

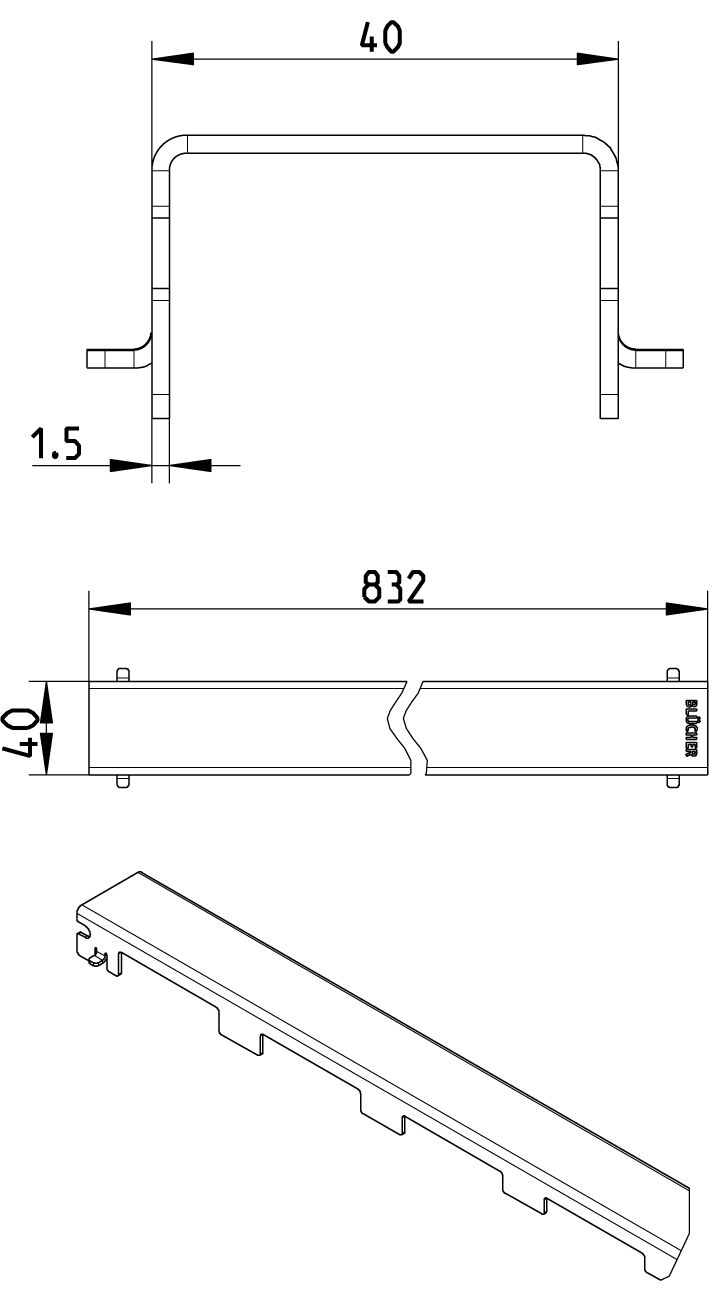

-Grating: 40x832mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 |
| Load class EN1253(lbs) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 1.1 |
| Number of Screws | 0 |
| Size (Inch) | 2x35⅜ |
| Size (mm) | 50x900 |
| Weight (kg) | 0,60 |
| Weight (lbs) | 1,32 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
