WATERLINE WATER TRAP VERTICAL - (510.004.110)
×
![]()
Part Of the Series: Water trap-Shower channel
Type no.: 510.004.110
EAN no.: 5705499138535
VVS no.: 155059210
NRF no.: 3395085

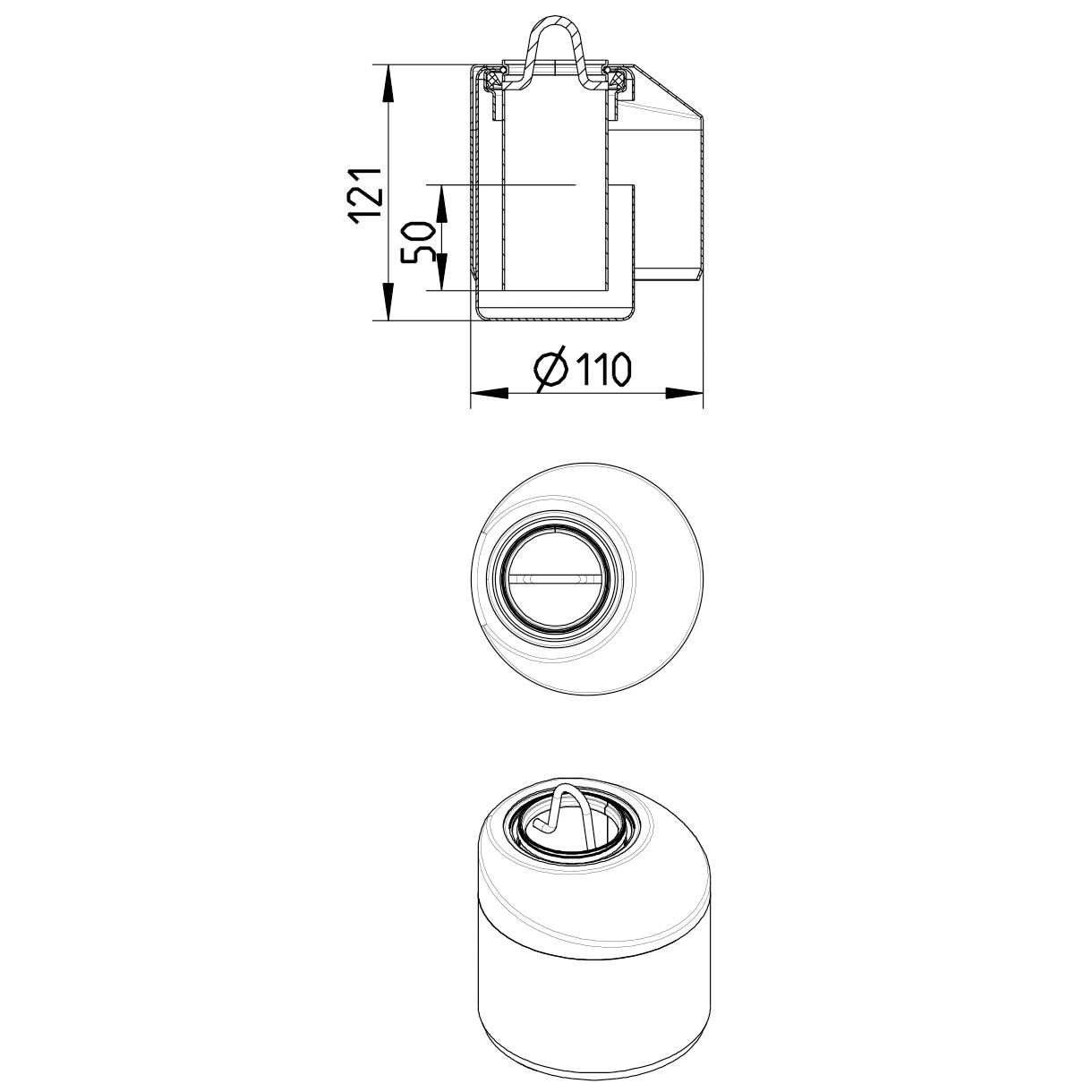

WATERLINE WATER TRAP VERTICAL
-To be built in, no retro-fitting
-Water seal height = 50mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 0.9 |
| Minimum Height (mm) | 121 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Water Seal Height (mm) | 50 |
| Weight (kg) | 0,76 |
| Weight (lbs) | 1,68 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
