LOWER PART FOR ROOF DRAIN - (403.004.110)
×
![]()
Part Of the Series: Lower part-bitumen
Type no.: 403.004.110
EAN no.: 5705499141467
VVS no.: 164122110

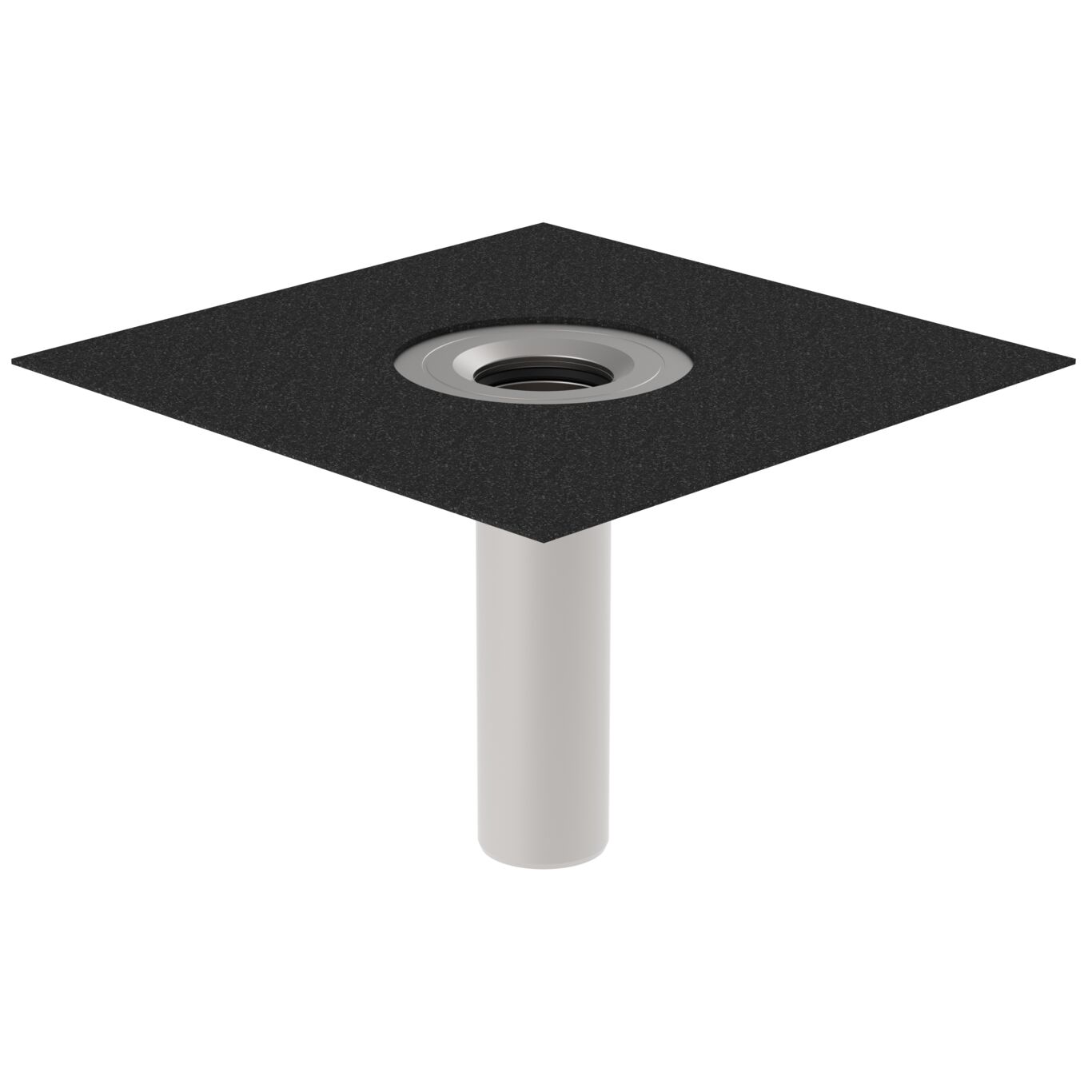

LOWER PART FOR ROOF DRAIN
-With pre-mounted bitumen collar
-Roof: Bitumen
-Flange: 400x400mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301

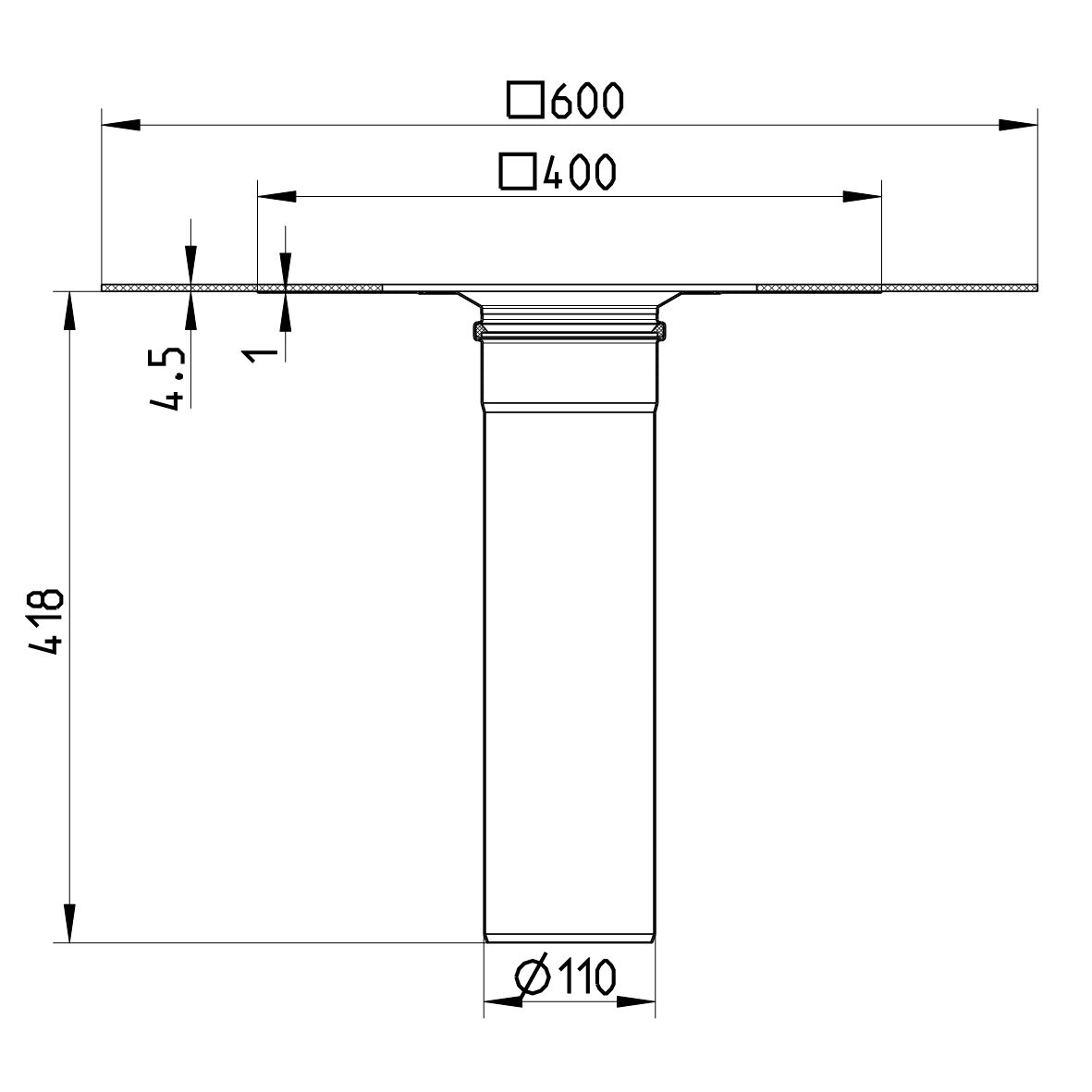

| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 418 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Roof | Bitumen |
| Weight (kg) | 4,00 |
| Weight (lbs) | 8,82 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
