LOWER PART FOR ROOF DRAIN - (403.000.075)
Part Of the Series: Lower part-bitumen
Type no.: 403.000.075
EAN no.: 5705499141412
VVS no.: 164122575

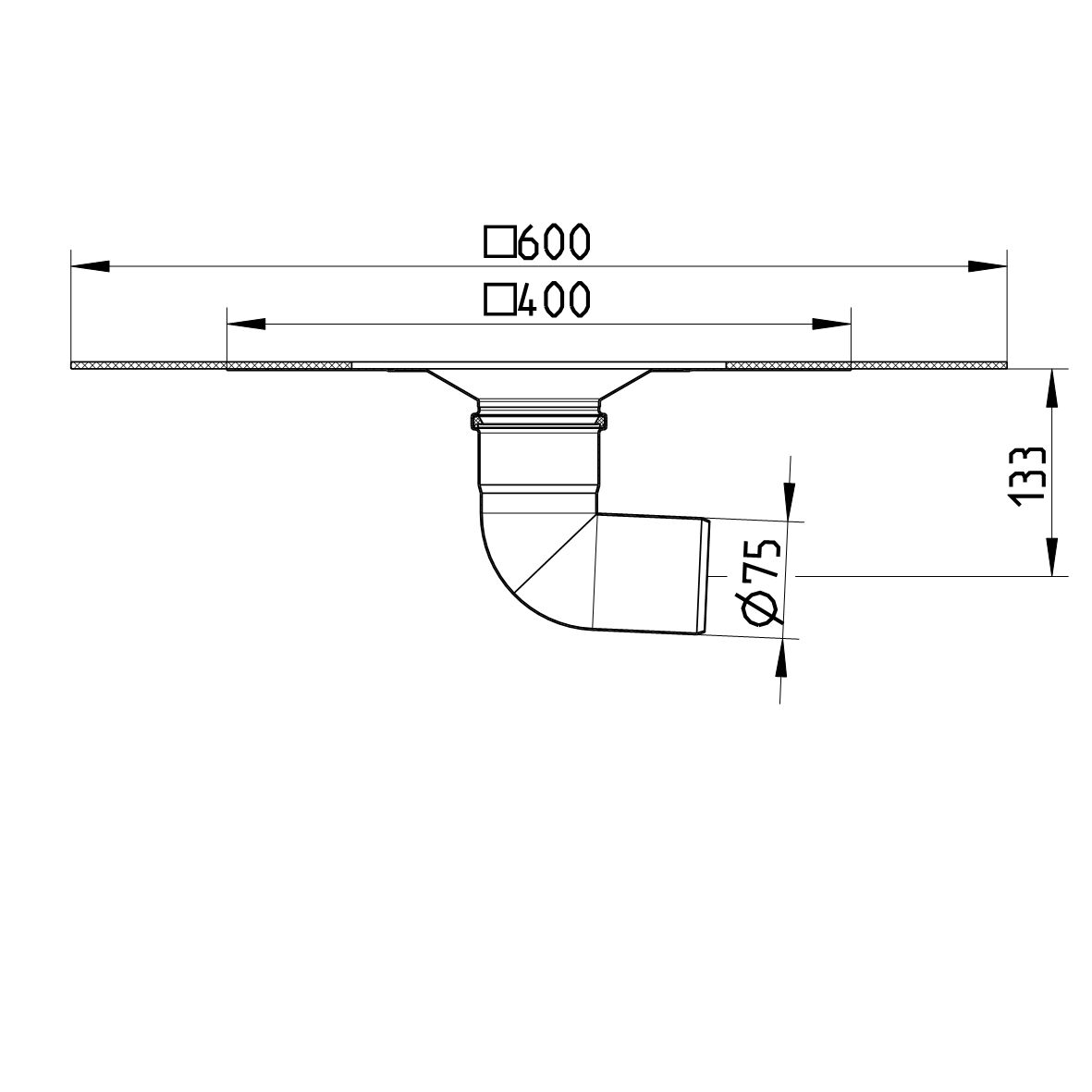

LOWER PART FOR ROOF DRAIN
-With pre-mounted bitumen collar
-Roof: Bitumen
-Flange: 400x400mm
-Outlet: Ø75mm, horizontal
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Outlet dia. (Inch) | 3 |
Outlet Diameter (mm) | 75 |
Outlet Direction | Horizontal |
Roof | Bitumen |
Weight (kg) | 3,23 |
Weight (lbs) | 7,12 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
