ROOF DRAIN FOR SIPHONIC - (401.206.040)
×
![]()
Part Of the Series: Drain for siphonic-bitumen
Type no.: 401.206.040
EAN no.: 5705499141238
RSK no.: 5173706

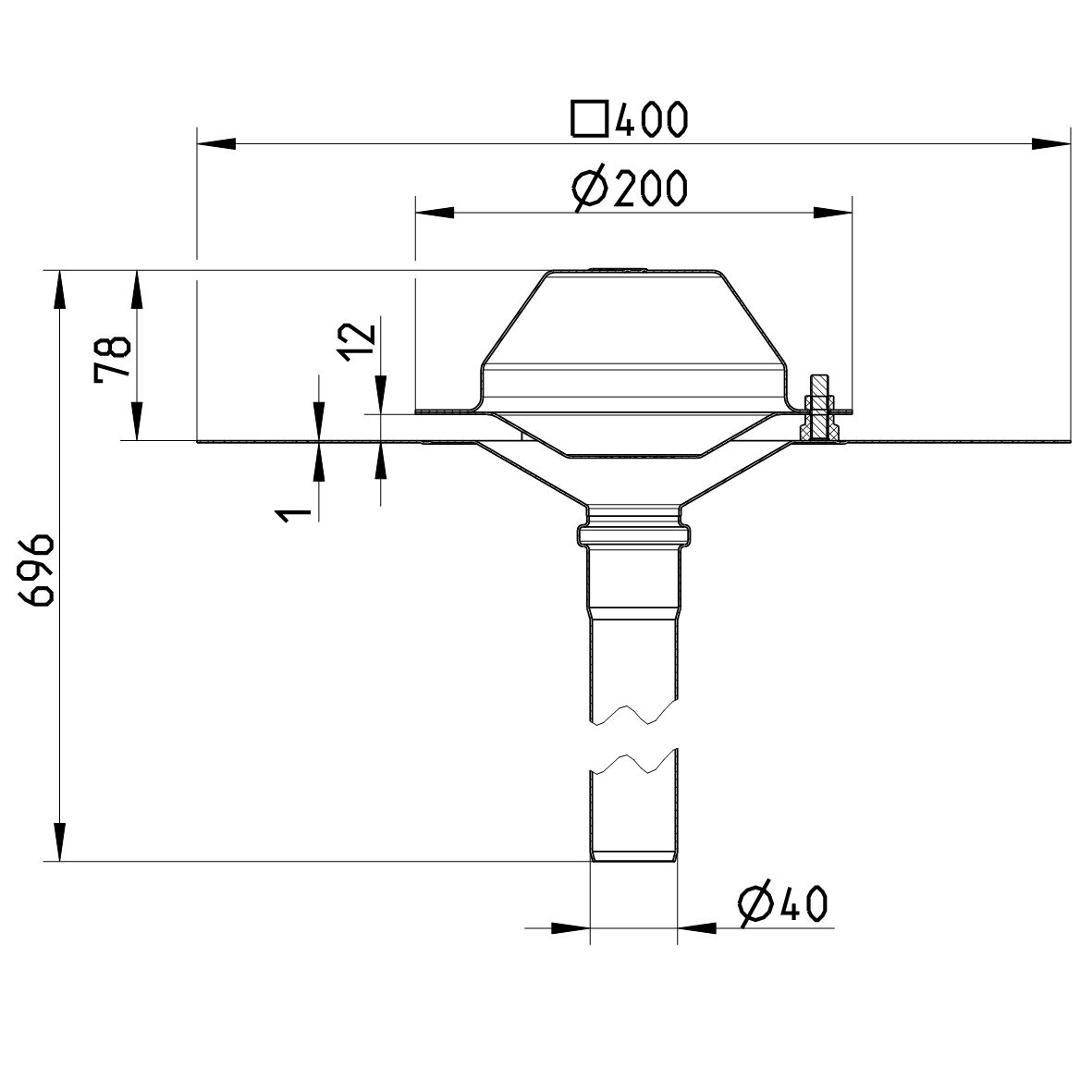

ROOF DRAIN FOR SIPHONIC
-Roof: Bitumen
-Flange: 400x400mm
-Outlet: Ø40mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 4.1 |
| Minimum Height (mm) | 696 |
| Outlet dia. (Inch) | 1½ |
| Outlet Diameter (mm) | 40 |
| Outlet Direction | Vertical |
| Roof | Bitumen |
| System | Siphonic |
| Weight (kg) | 2,54 |
| Weight (lbs) | 5,60 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
