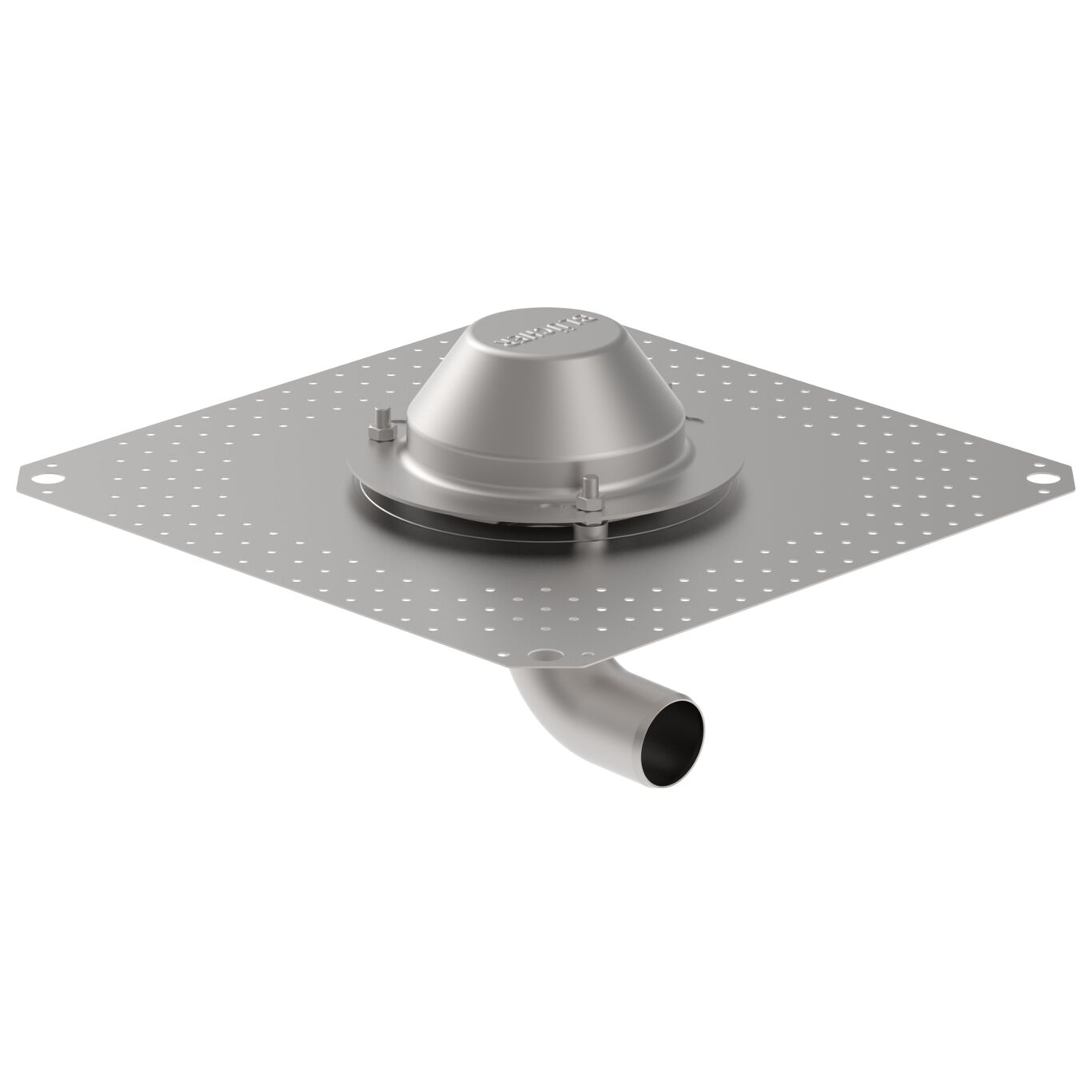

ROOF DRAIN FOR SIPHONIC - (401.200.050)
×
![]()
Part Of the Series: Drain for siphonic-bitumen
Type no.: 401.200.050
EAN no.: 5705499141207

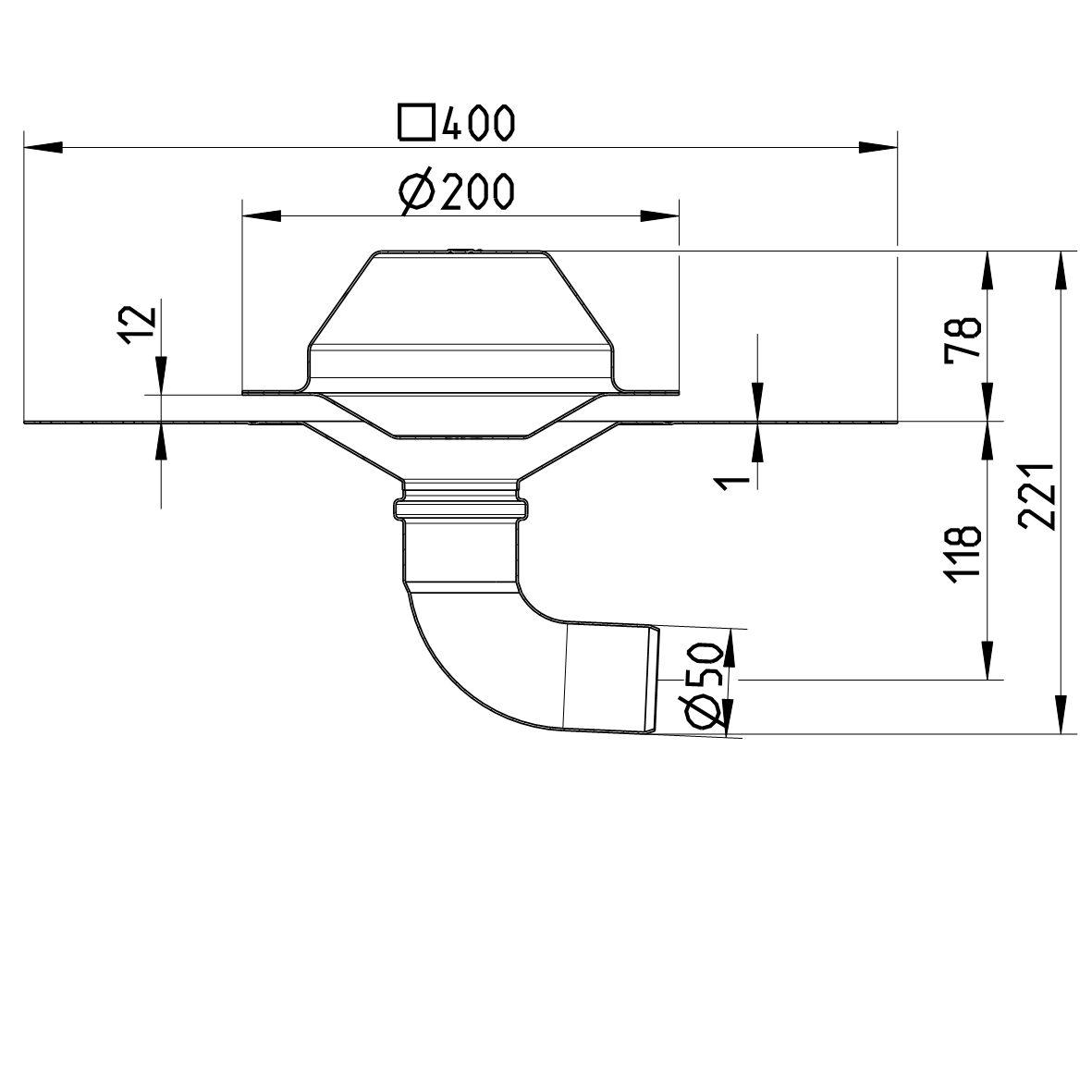

ROOF DRAIN FOR SIPHONIC
-Roof: Bitumen
-Flange: 400x400mm
-Outlet: Ø50mm, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 7.6 |
| Minimum Height (mm) | 221 |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Horizontal |
| Roof | Bitumen |
| System | Siphonic |
| Weight (kg) | 2,17 |
| Weight (lbs) | 4,78 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
