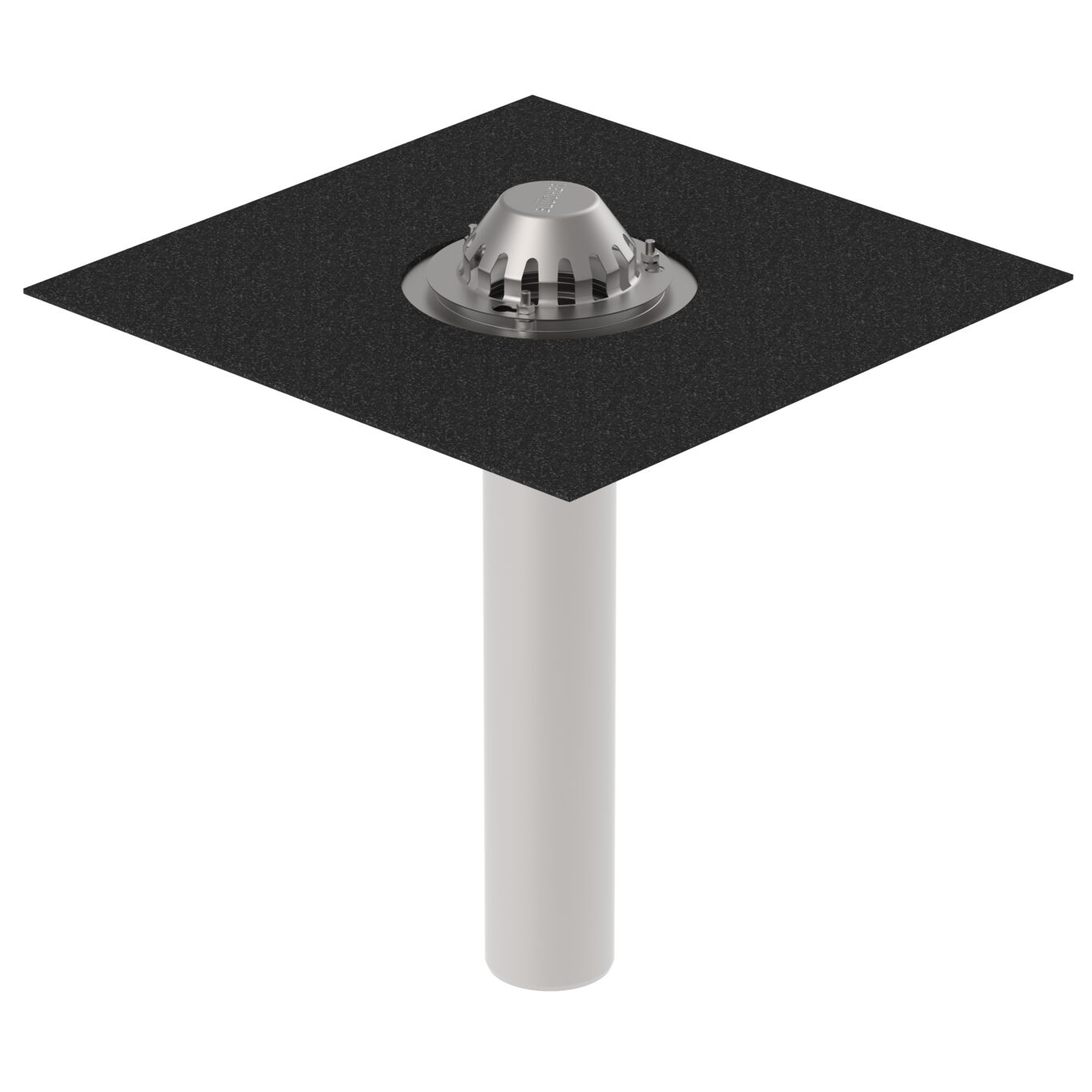

ROOF DRAIN FOR GRAVITY - (403.106.110)
×
![]()
Part Of the Series: Drain for gravity-bitumen collar
Type no.: 403.106.110
EAN no.: 5705499133417
VVS no.: 164104110
NRF no.: 3394572
LVI no.: 3384551
ROOF DRAIN FOR GRAVITY
-With pre-mounted bitumen collar
-Roof: bitumen

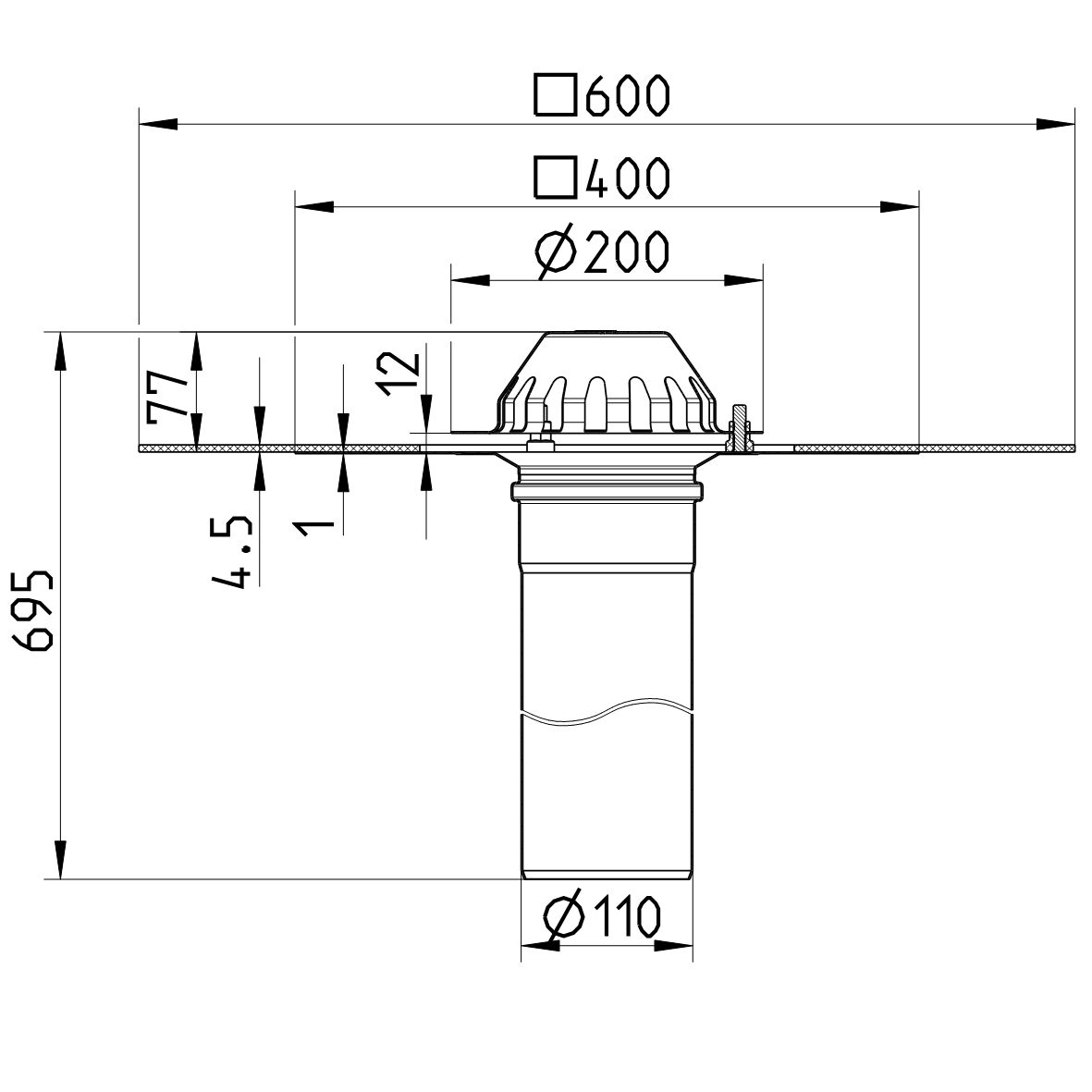

-Flange: 400x400mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 5.1 |
| Minimum Height (mm) | 695 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Roof | Bitumen |
| System | Gravity |
| Weight (kg) | 4,77 |
| Weight (lbs) | 10,52 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
