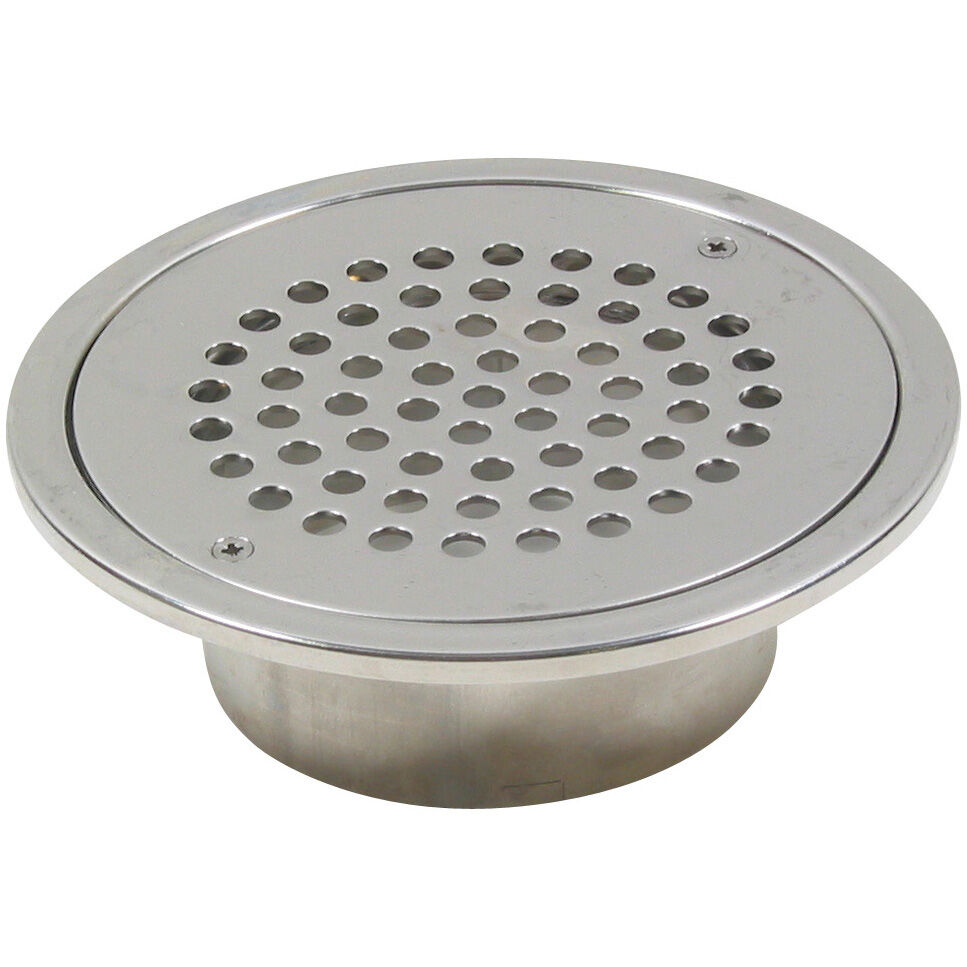

UPPER PART CIRCLE - (110.320.000 S)
Part Of the Series: Upper part-No membrane-180
Type no.: 110.320.000 S
EAN no.: 5705499118032
VVS no.: 153337316
LVI no.: 3304252
Size: Ø155
UPPER PART CIRCLE
-No supporting ring
-Floor: resin
-Frame: Ø180mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Field of Application | Domestic |
Floor | Resin |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Minimum Height (mm) | 59 |
Number of Screw Holes | 3 |
Outlet dia. (Inch) | 4 |
Outlet Diameter (mm) | 110 |
Shape | Round |
Size (Inch) | Ø6⅛ |
Size (mm) | Ø155 |
Weight (kg) | 0,55 |
Weight (lbs) | 1,21 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
