INTERMEDIATE SECTION - (145.300.110 S)
Part Of the Series: Intermediate section
Type no.: 145.300.110 S
EAN no.: 5705499107203

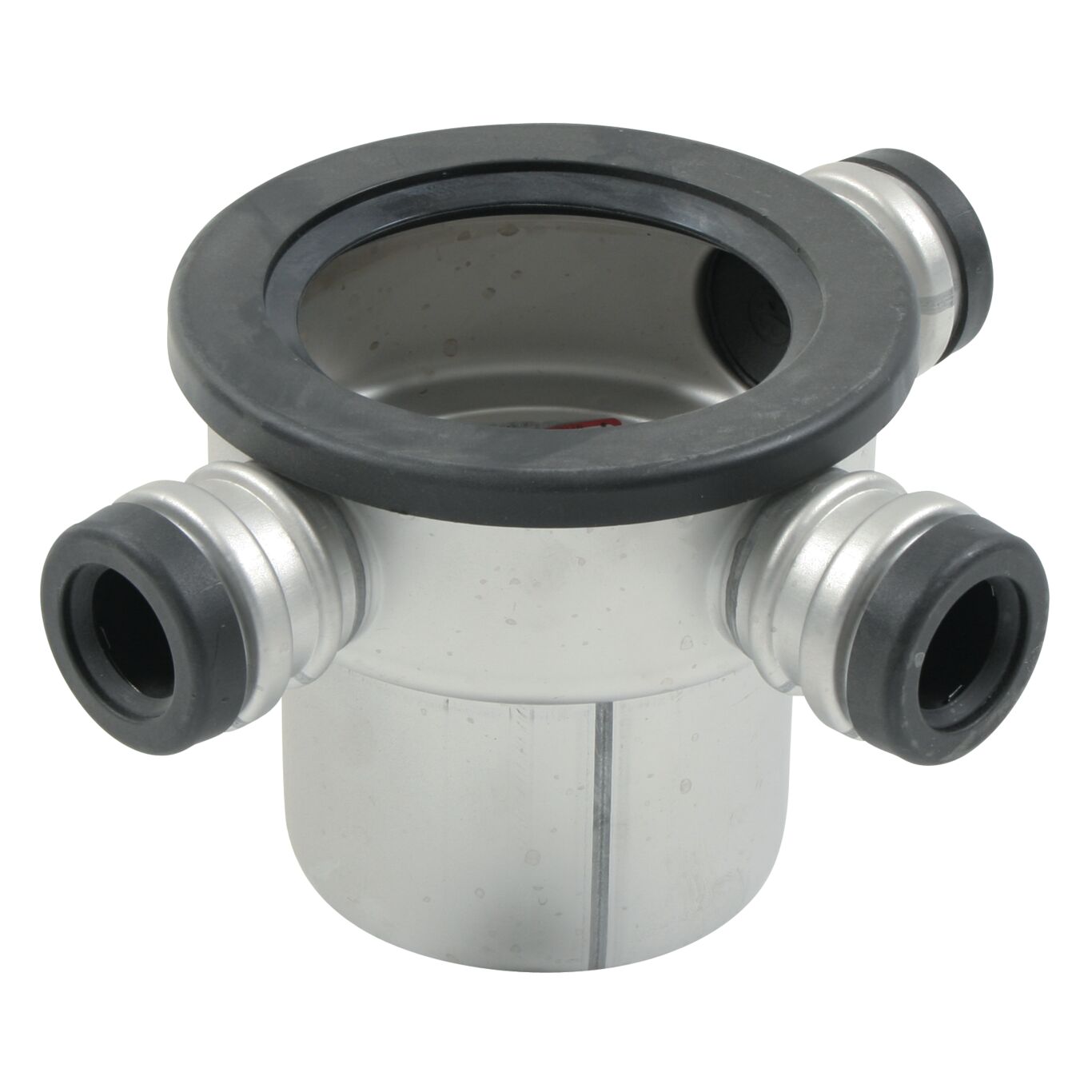

INTERMEDIATE SECTION
-With side inlets
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Field of Application | Domestic |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Minimum Height (mm) | 137 |
Number of Inlets | 3 (Ø32/40mm) |
Number of inlets (Inch) | 3 (Ø1¼"/1½") |
Outlet dia. (Inch) | 4 |
Outlet Diameter (mm) | 110 |
Weight (kg) | 1,00 |
Weight (lbs) | 2,2 |
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
