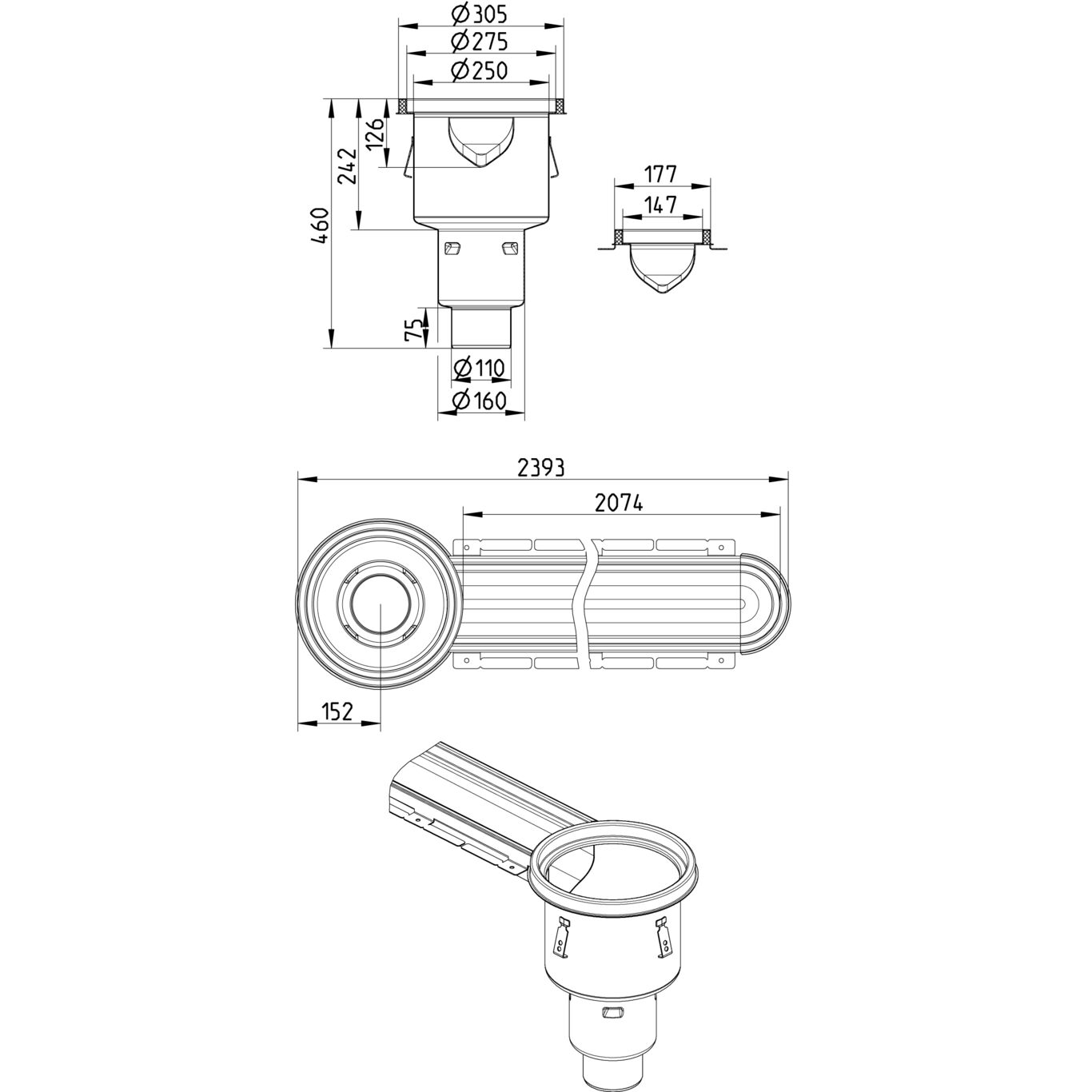

HYGIENICPRO CHANNEL 150x2000 END OUTLET - (676CC020-00DF)
Part Of the Series: Channel-No membrane
Type no.: 676CC020-00DF
EAN no.: 5705499135756
VVS no.: 221800120
LVI no.: 3305635
Size: 150x2000
HYGIENICPRO CHANNEL 150x2000 END OUTLET
-Medium model. With outlet box
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Field of Application | Industrial |
Floor | Concrete / Tiled / Resin |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Membrane Type | No Membrane |
Minimum Height (mm) | 460 |
Outlet Box | Yes |
Outlet dia. (Inch) | 4 |
Outlet Diameter (mm) | 110 |
Outlet Direction | Vertical |
Outlet Placement | End |
Shape | Rectangular |
Size (Inch) | 5⅞x78¾ |
Size (mm) | 150x2000 |
Weight (kg) | 20,18 |
Weight (lbs) | 44,49 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
