STRAIGHT PIPE WITH ONE SOCKET - (811.050.050)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.050.050
EAN no.: 5705499400366
VVS no.: 160122050
RSK no.: 1550033
NRF no.: 2170003
LVI no.: 0240083

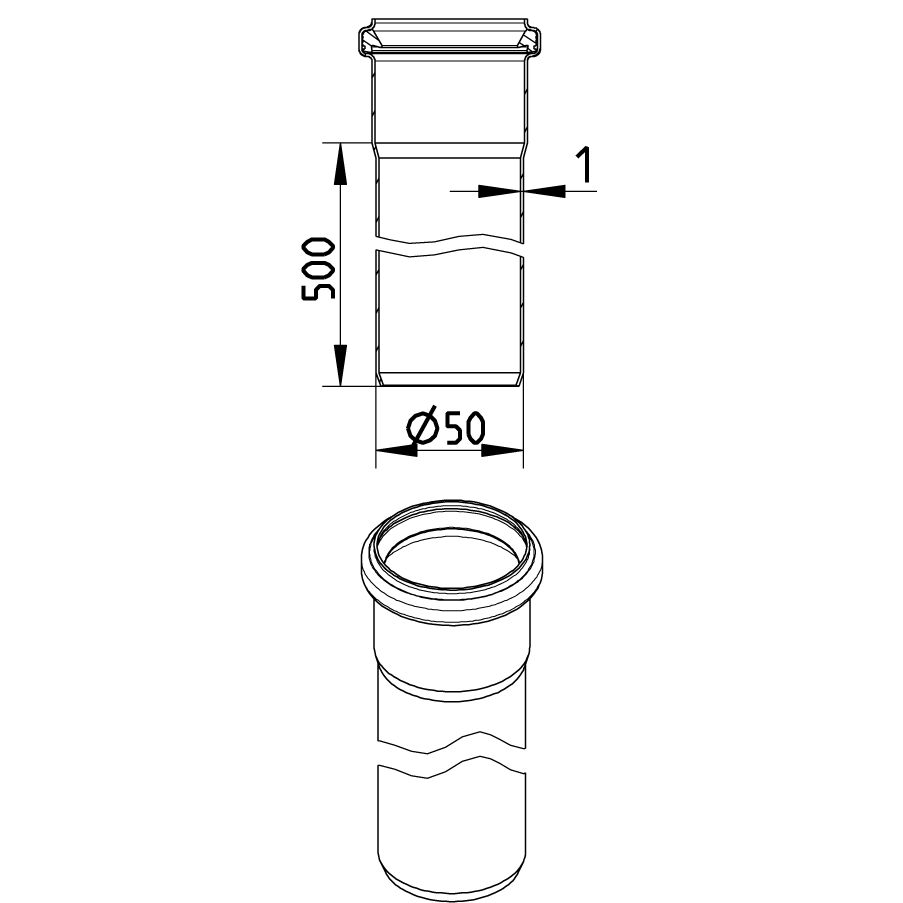

STRAIGHT PIPE WITH ONE SOCKET
-Length: 500mm
-Diameter: Ø50mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Length of straight pipe (Inch) | 1' 8" |
| Length of straight pipe (mm) | 500 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Weight (kg) | 0,68 |
| Weight (lbs) | 1,5 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DE - LGA Certificate 57214035 a
DK - VA 2.12/19349 EuroPipe DS432
NO - 0692-22 EuroPipe
AUS - WMKT00204 - 24
HACCP Food Safety Programme - Australasia
US - IAPMO File No.3247-EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe ABS - 23-2329630-PDA Achilles Certificate - 46702-22 Bureau Veritas, 02375-I0 Pipes & Fittings MARINE - R4547 NATO CODIFICATION SYSTEM UR - 1055745 Product approval, EuroPipe and Drains RINA -MAC285119XG EuroPipe PL - Hygienic Certificate - All Products Lloyds Register LR22419510TA_02 KR - Type Approval CPH42135-PE001 DNV - TAP0000023-rev5, Sanitary discharge pipes
