SOCKET PLUG - (844.000.050 S)
Part Of the Series: Socket plug
Type no.: 844.000.050 S
EAN no.: 5705499402933
VVS no.: 160263350
RSK no.: 1550331
NRF no.: 2170923
LVI no.: 0253232

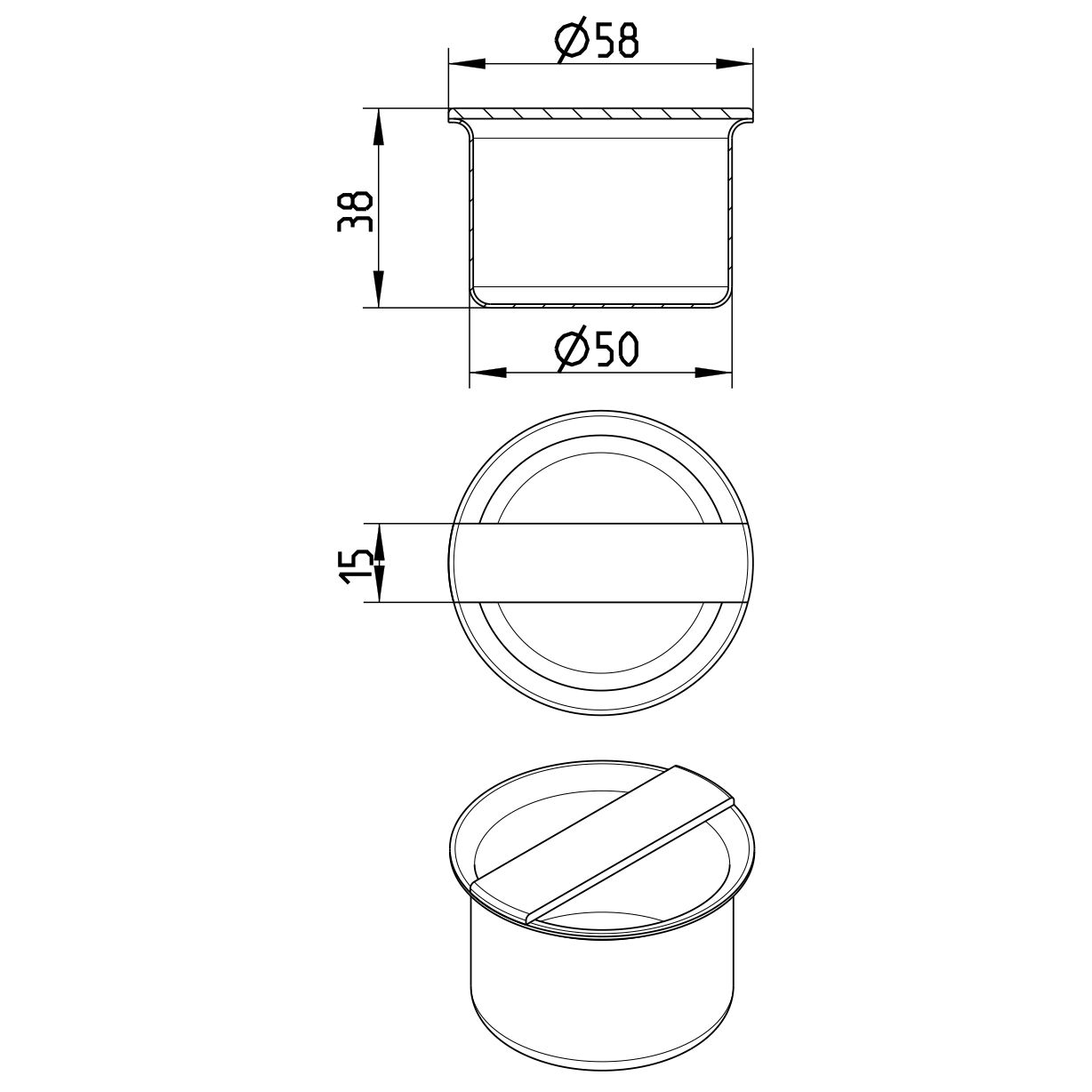

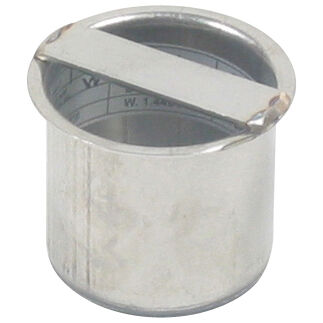

SOCKET PLUG
-Diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Minimum Height (mm) | 38 |
Outlet dia. (Inch) | 2 |
Outlet Diameter (mm) | 50 |
Weight (kg) | 0,06 |
Weight (lbs) | 0,22 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
NO - 0692-22 EuroPipe US - IAPMO File No.3247-EuroPipe HACCP Food Safety Programme - Australasia DE - LGA Certificate 57214035 a DK - VA 2.12/19349 EuroPipe DS432 HACCP Food Safety Programme - Europe AUS - WMKT00204 - 24 PL - Hygienic Certificate - All Products MARINE - R4547 NATO CODIFICATION SYSTEM Achilles Certificate - 46702-22 RINA -MAC285119XG EuroPipe KR - Type Approval CPH42135-PE001 UR - 1055745 Product approval, EuroPipe and Drains Lloyds Register LR22419510TA_02 ABS - 23-2329630-PDA Bureau Veritas, 02375-I0 Pipes & Fittings DNV - TAP0000023-rev5, Sanitary discharge pipes
