INCREASER CONCENTRIC - (850.050.110 CS)
×
![]()
Part Of the Series: Increaser-concentric
Type no.: 850.050.110 CS
EAN no.: 5705499408454
VVS no.: 160261654
NRF no.: 2172686
LVI no.: 0252183

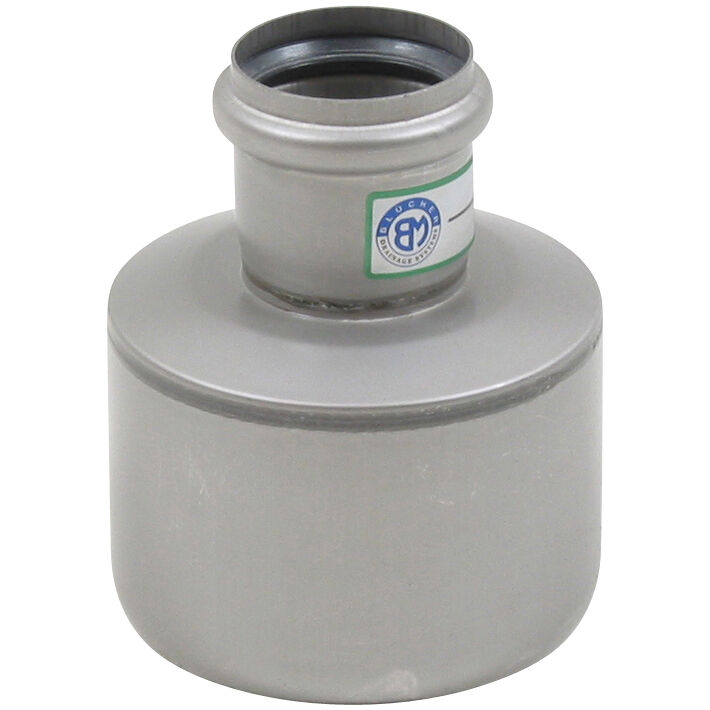

INCREASER CONCENTRIC

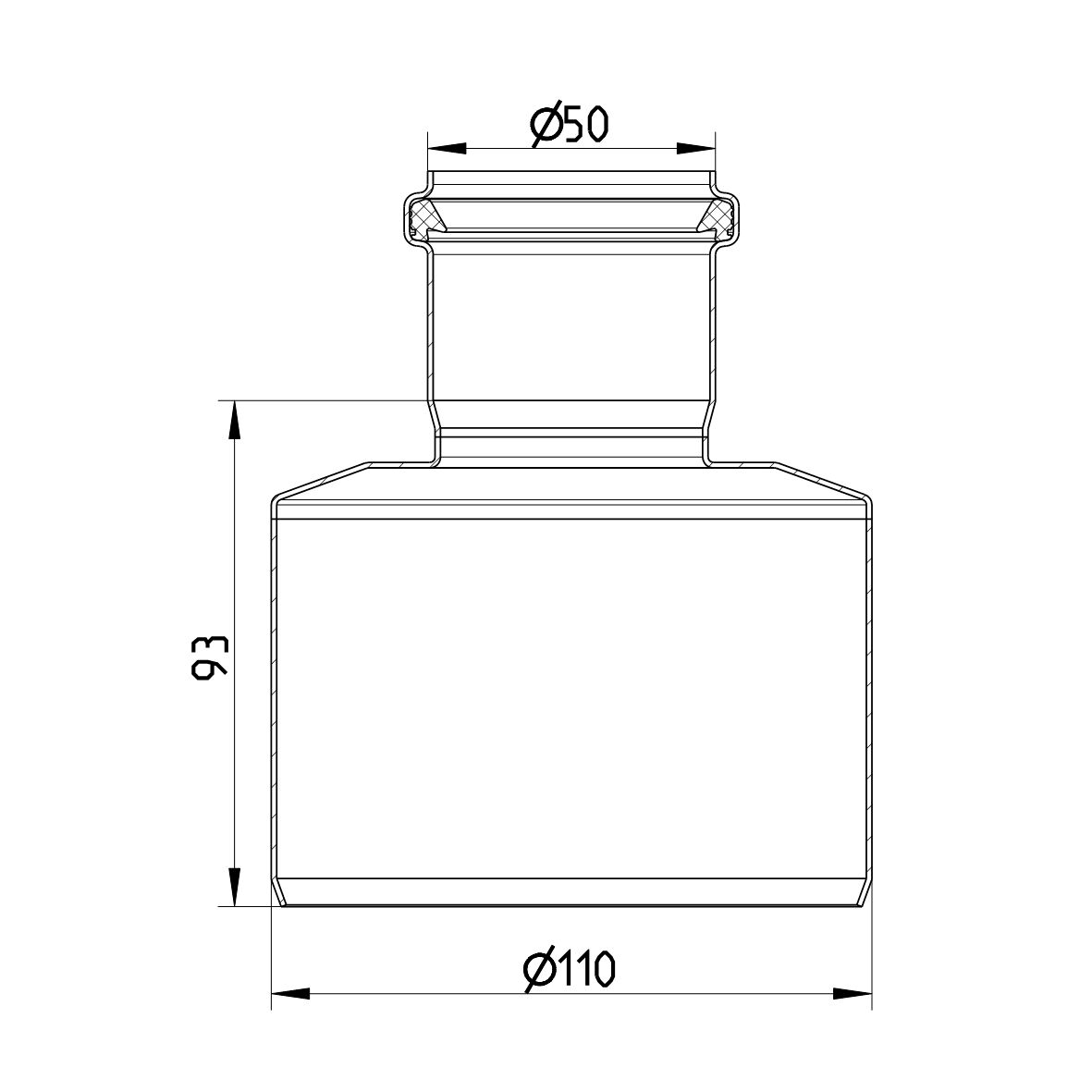

-Diameter: Ø50mm to Ø110mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Length (mm) | 94 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Weight (kg) | 0,30 |
| Weight (lbs) | 0,66 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
FR - DTA 14.1/12-1811_V3 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
NO - 0692-22 EuroPipe
HACCP Food Safety Programme - Europe
US - IAPMO File No.3247-EuroPipe
DE - LGA Certificate 57214035 a MARINE - R4547 NATO CODIFICATION SYSTEM PL - Hygienic Certificate - All Products DNV - TAP0000023-rev5, Sanitary discharge pipes UR - 1055745 Product approval, EuroPipe and Drains KR - Type Approval CPH42135-PE001 ABS - 23-2329630-PDA Lloyds Register LR22419510TA_02 Bureau Veritas, 02375-I0 Pipes & Fittings RINA -MAC285119XG EuroPipe Achilles Certificate - 46702-22
