SWEPT BRANCH 89° - (839.050.075 AS)
×
![]()
Part Of the Series: Swept branch-89-long bend
Type no.: 839.050.075 AS
EAN no.: 5705499409383
NRF no.: 2172636

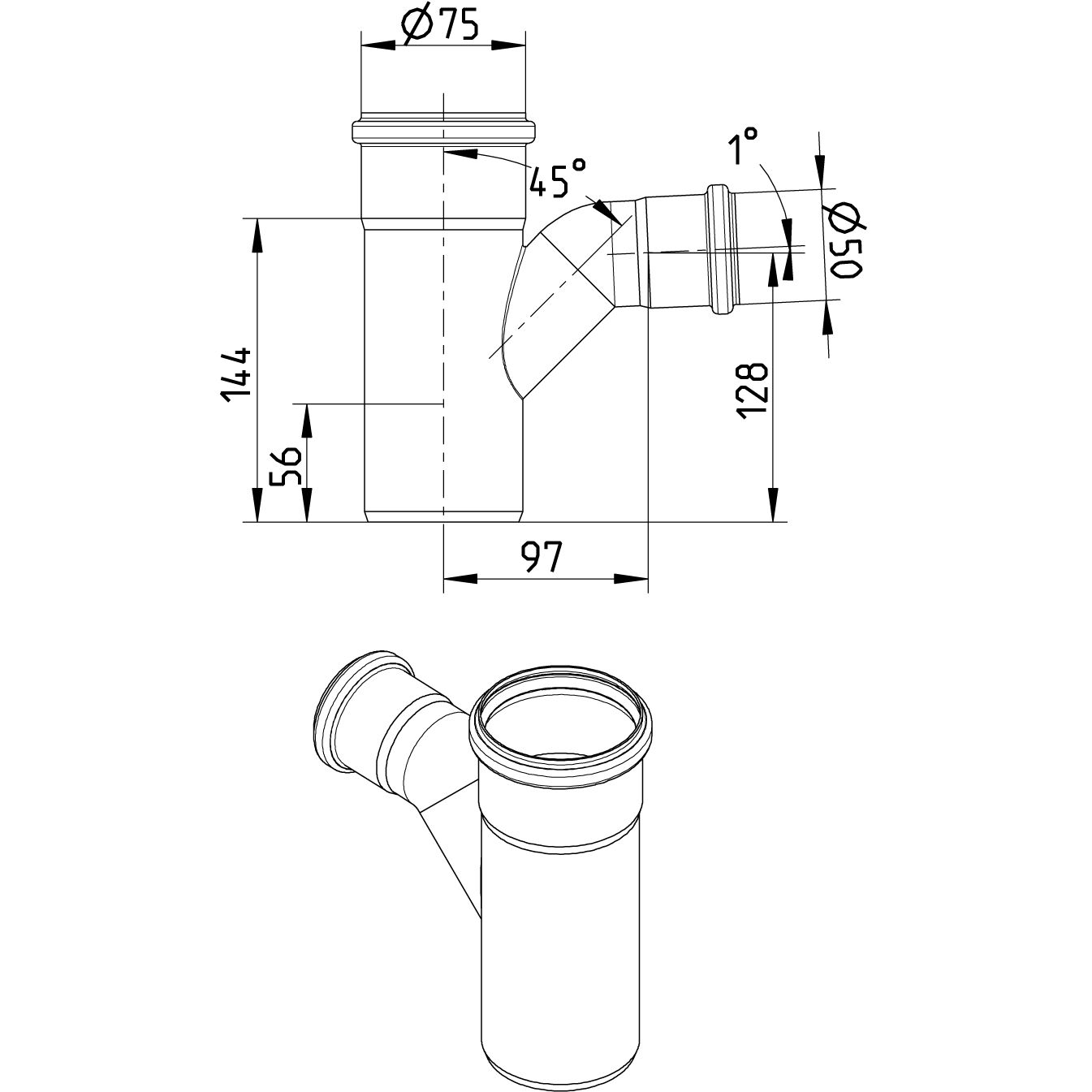

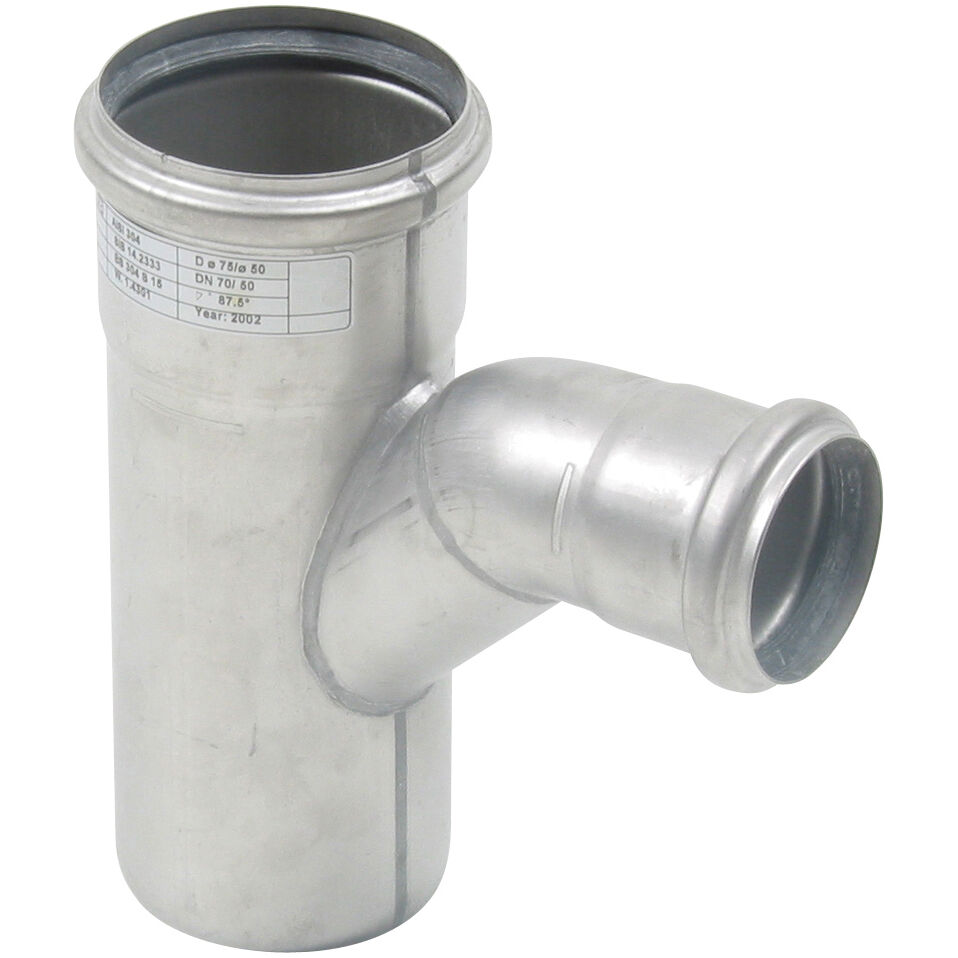

SWEPT BRANCH 89°
-Pipe diameter: Ø75mm. Branch diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 89 |
| Length (mm) | 144 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 0,60 |
| Weight (lbs) | 1,32 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
NO - 0692-22 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
HACCP Food Safety Programme - Europe
US - IAPMO File No.3247-EuroPipe UR - 1055745 Product approval, EuroPipe and Drains KR - Type Approval CPH42135-PE001 RU - 0212322 Pipes-21 PL - Hygienic Certificate - All Products Achilles Certificate - 46702-22
