SWEPT BRANCH 87.5° - (839.050.075)
×
![]()
Part Of the Series: Swept branch-87.5-long bend
Type no.: 839.050.075
EAN no.: 5705499402537
VVS no.: 160222073
RSK no.: 1550182
NRF no.: 2170087
LVI no.: 0245235

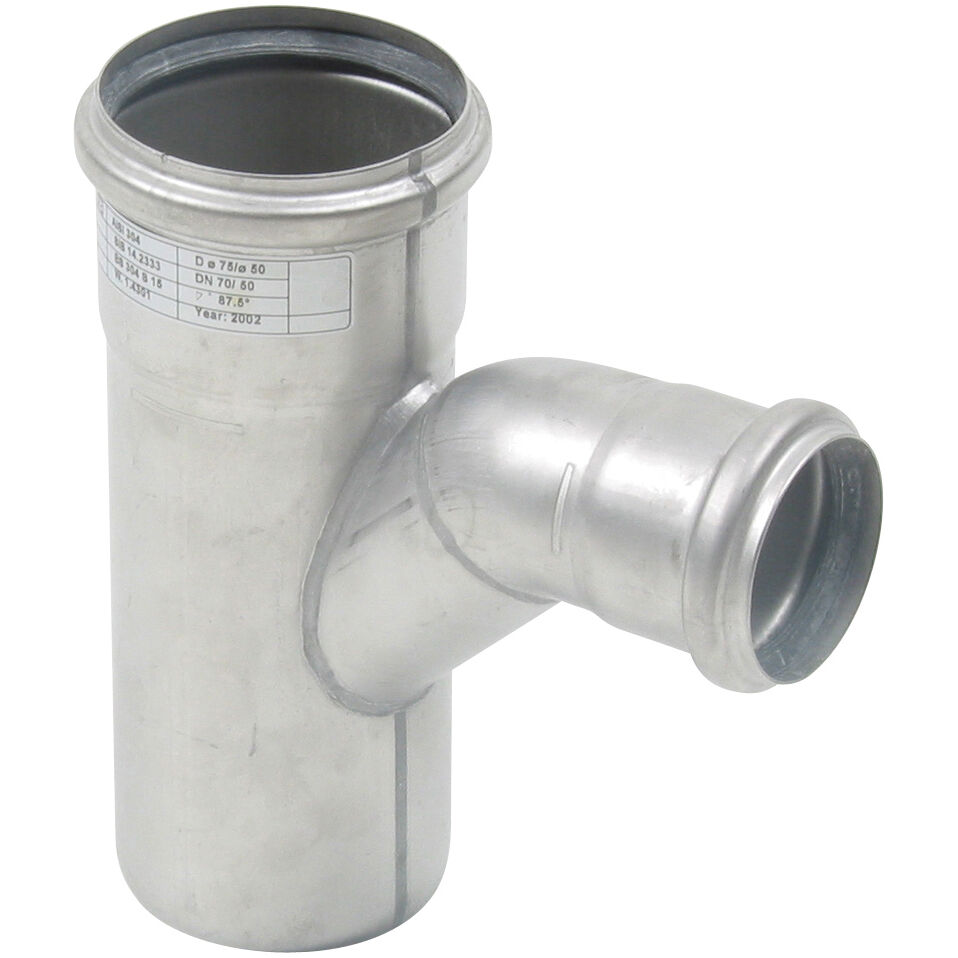

SWEPT BRANCH 87.5°

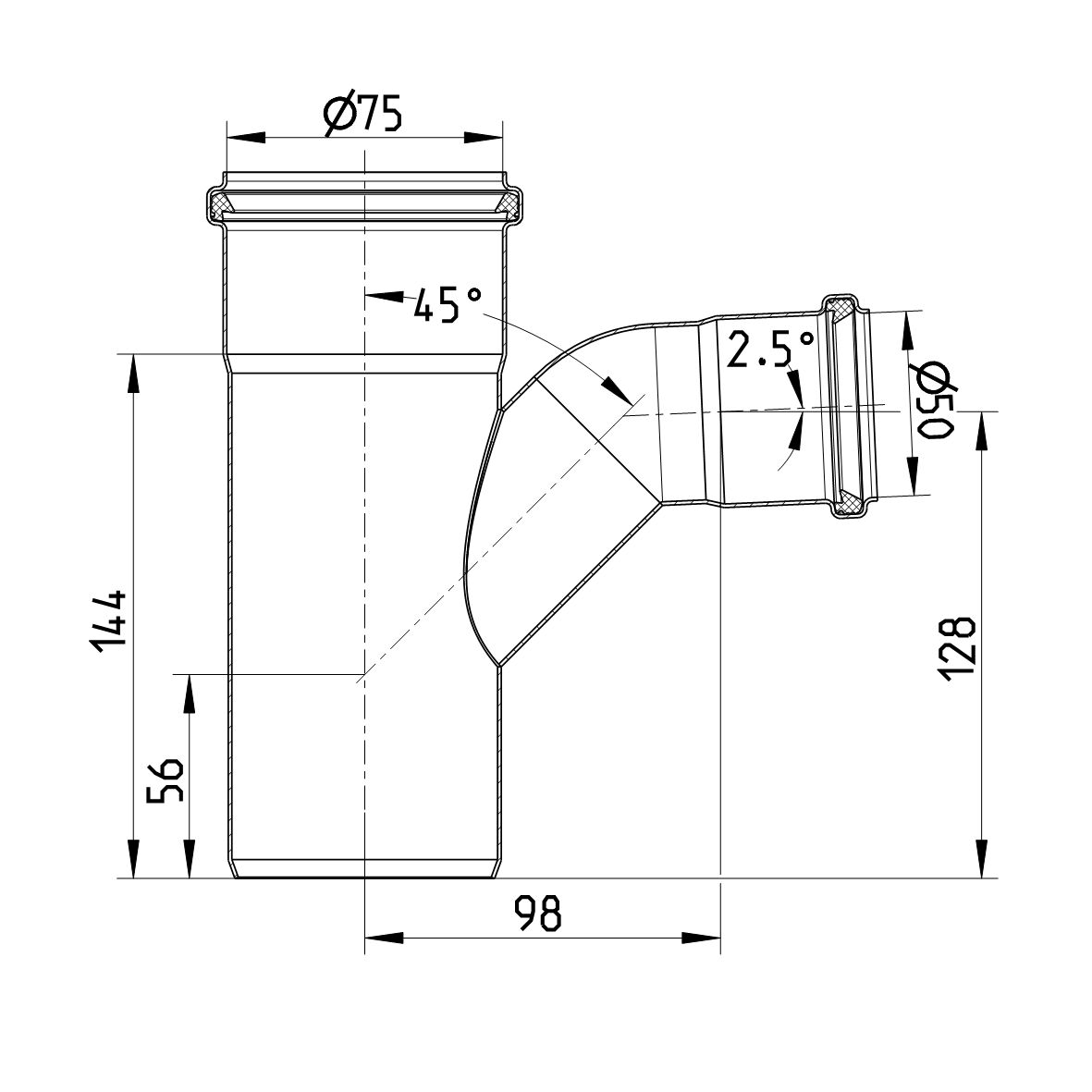

-Pipe diameter: Ø75mm. Branch diameter: Ø50mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 144 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 0,60 |
| Weight (lbs) | 1,32 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DK - VA 2.12/19349 EuroPipe DS432
HACCP Food Safety Programme - Europe
US - IAPMO File No.3247-EuroPipe Lloyds Register LR22419510TA_02 UR - 1055745 Product approval, EuroPipe and Drains KR - Type Approval CPH42135-PE001 RINA -MAC285119XG EuroPipe MARINE - R4547 NATO CODIFICATION SYSTEM DNV - TAP0000023-rev5, Sanitary discharge pipes Achilles Certificate - 46702-22 ABS - 23-2329630-PDA Bureau Veritas, 02375-I0 Pipes & Fittings PL - Hygienic Certificate - All Products
