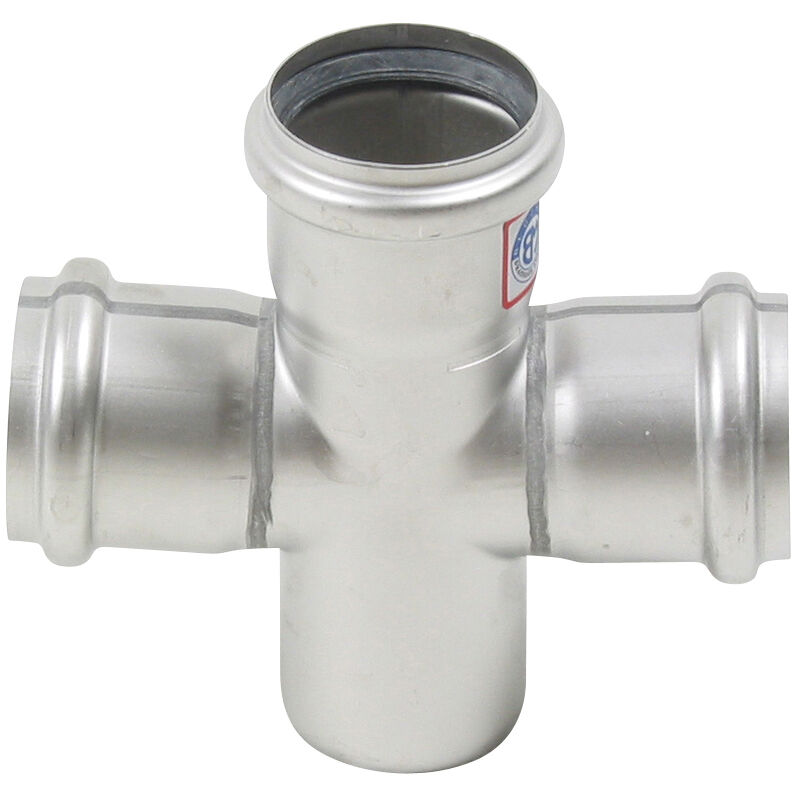

DOUBLE BRANCH 89° - (831.050.050 AS)
×
![]()
Part Of the Series: Double branch-89-180
Type no.: 831.050.050 AS
EAN no.: 5705499409031
NRF no.: 2172575

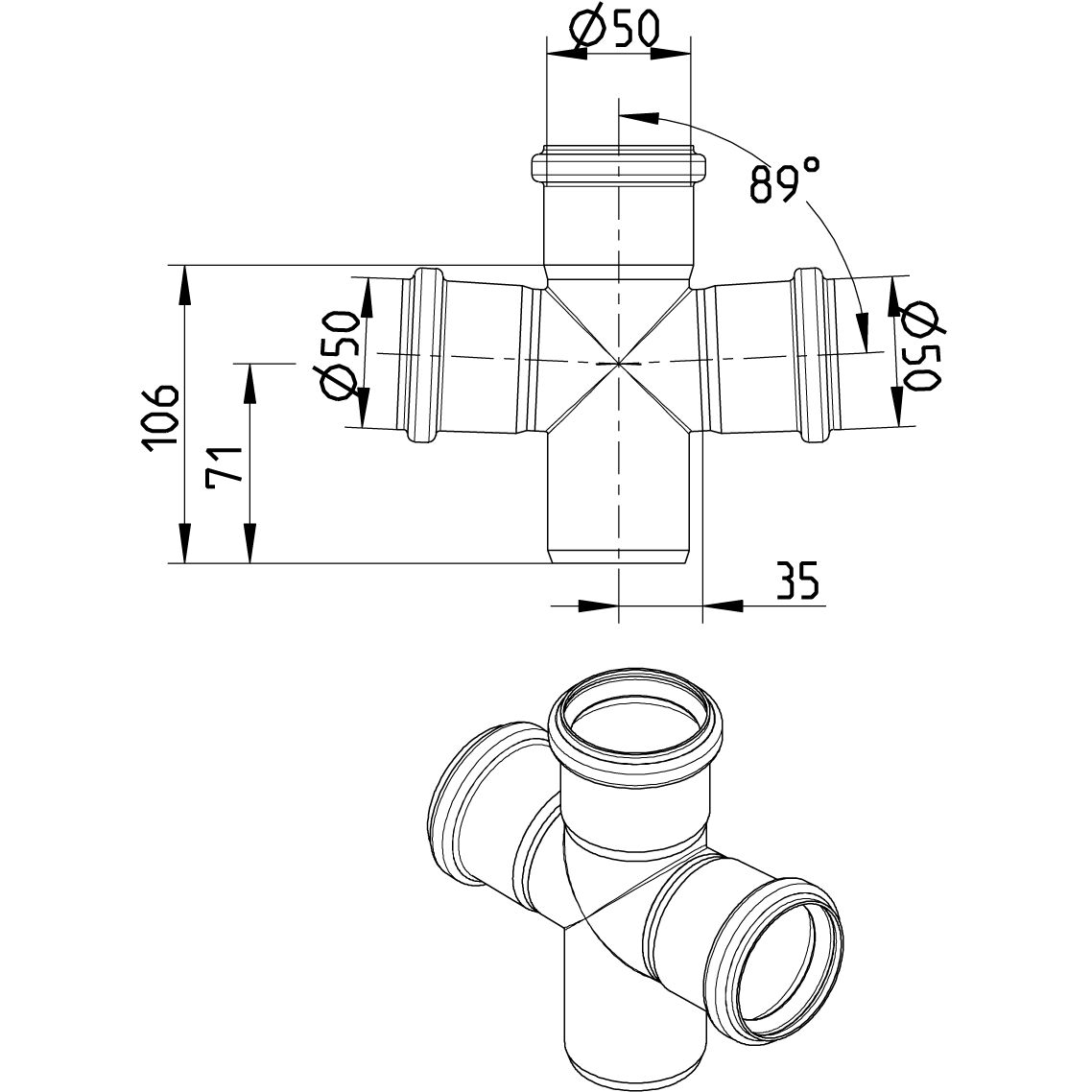

DOUBLE BRANCH 89°
-Pipe diameter: Ø50mm. Branch diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 89 |
| Length (mm) | 106 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Weight (kg) | 0,36 |
| Weight (lbs) | 0,79 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
