DOUBLE BRANCH 87.5° - (832.050.050)
×
![]()
Part Of the Series: Double branch-87.5-90
Type no.: 832.050.050
EAN no.: 5705499401943
VVS no.: 160232050
NRF no.: 2172348
LVI no.: 0244952

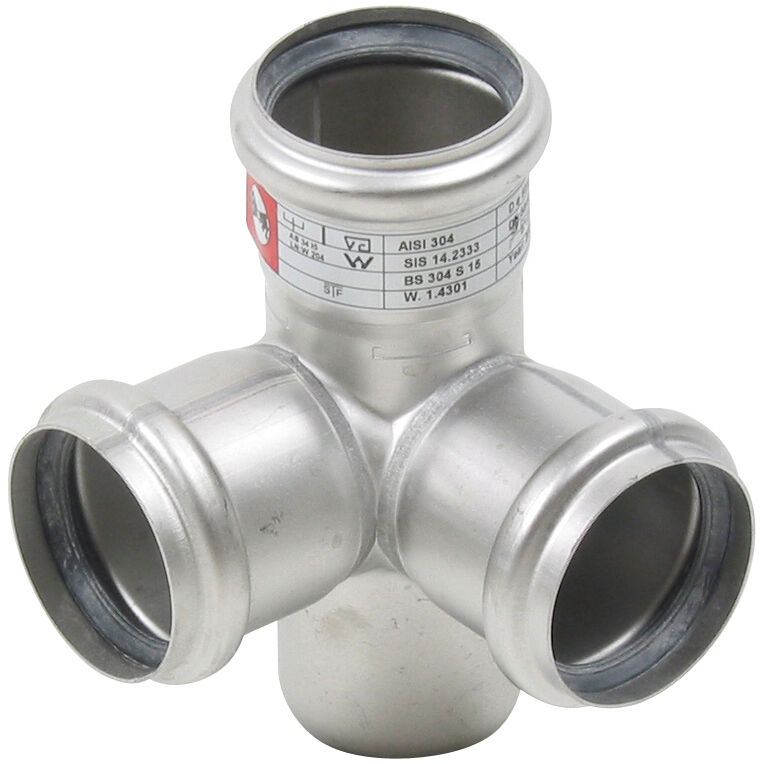

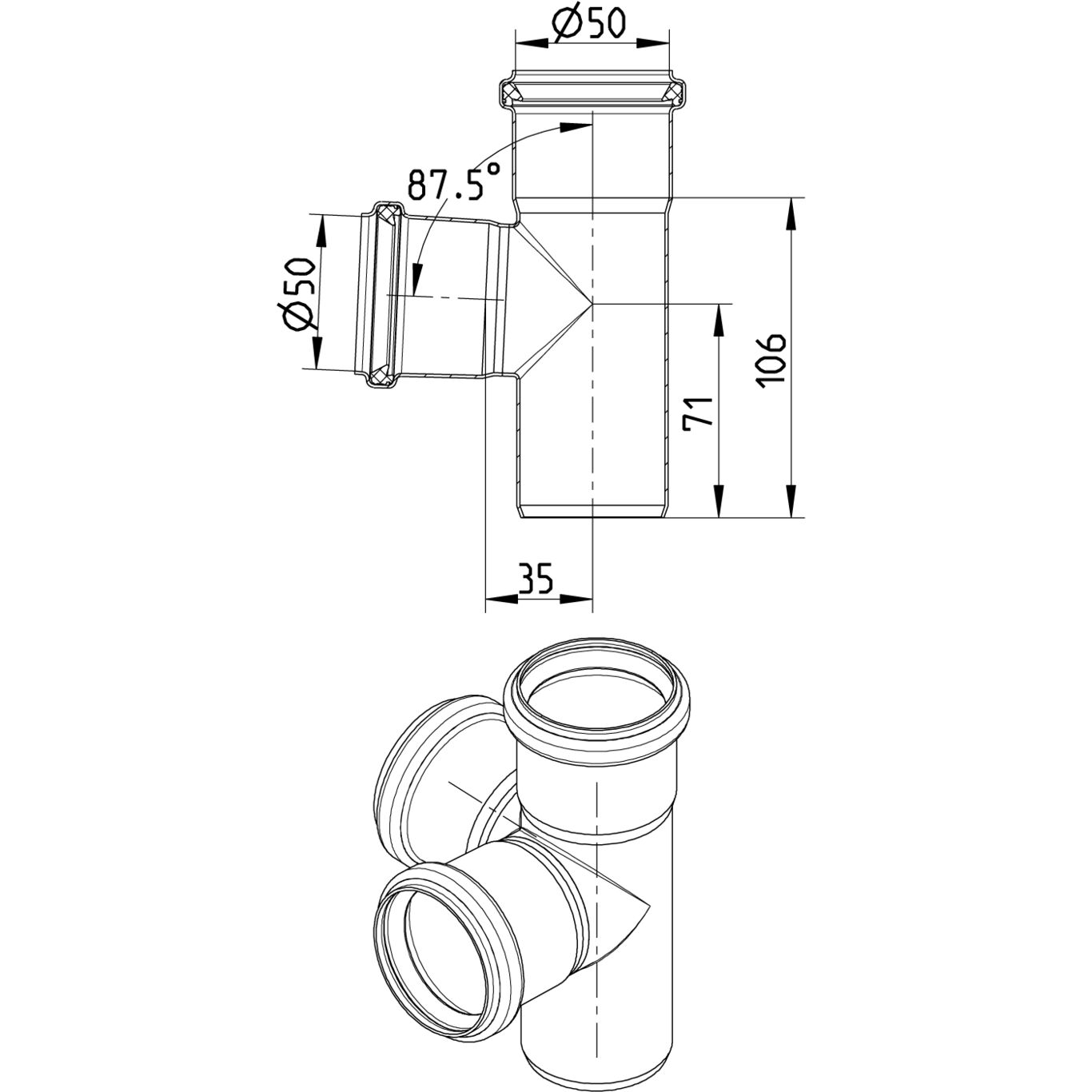

DOUBLE BRANCH 87.5°
-Pipe diameter: Ø50mm. Branch diameter: Ø50mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 106 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Weight (kg) | 0,35 |
| Weight (lbs) | 0,79 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
AUS - WMKT00204 - 24
DE - LGA Certificate 57214035 a
HACCP Food Safety Programme - Australasia
NO - 0692-22 EuroPipe
US - IAPMO File No.3247-EuroPipe
DK - VA 2.12/19349 EuroPipe DS432 RINA -MAC285119XG EuroPipe KR - Type Approval CPH42135-PE001 Bureau Veritas, 02375-I0 Pipes & Fittings DNV - TAP0000023-rev5, Sanitary discharge pipes MARINE - R4547 NATO CODIFICATION SYSTEM PL - Hygienic Certificate - All Products UR - 1055745 Product approval, EuroPipe and Drains Lloyds Register LR22419510TA_02 ABS - 23-2329630-PDA
