DOUBLE BRANCH 87.5° - (831.050.110 S)
×
![]()
Part Of the Series: Double branch-87.5-180
Type no.: 831.050.110 S
EAN no.: 5705499401837
VVS no.: 160231406
RSK no.: 1549403
NRF no.: 2172578
LVI no.: 0254158

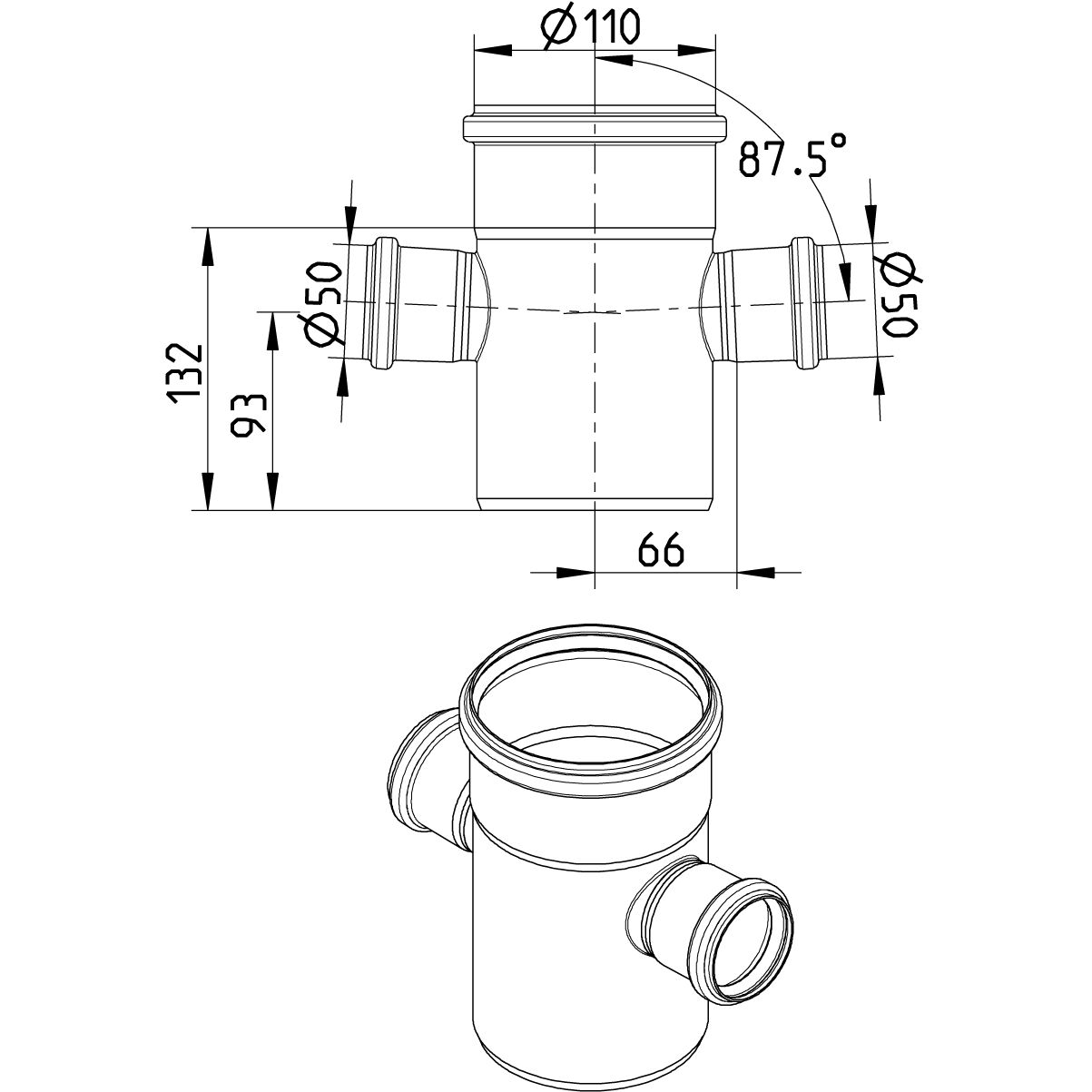

DOUBLE BRANCH 87.5°
-Pipe diameter: Ø110mm. Branch diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 132 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Weight (kg) | 0,70 |
| Weight (lbs) | 1,59 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Europe
DE - LGA Certificate 57214035 a
US - IAPMO File No.3247-EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
NO - 0692-22 EuroPipe
AUS - WMKT00204 - 24 Lloyds Register LR22419510TA_02 RINA -MAC285119XG EuroPipe UR - 1055745 Product approval, EuroPipe and Drains MARINE - R4547 NATO CODIFICATION SYSTEM PL - Hygienic Certificate - All Products KR - Type Approval CPH42135-PE001 Bureau Veritas, 02375-I0 Pipes & Fittings ABS - 23-2329630-PDA DNV - TAP0000023-rev5, Sanitary discharge pipes Achilles Certificate - 46702-22
