DOUBLE BRANCH 87.5° - (831.050.050)
×
![]()
Part Of the Series: Double branch-87.5-180
Type no.: 831.050.050
EAN no.: 5705499401783
VVS no.: 160231050
NRF no.: 2170111
LVI no.: 0244153

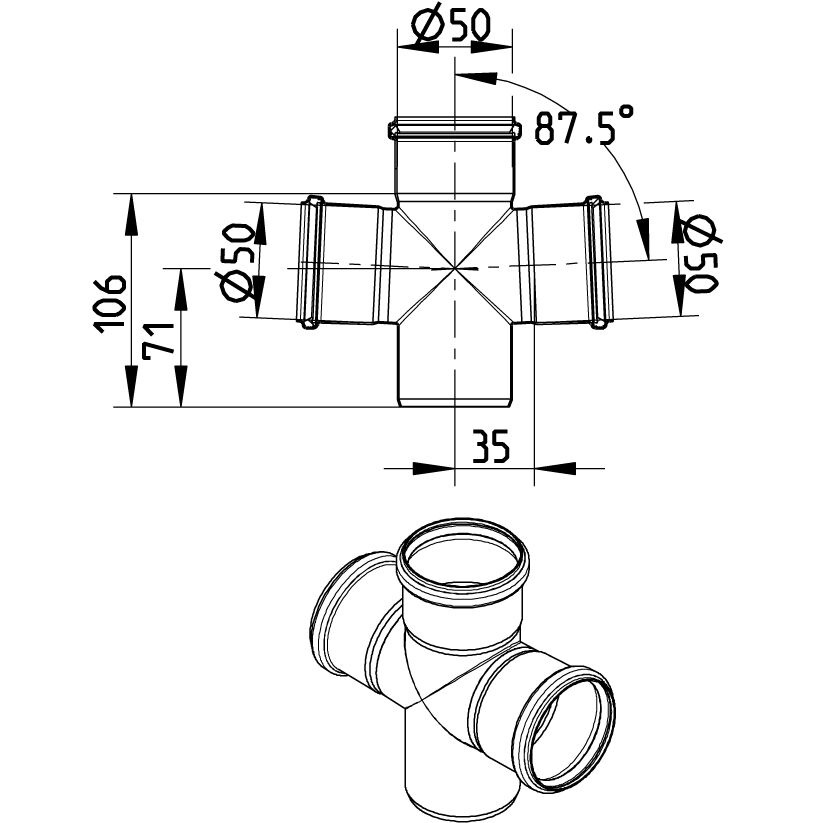

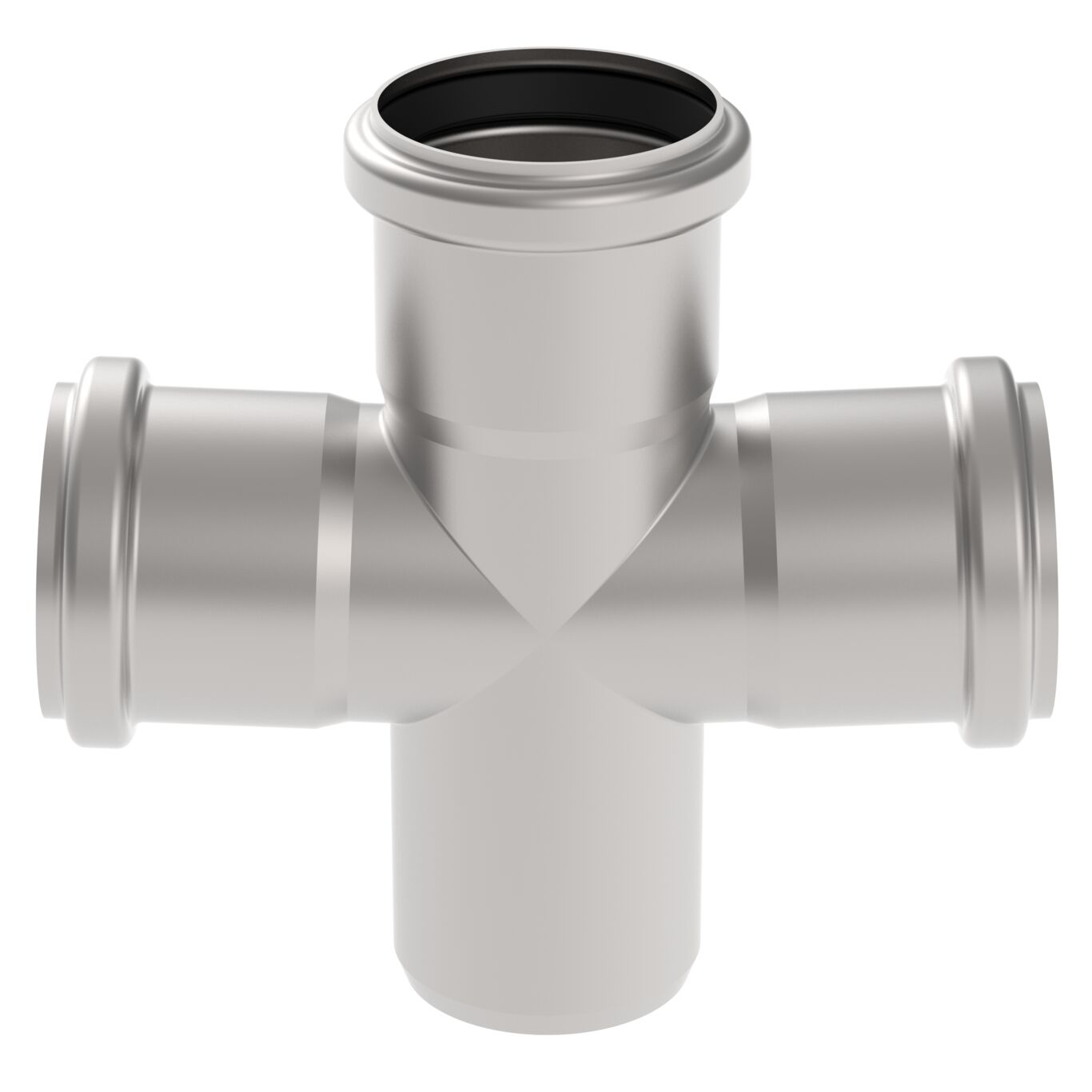

DOUBLE BRANCH 87.5°
-Pipe diameter: Ø50mm. Branch diameter: Ø50mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 106 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Weight (kg) | 0,36 |
| Weight (lbs) | 0,79 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Australasia
AUS - WMKT00204 - 24
DK - VA 2.12/19349 EuroPipe DS432
US - IAPMO File No.3247-EuroPipe
NO - 0692-22 EuroPipe
DE - LGA Certificate 57214035 a
FR - DTA 14.1/12-1811_V3 EuroPipe Achilles Certificate - 46702-22 KR - Type Approval CPH42135-PE001 UR - 1055745 Product approval, EuroPipe and Drains PL - Hygienic Certificate - All Products Lloyds Register LR22419510TA_02 Bureau Veritas, 02375-I0 Pipes & Fittings RINA -MAC285119XG EuroPipe ABS - 23-2329630-PDA MARINE - R4547 NATO CODIFICATION SYSTEM DNV - TAP0000023-rev5, Sanitary discharge pipes
